Blower Motor Resistor: Service and Repair

Blower Motor Resistor Removal and Installation

Removal
1. Disconnect negative (-) cable from battery.
2. Remove glove box from instrument panel.

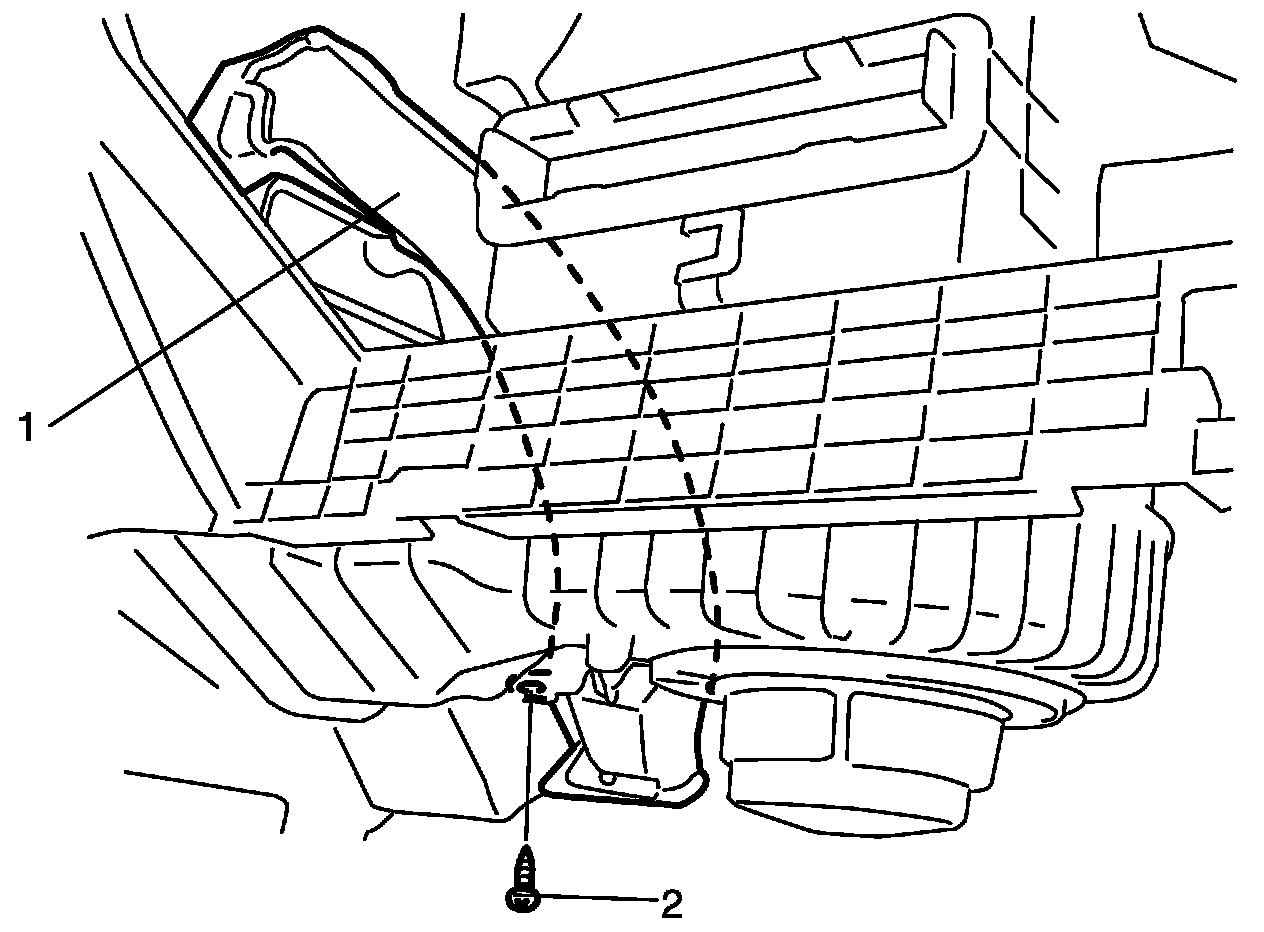

3. Remove passenger side foot duct (1) from HVAC unit by removing screw (2).

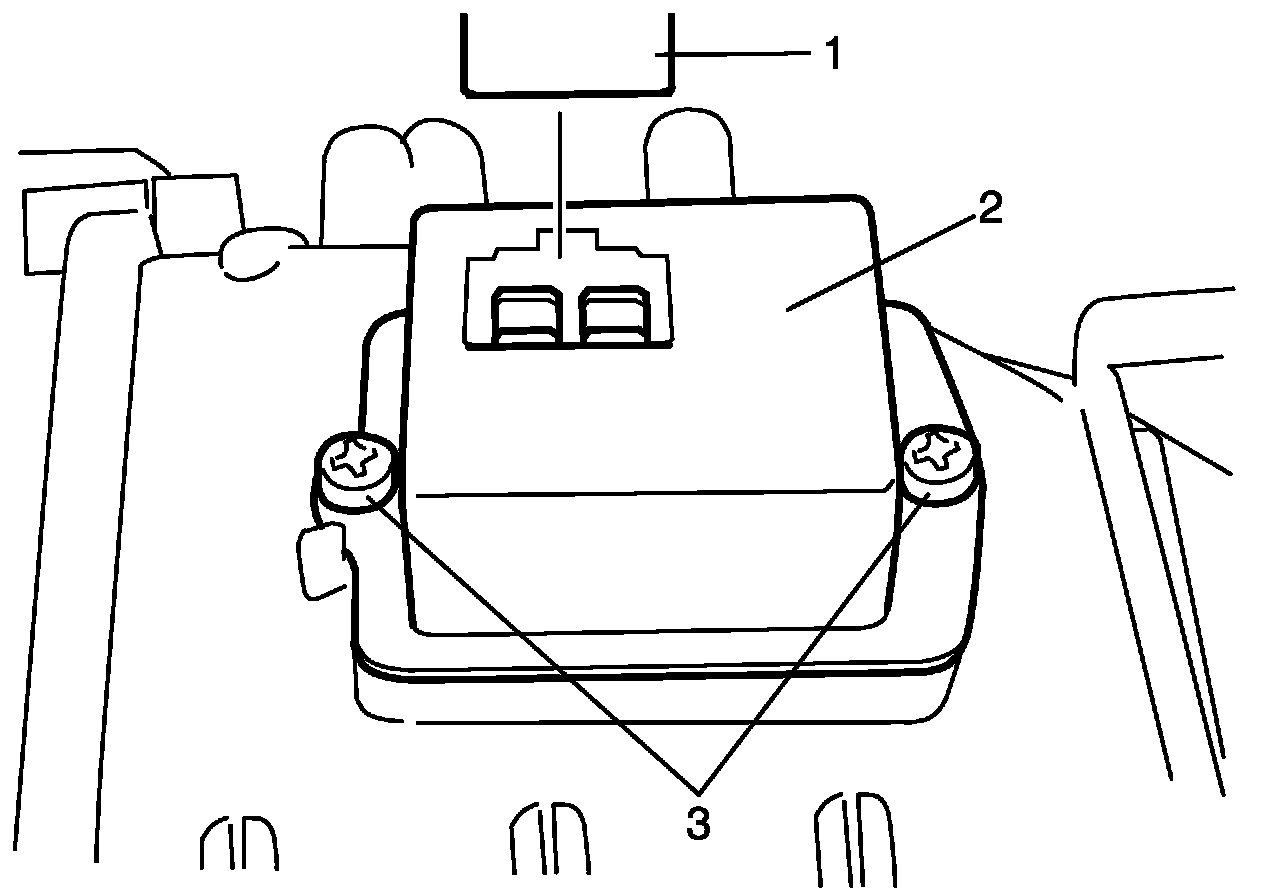

4. Disconnect connector (1) from blower motor resistor (2), and then remove blower motor resistor from HVAC unit by removing screws (3).







Installation
Reverse removal procedure.
