IMT Valve Actuator Removal and Installation
IMT Valve Actuator Removal and InstallationRemoval
1) Disconnect negative (-) cable at battery.
2) Disconnect IMT valve actuator connector.

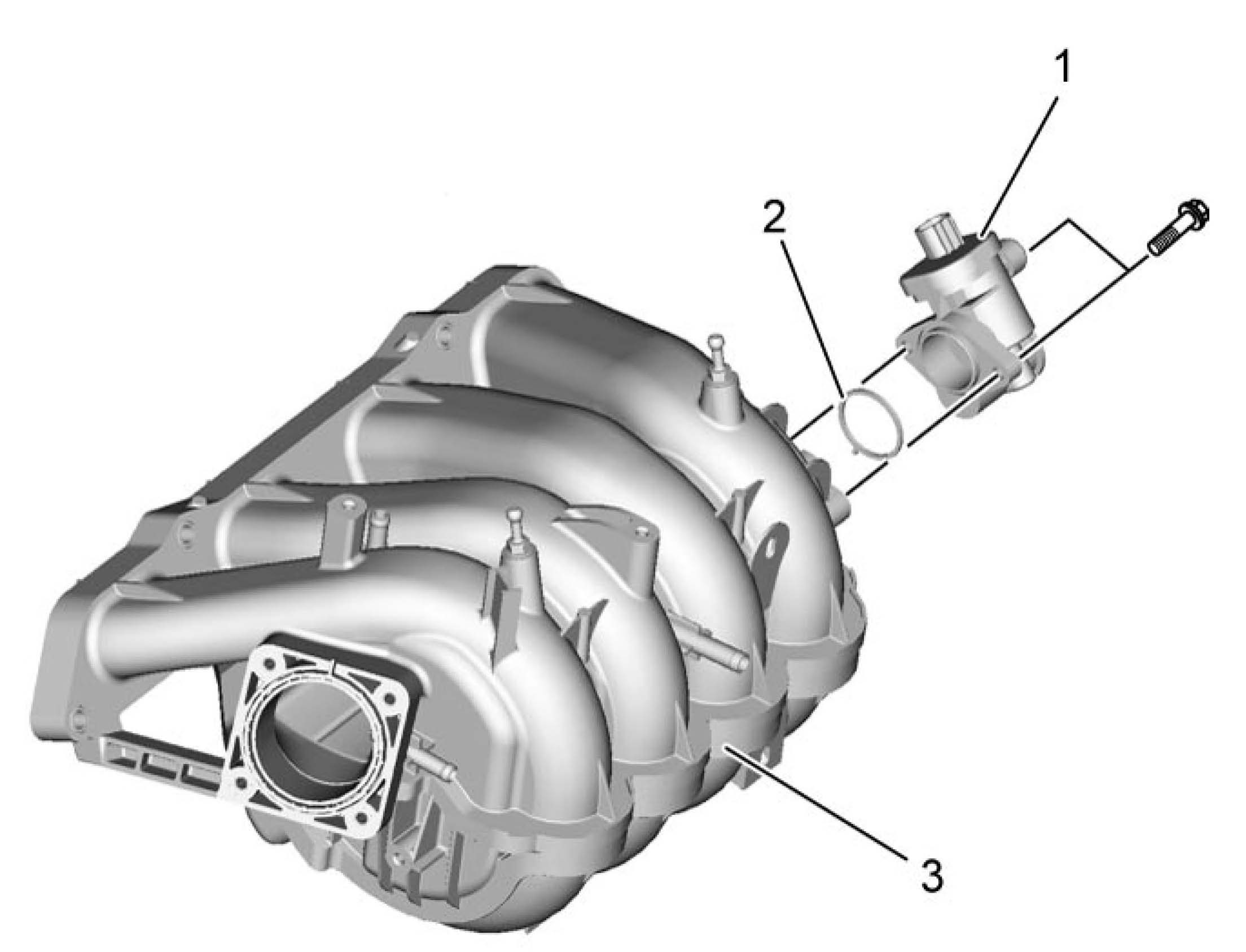

3) Remove IMT valve actuator (1) and IMT valve actuator gasket (2) from intake manifold (3).
Installation
Reference: IMT Valve Actuator Inspection
Reverse removal procedure noting the followings.
^ Use new gasket.
^ Check that IMT valve operates properly after installing IMT valve actuator to intake manifold.
