Sensor Plate Inspection

Sensor Plate Inspection
Reference: Main Bearings, Crankshaft and Cylinder Block Removal and Installation

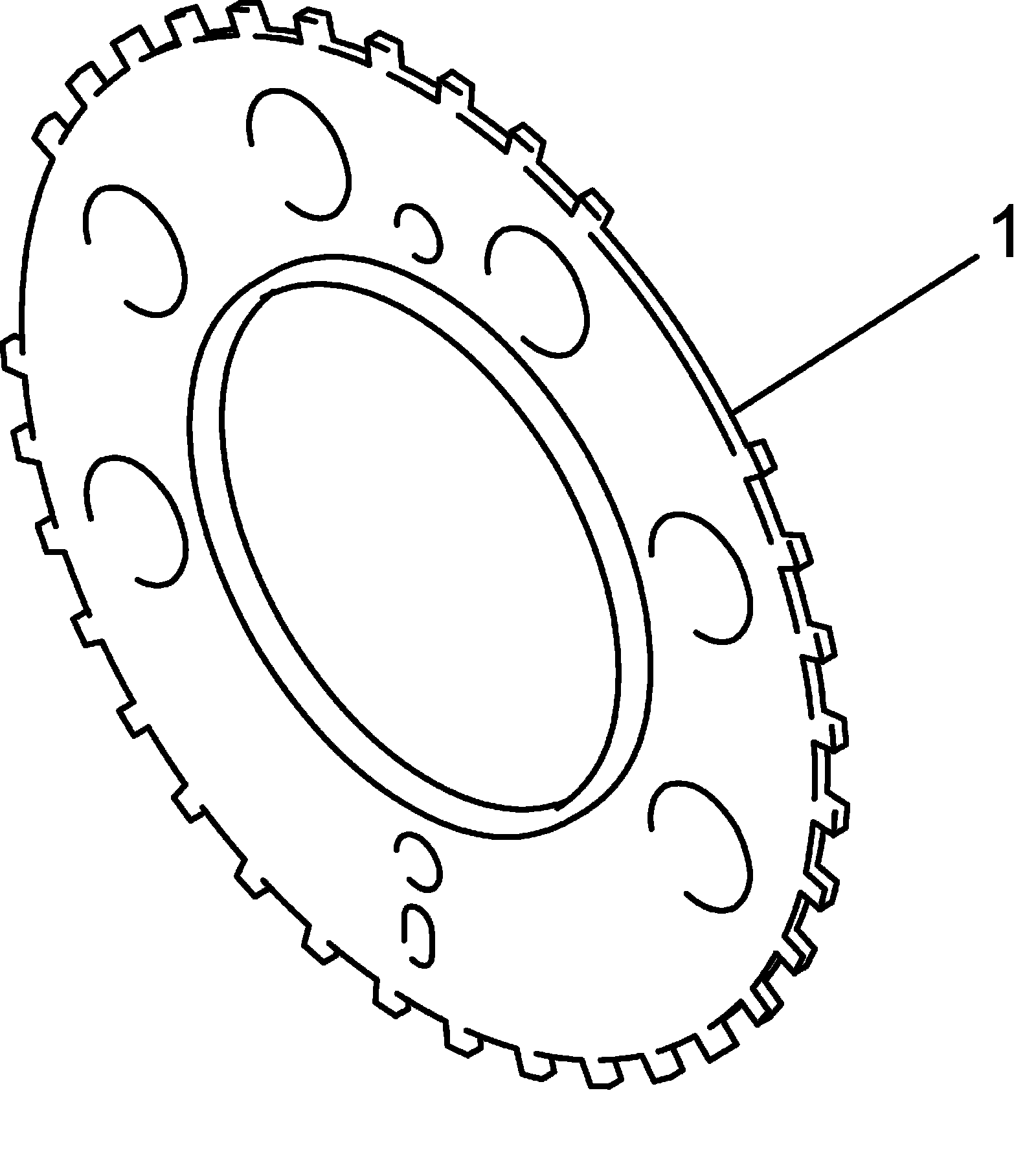

Check sensor plate (1) for crack or damage.
If defective condition is found, replace it.
