Home >> Suzuki >> 2010 >> SX4 2WD L4-2.0L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Block Assembly >> Service and Repair >> Piston, Piston Ring and Connecting Rod Components

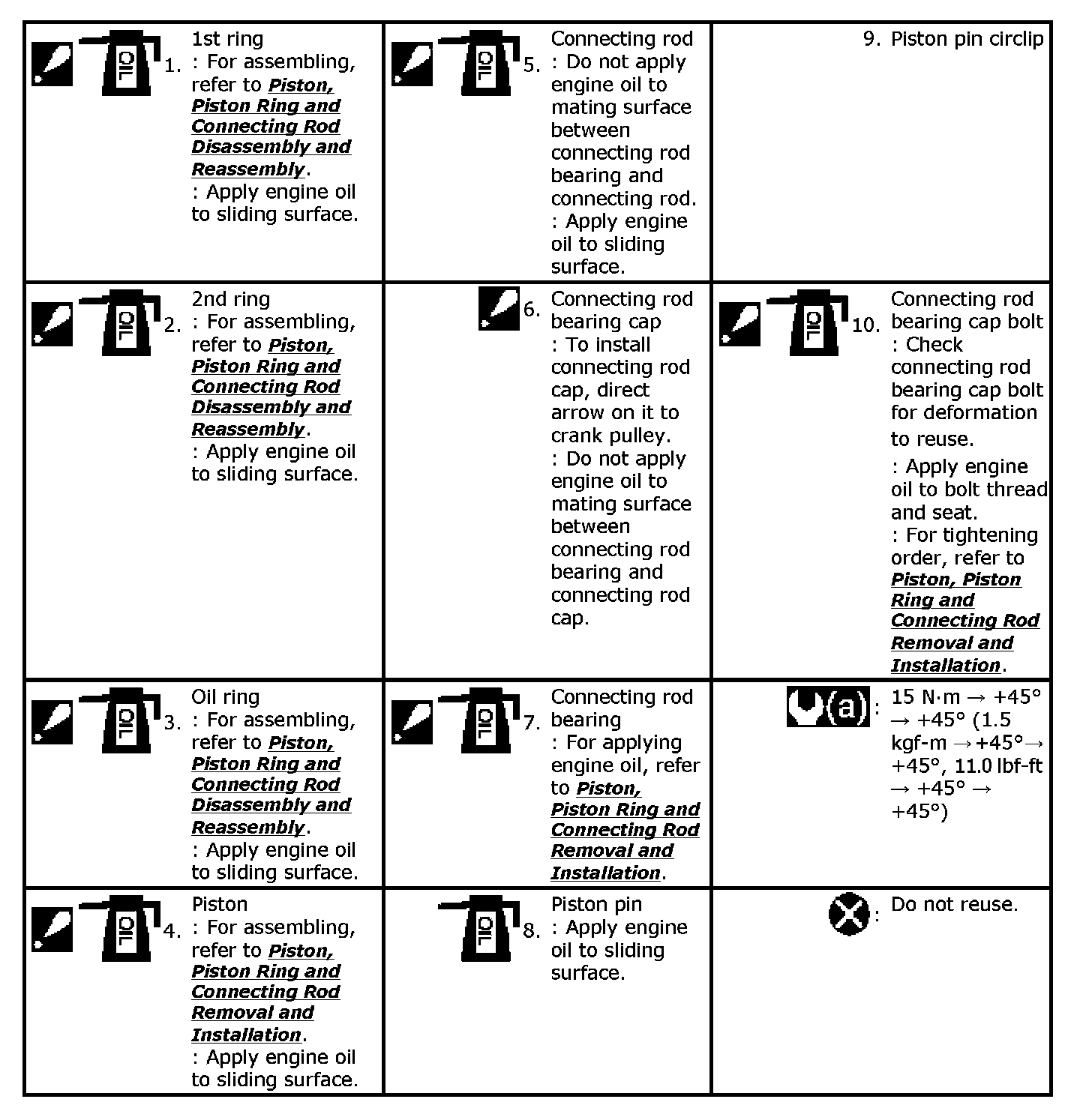

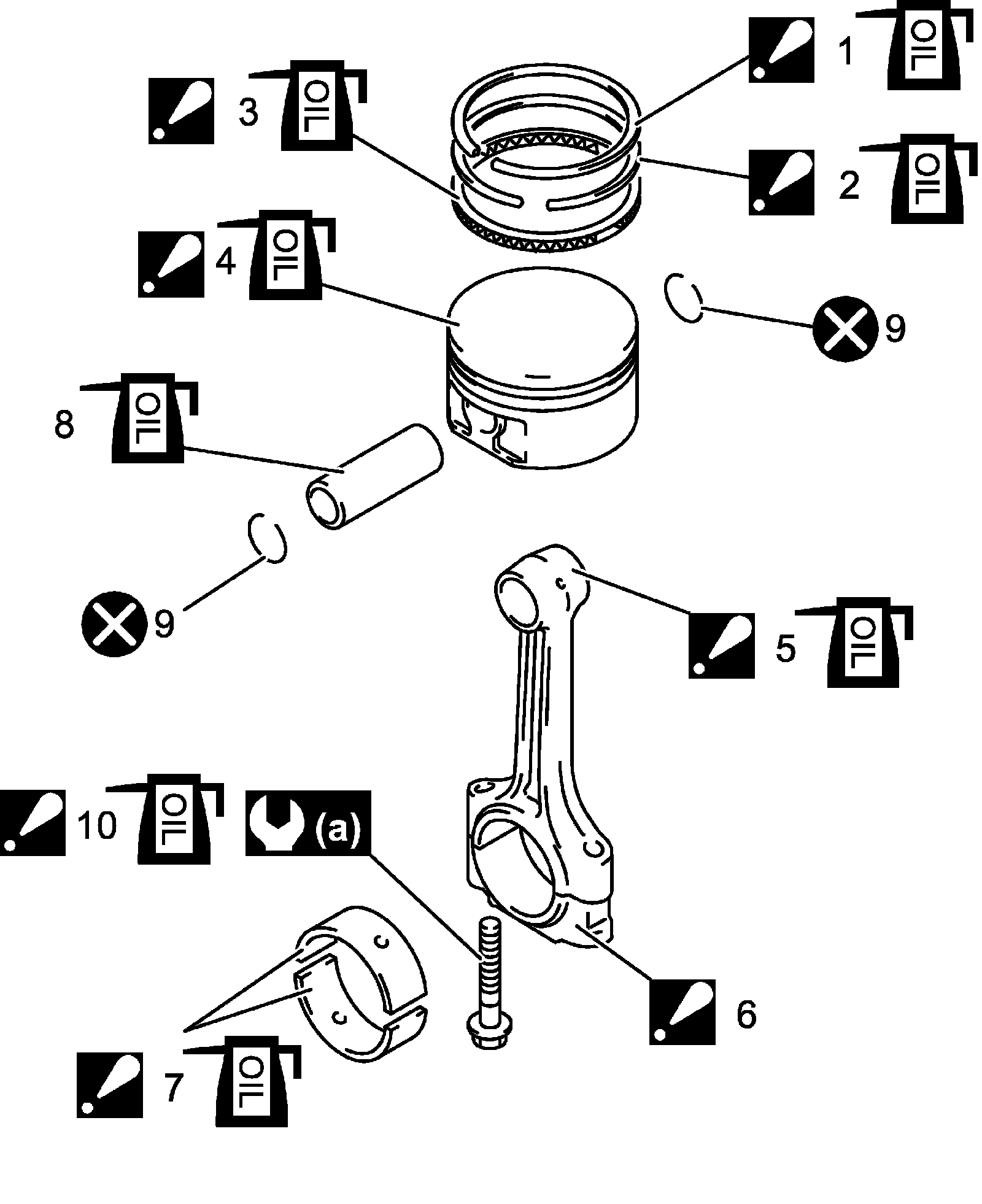

Piston, Piston Ring and Connecting Rod Components

Piston, Piston Ring and Connecting Rod Components
