Oil Pump Chain Inspection

Oil Pump Chain Inspection

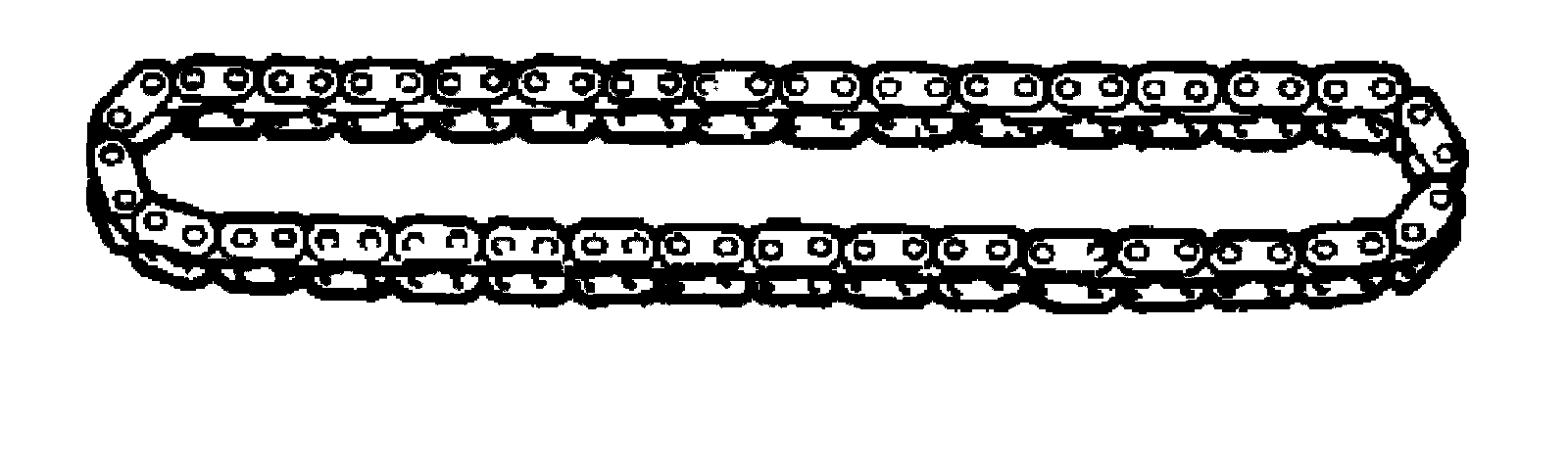

Oil Pump Chain
Check oil pump chain for wear or any damage.
If malcondition is found, replace oil pump chain.
