Home >> Suzuki >> 2010 >> SX4 2WD L4-2.0L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Block Assembly >> Service and Repair >> Main Bearing, Crankshaft and Cylinder Block Components

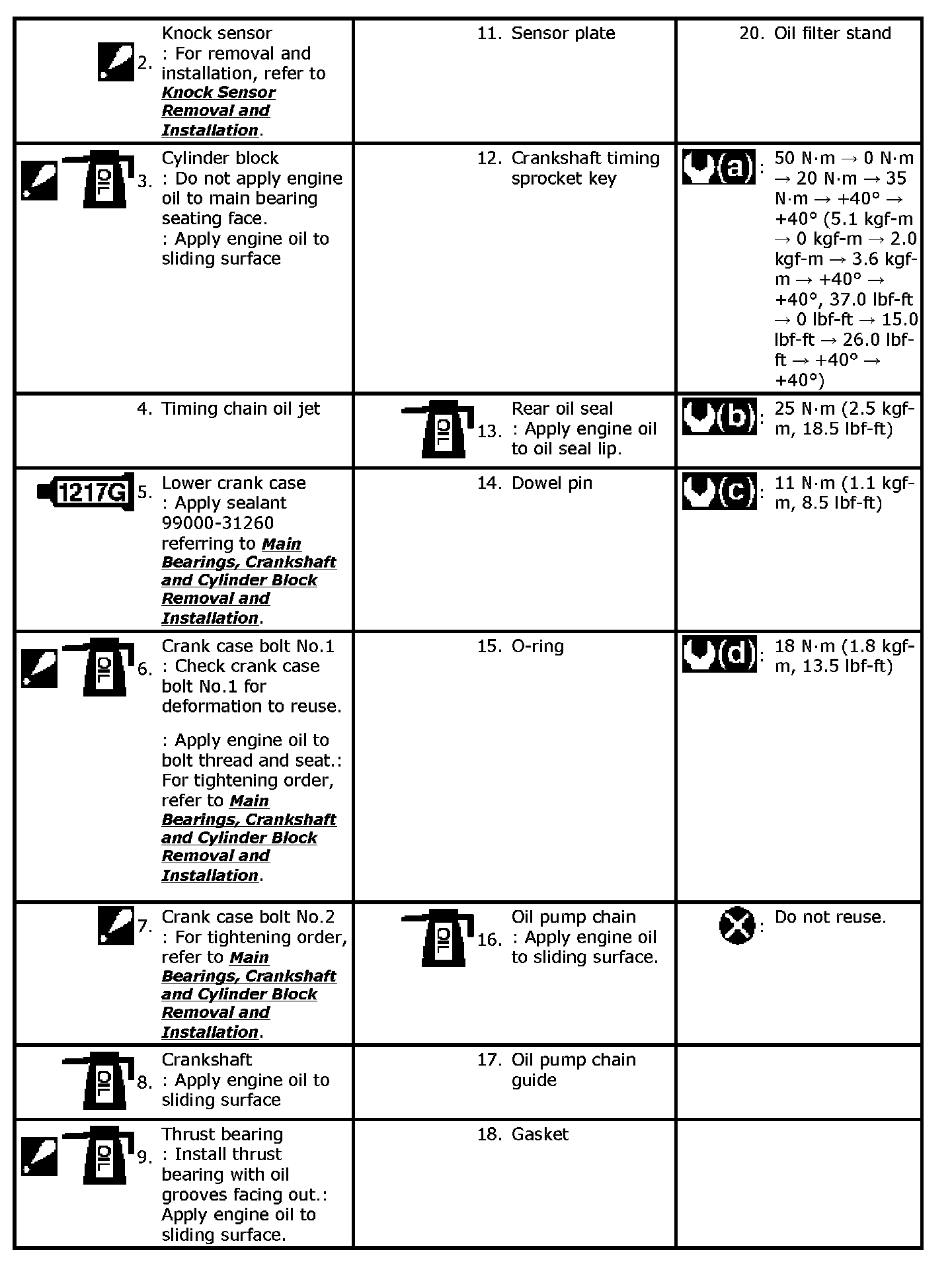

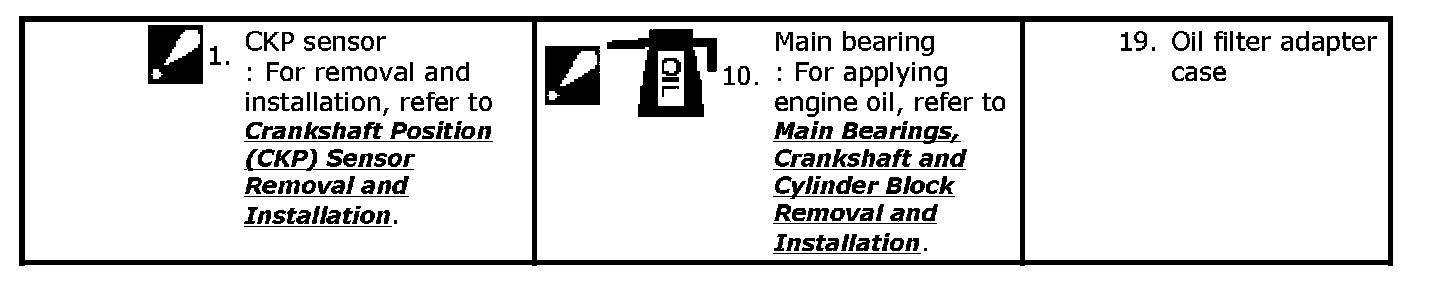

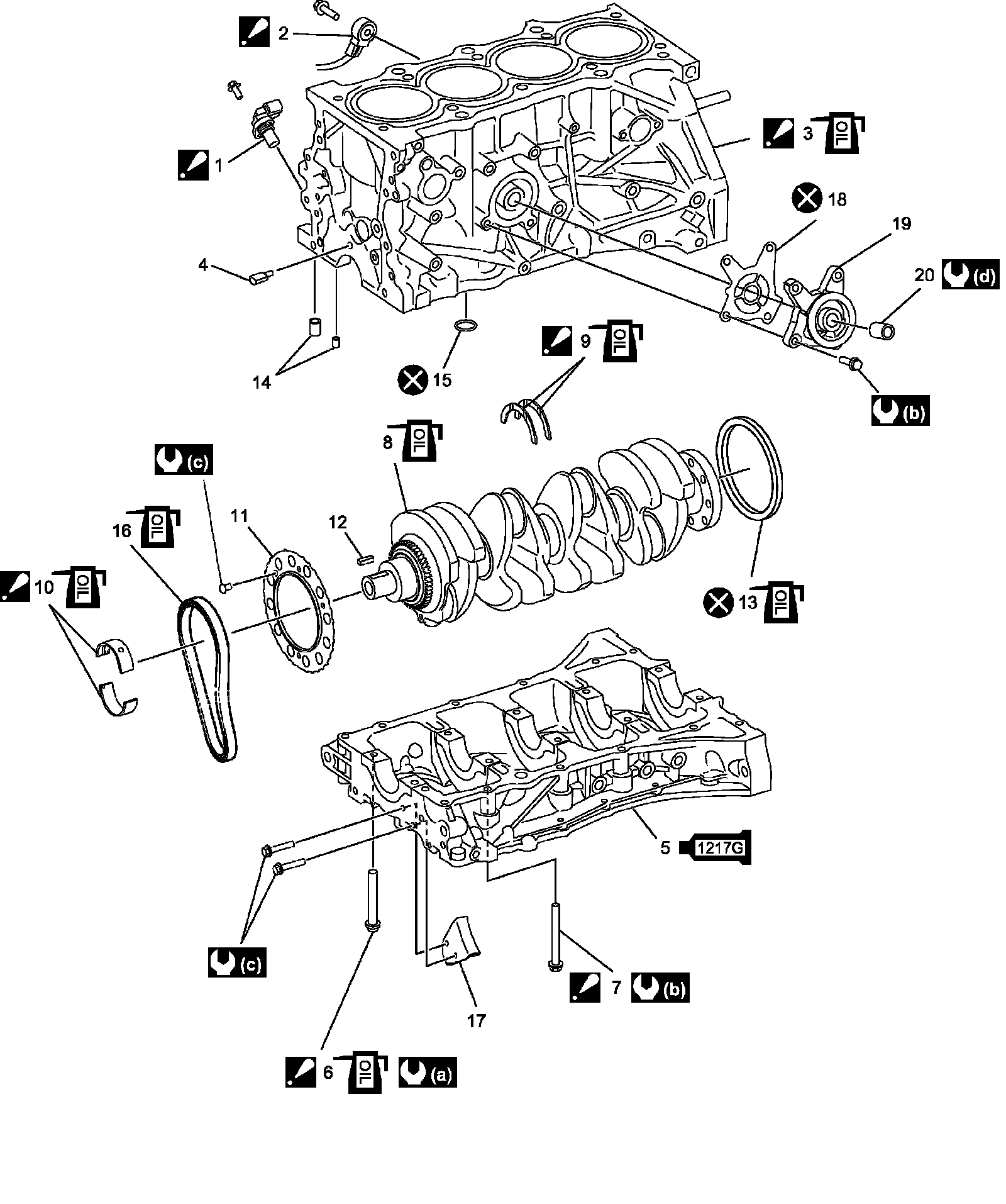

Main Bearing, Crankshaft and Cylinder Block Components

Main Bearing, Crankshaft and Cylinder Block Components
