Overhaul

Radiator Cooling Fan Disassembly and Reassembly
Reference: Radiator Cooling Fan Assembly Removal and Installation

Disassembly

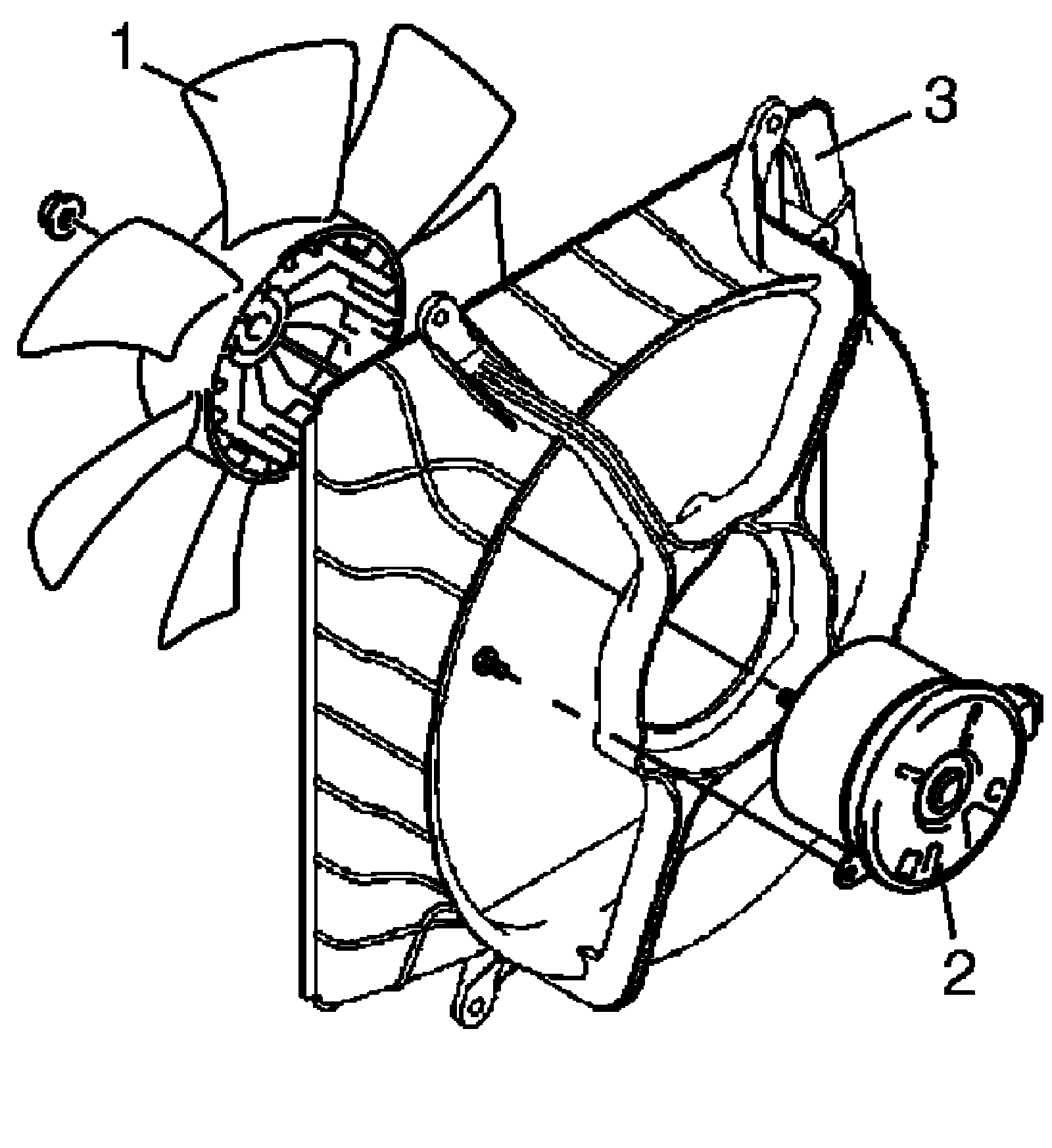

1) Remove fan (1) from cooling fan motor (2).
2) Remove fan motor (2) from cooling fan guide (3).





Reassembly
Reverse disassembly procedures for reassembly.

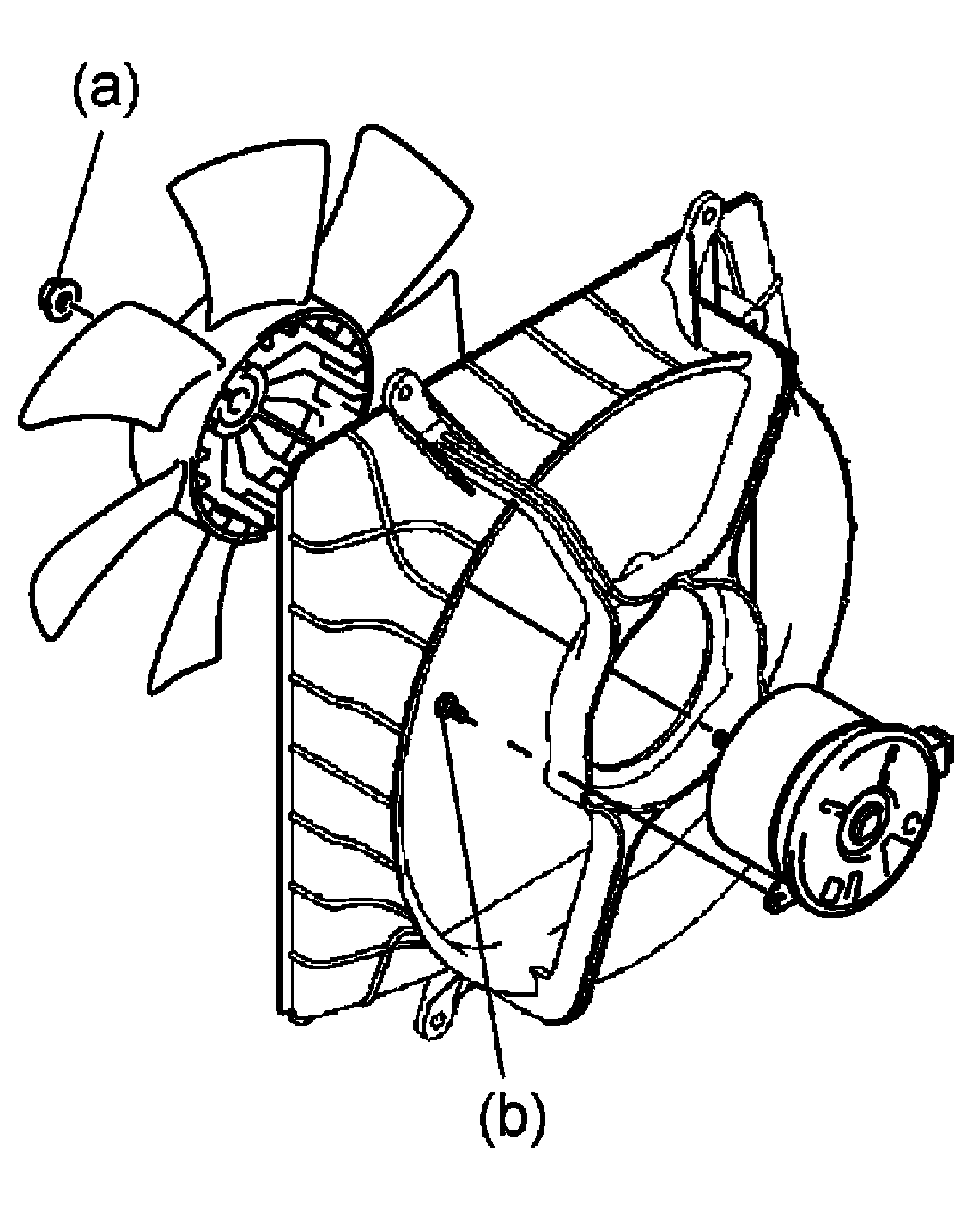

Tightening torque
Fan nut (a): 6 Nm (0.61 kg-m, 4.5 lbf-ft)
Radiator cooling fan motor screw (b): 4 Nm (0.41 kg-m, 3.0 lbf-ft)
