Hydraulic Control Assembly - Antilock Brakes

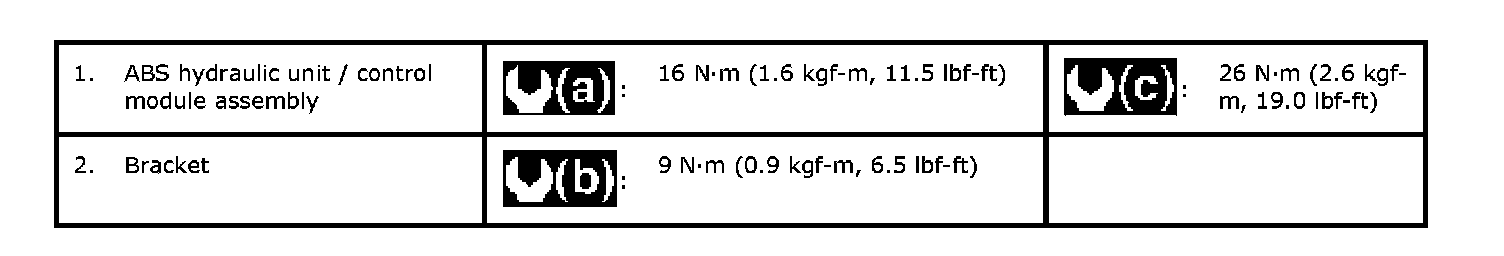

ABS Hydraulic Unit / Control Module Assembly Components

CAUTION:
Never disassemble ABS hydraulic unit / control module assembly, loosen blind plug or remove motor. Performing any of these prohibited services will affect original performance of ABS hydraulic unit / control module assembly.
