Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Steering
>>

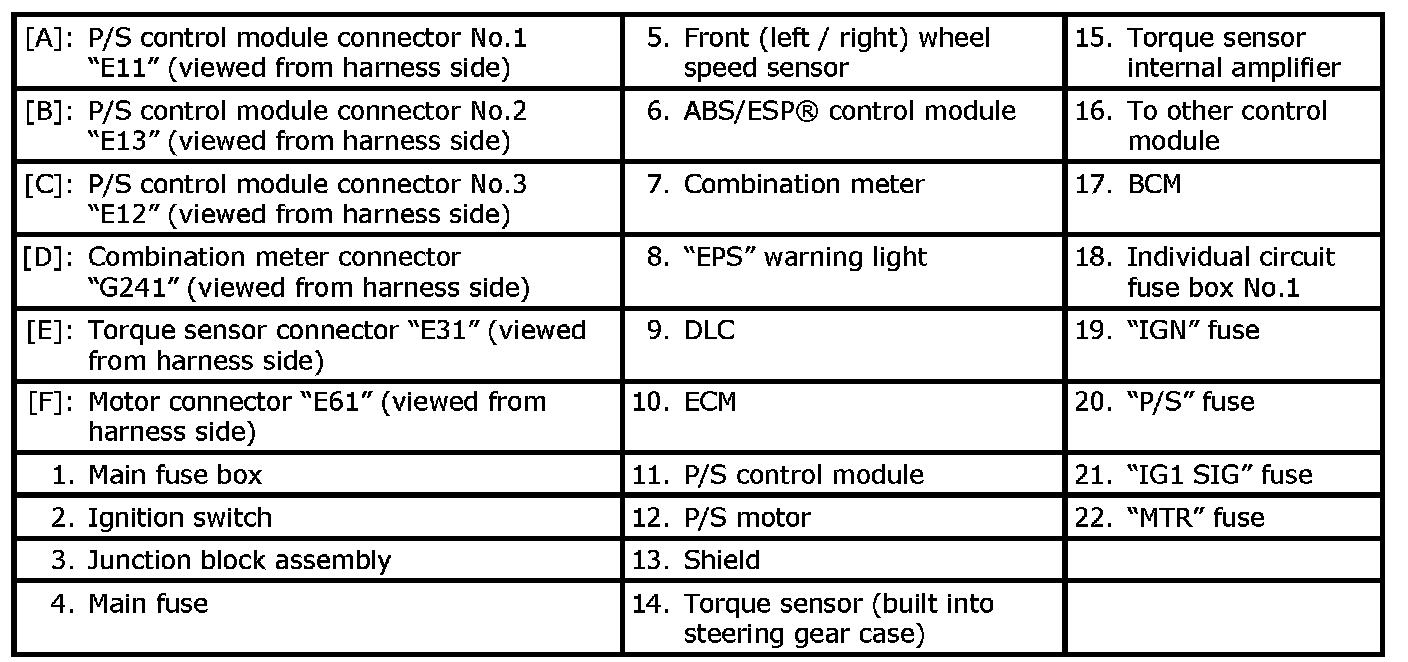

EPS System Wiring Circuit Diagram

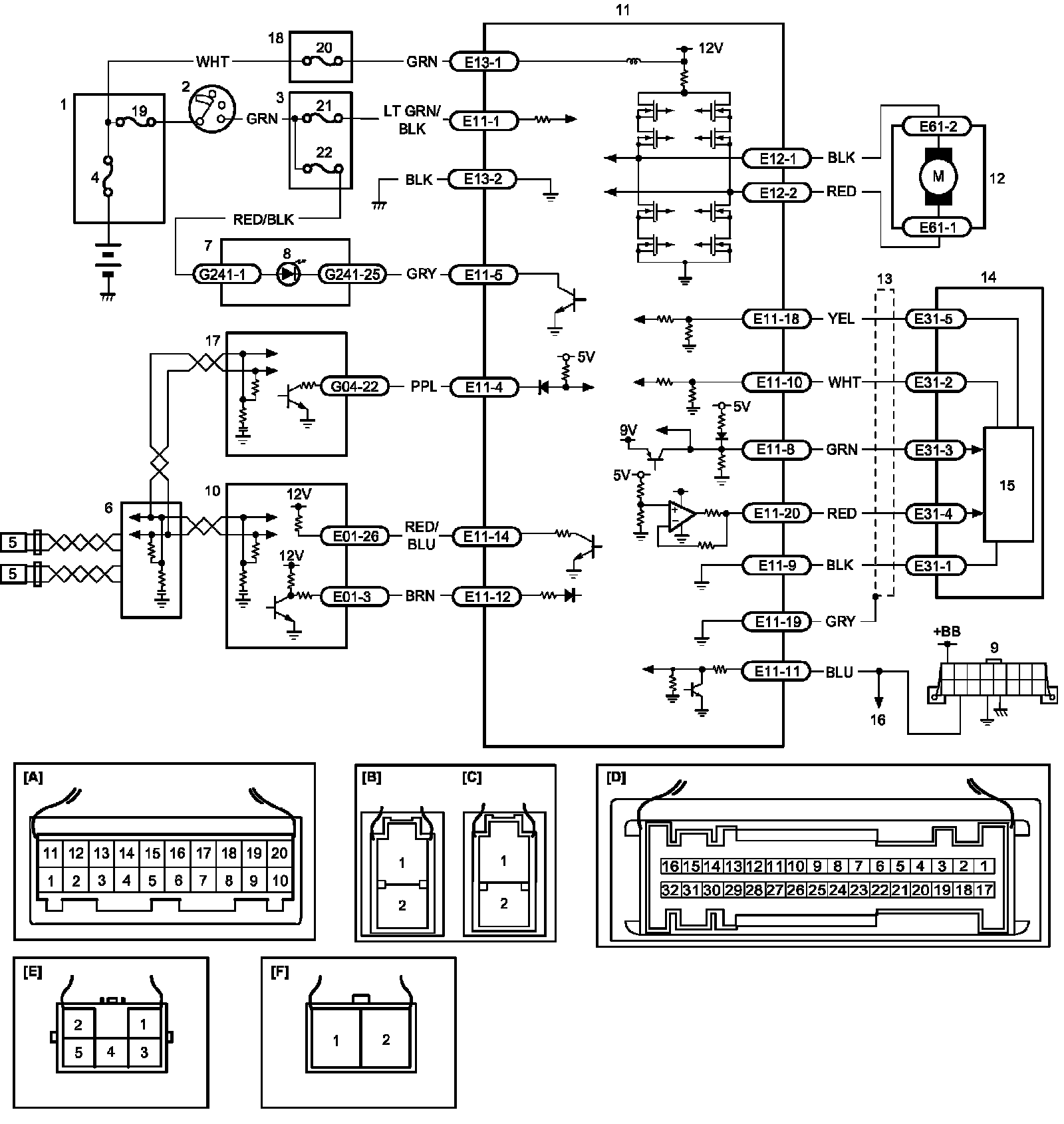

EPS System Wiring Circuit Diagram
EPS System Wiring Circuit Diagram

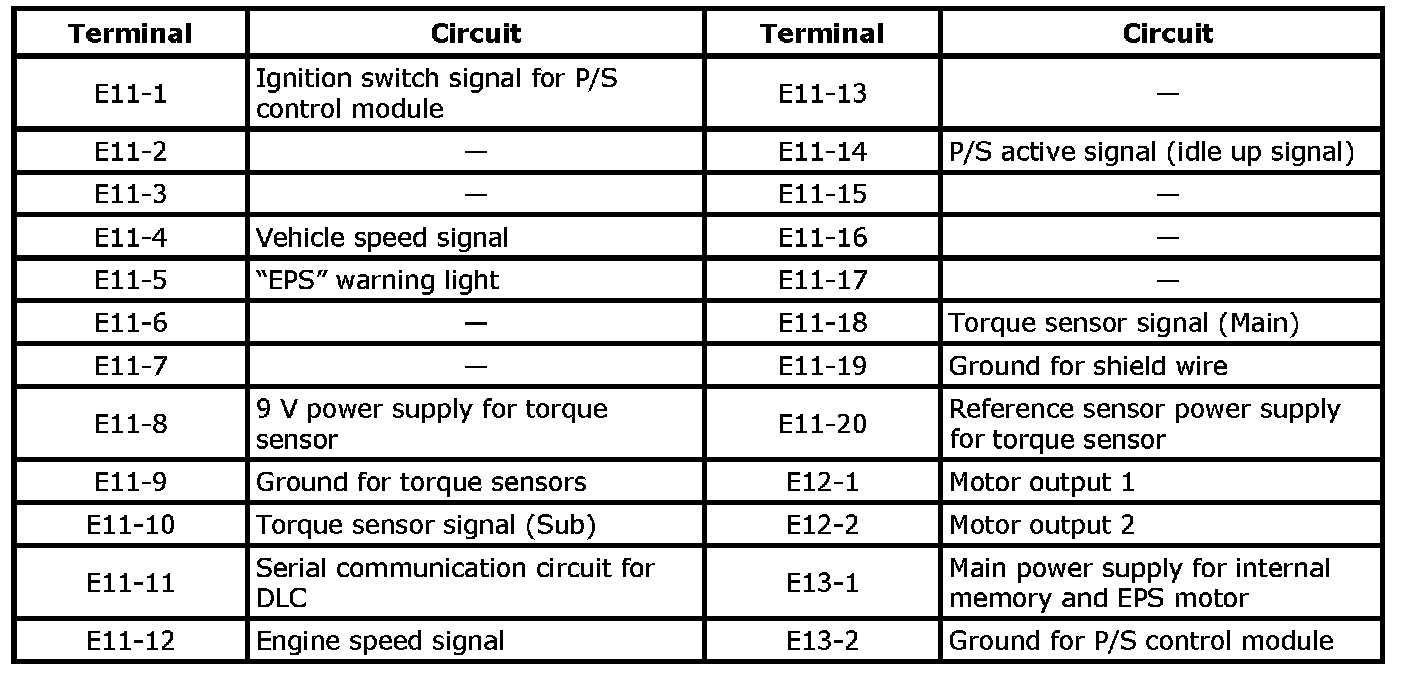

Terminal Arrangement of P/S Control Module Coupler (Viewed from Harness Side)
