Home >> Suzuki >> 2010 >> SX4 2WD L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Ignition System >> Ignition System Wiring Circuit Diagram

Ignition System Wiring Circuit Diagram

Ignition System Wiring Circuit Diagram

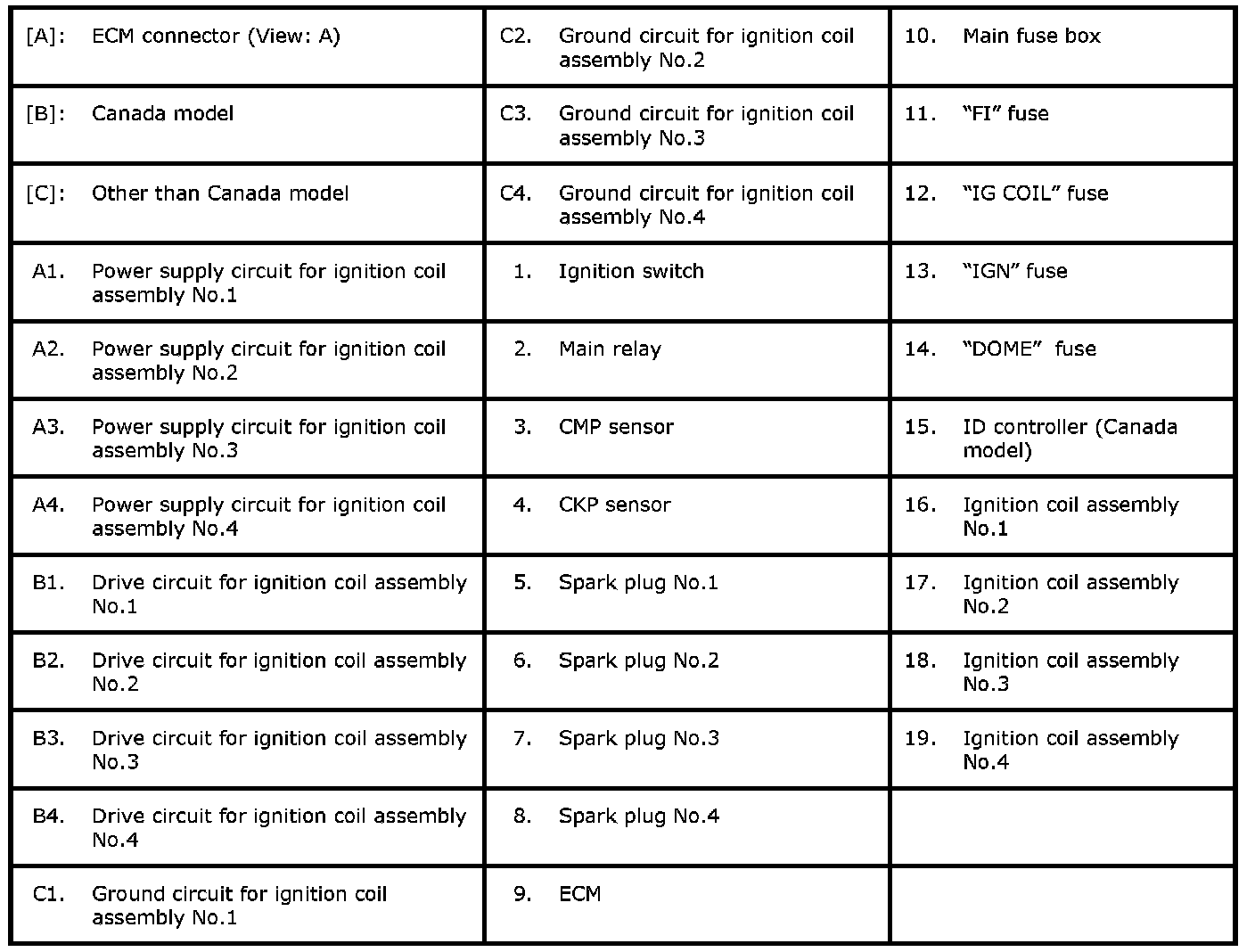

Ignition System Wiring Circuit Diagram (Part 1):

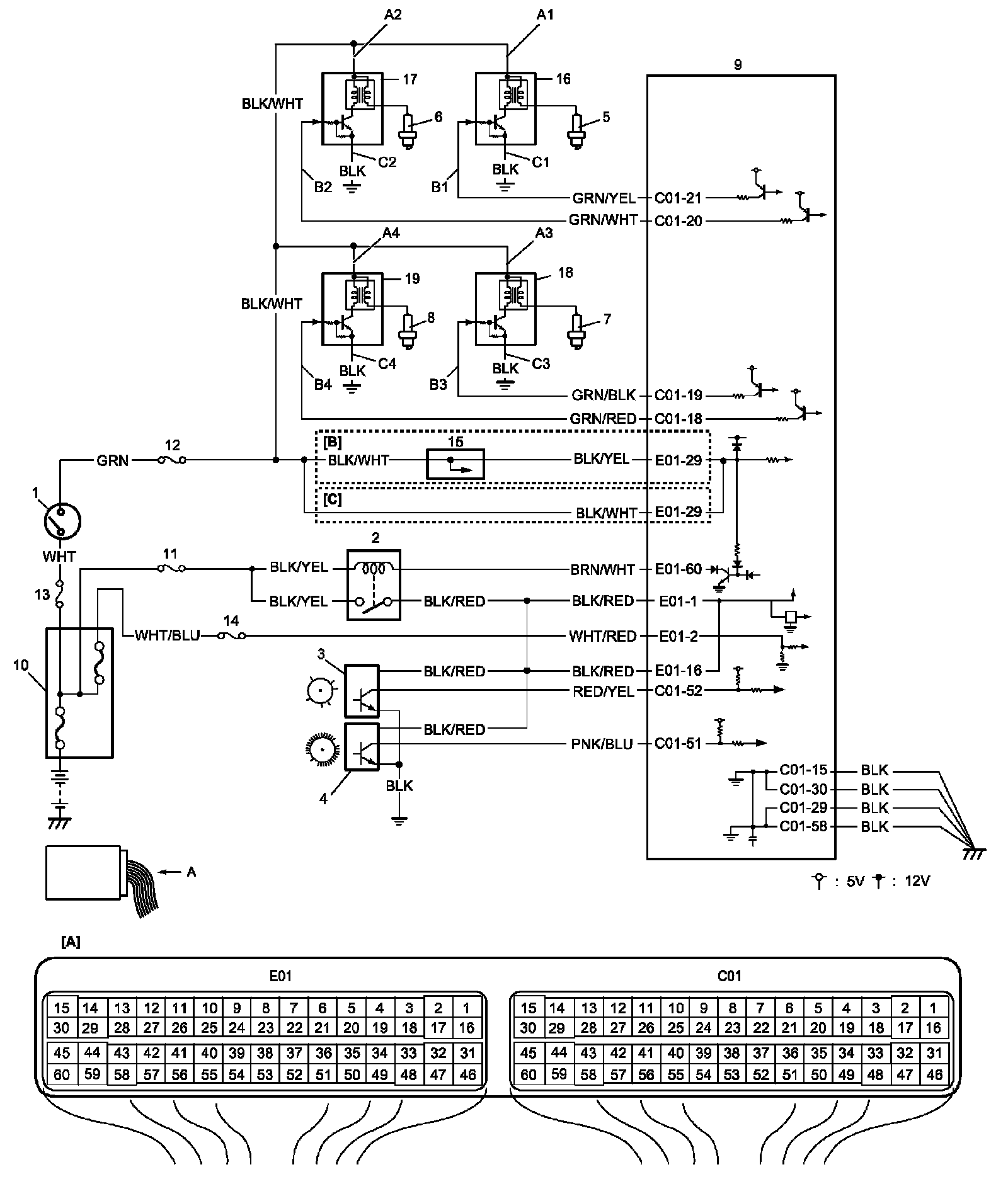

Ignition System Wiring Circuit Diagram (Part 2):
