Fuel Injector

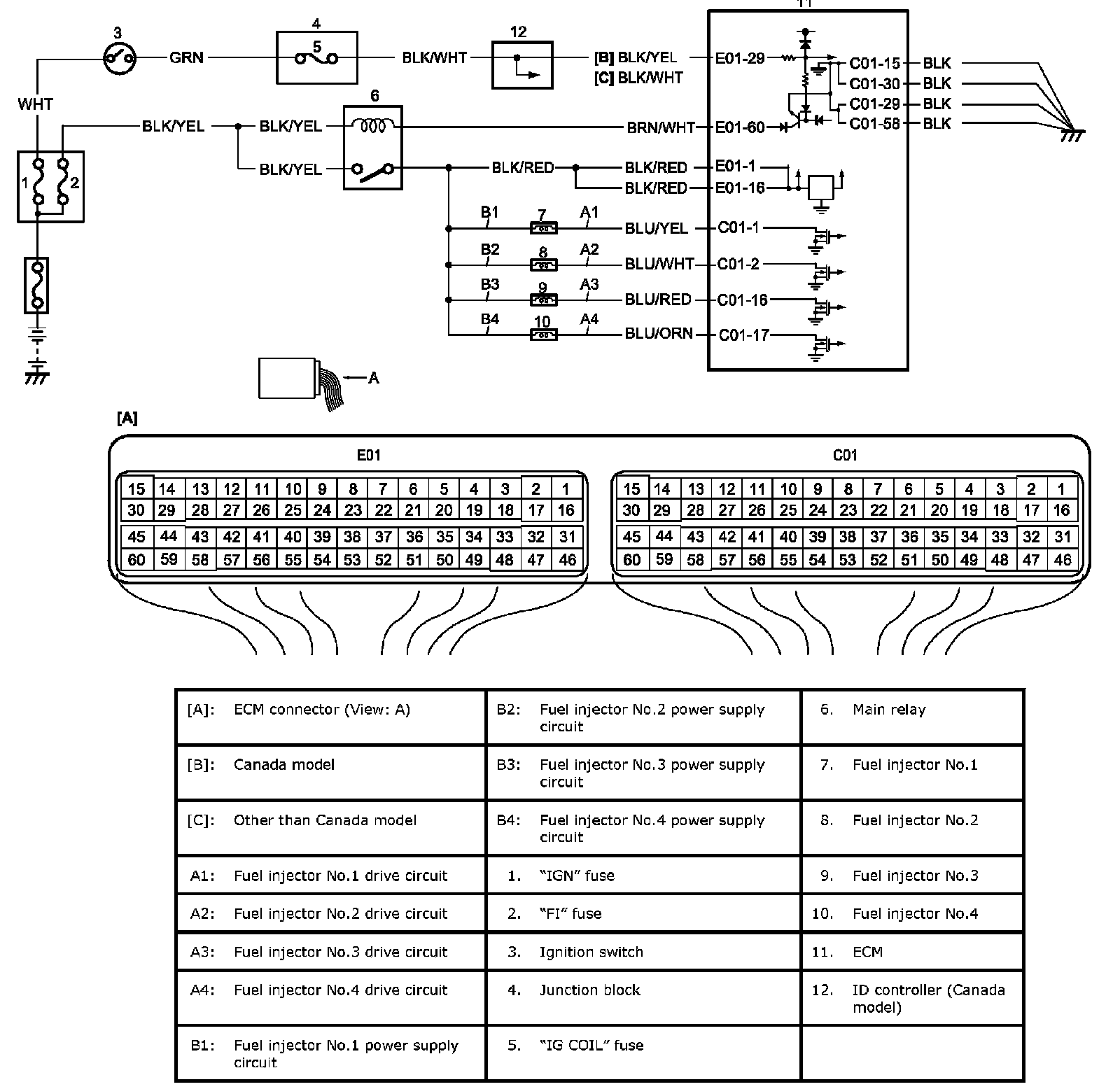

Fuel Injector Control System Circuit Diagram

NOTE: For identification of each cylinder, refer to Precautions for Identification of Cylinder.

Wiring Diagram

Wiring Diagram:
