Sedan Model

L: Floor Harness, Seat Sensor (R) Wire, Seat Sensor (L) Wire / M: Trunk Room Harness / Q: Side-Air Bag (Driver Side) Harness, Side-Air Bag (Passenger Side) Harness / R: Fuel Pump Wire (Sedan Model):

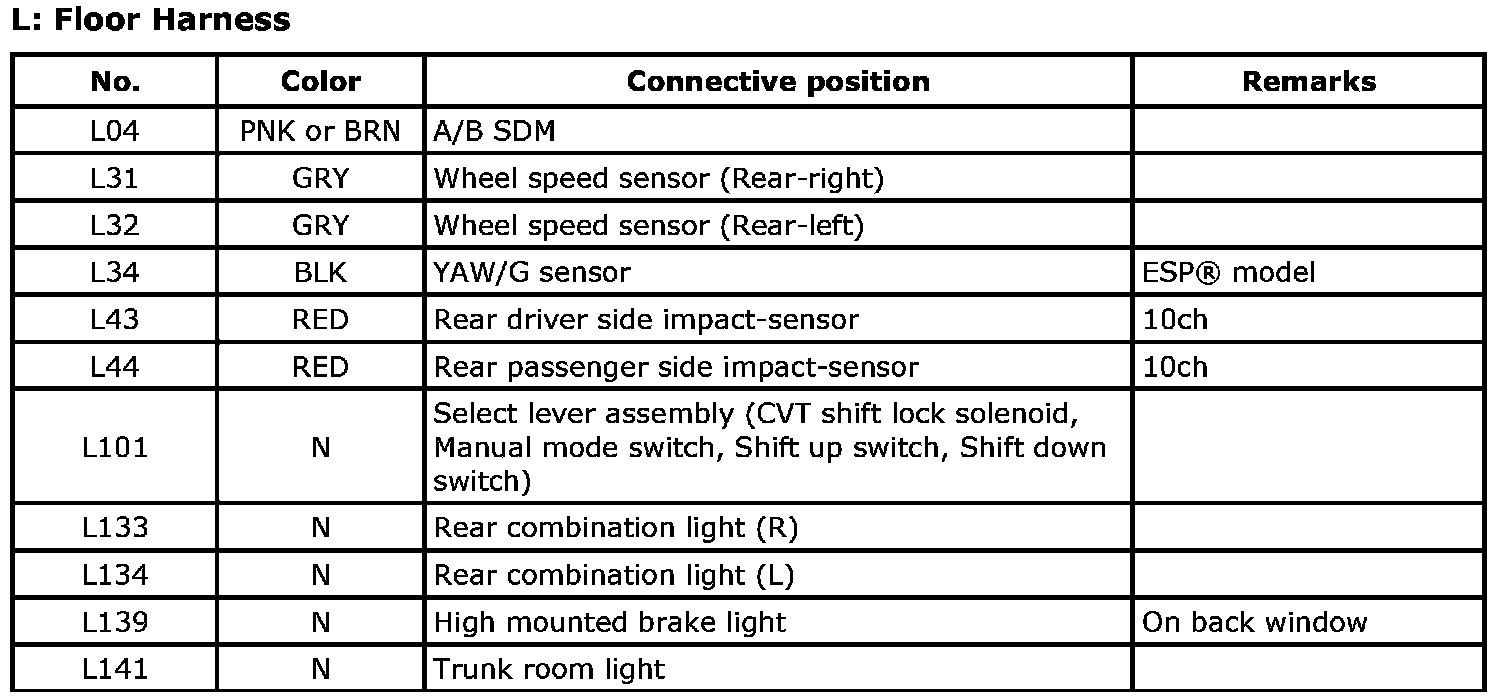

L: Floor Harness Index (Part 1):

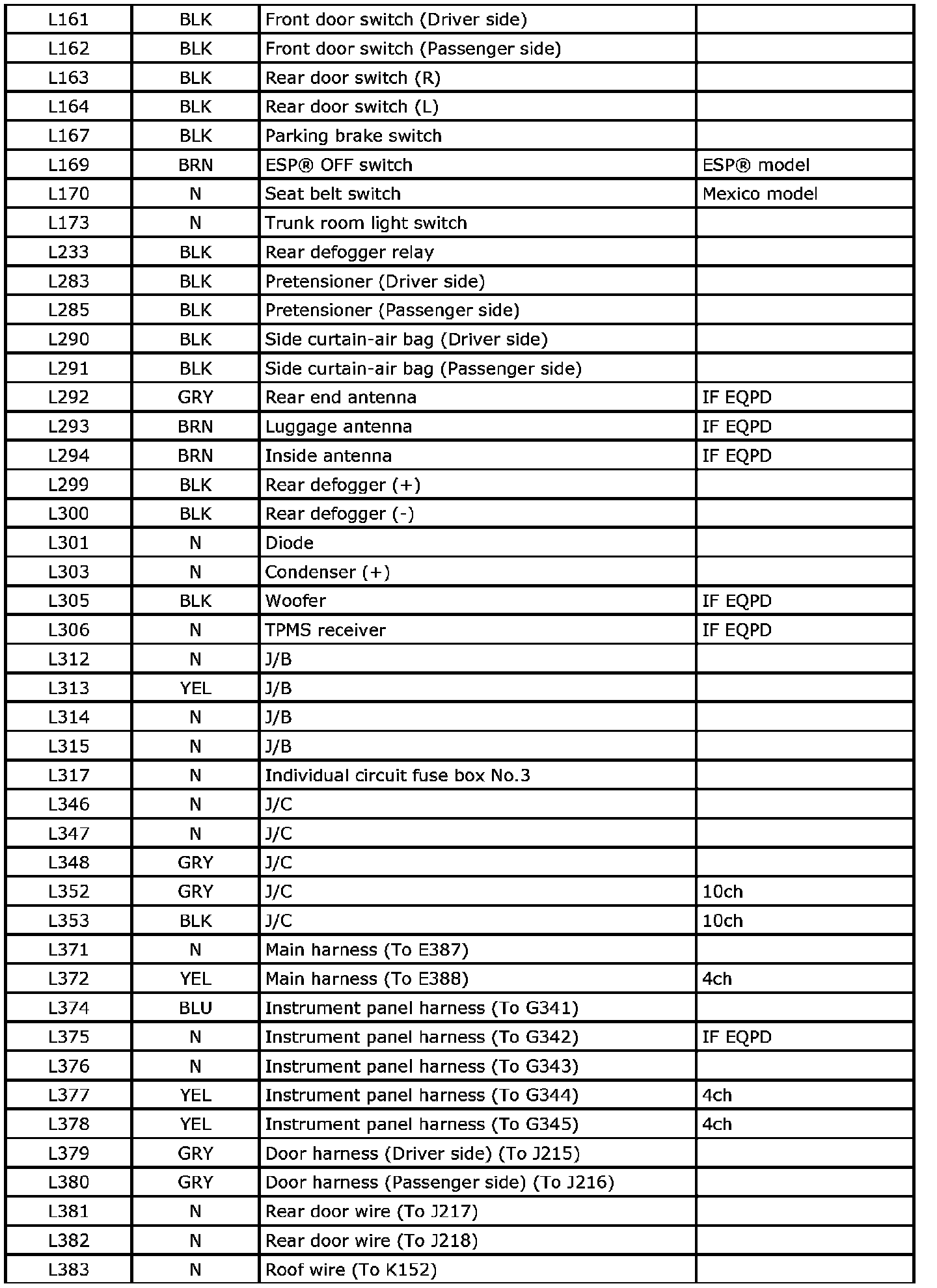

L: Floor Harness Index (Part 2):

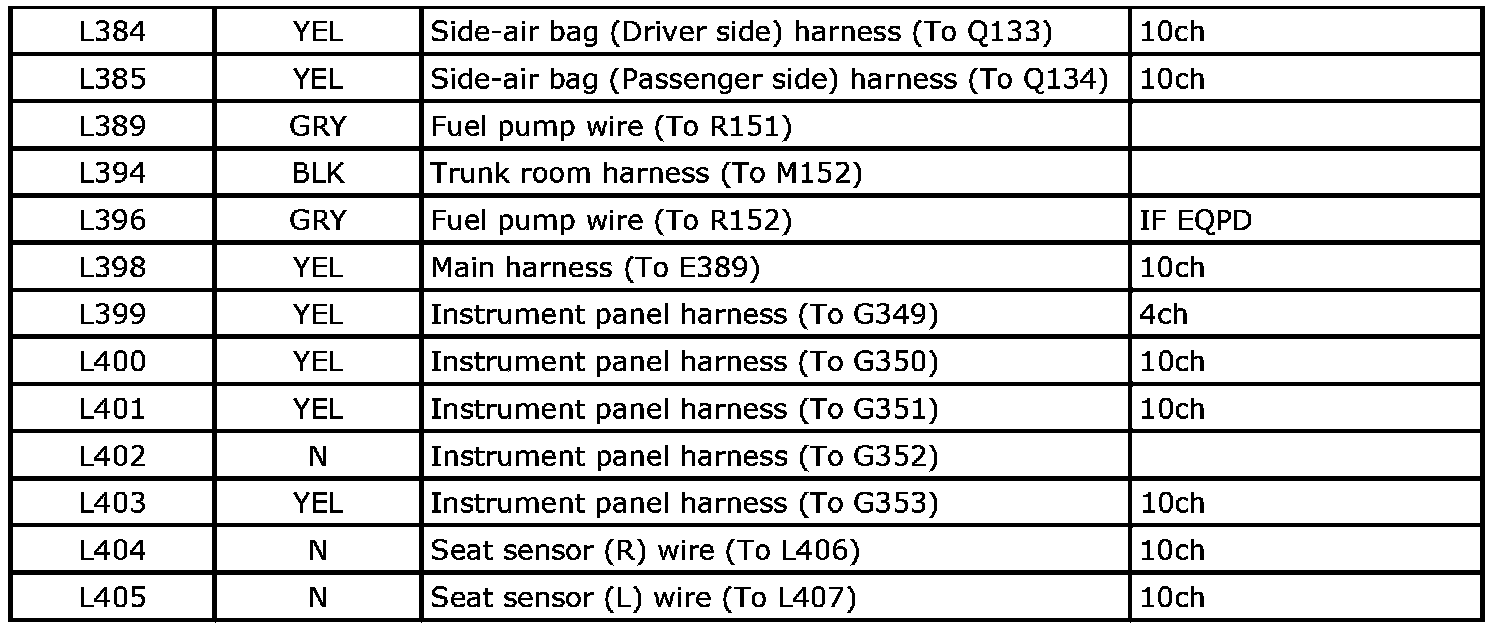

L: Floor Harness Index (Part 3):

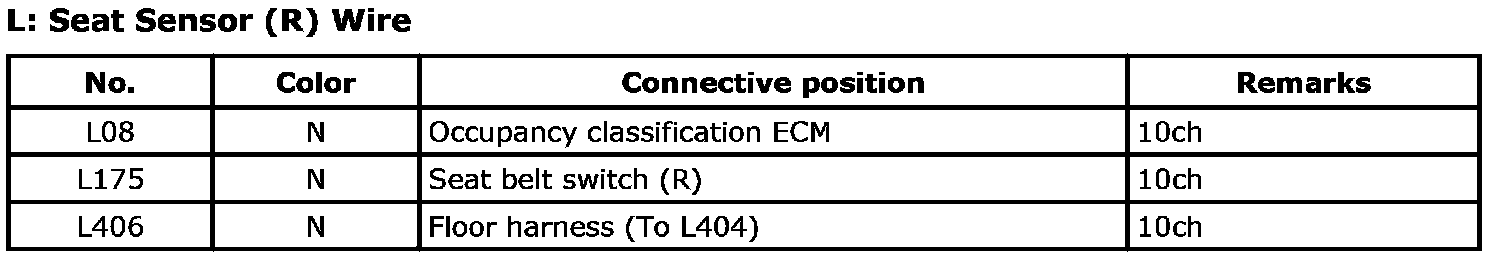

L: Seat Sensor (R) Wire Index:

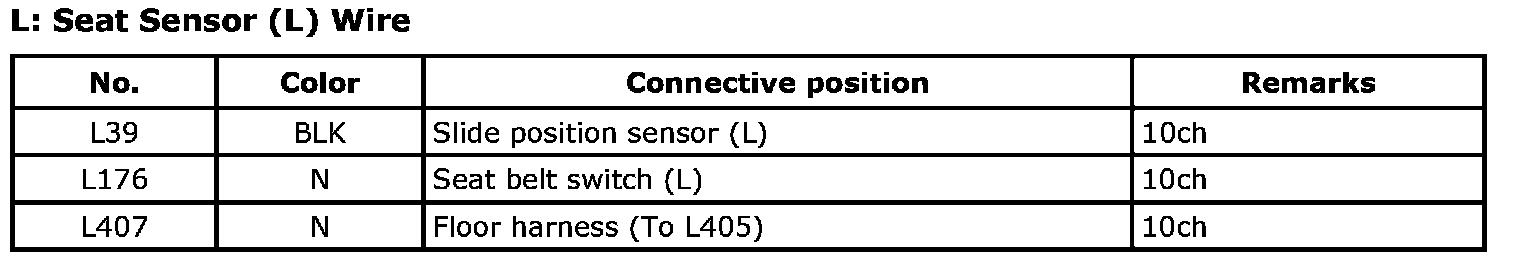

L: Seat Sensor (L) Wire Index:
