ESP(R) Warning Light Comes On Steady

ESP(R) Warning Light Comes ON Steady

Wiring Diagram
Refer to "Wiring Diagram" under ESP(R) Warning Light Does Not Come ON at Ignition Switch ON. ESP(R) Warning Light Does Not Come On at Ignition Switch On

Circuit Description
Refer to "Circuit Description" under ESP(R) Warning Light Does Not Come ON at Ignition Switch ON. ESP(R) Warning Light Does Not Come On at Ignition Switch On

Troubleshooting

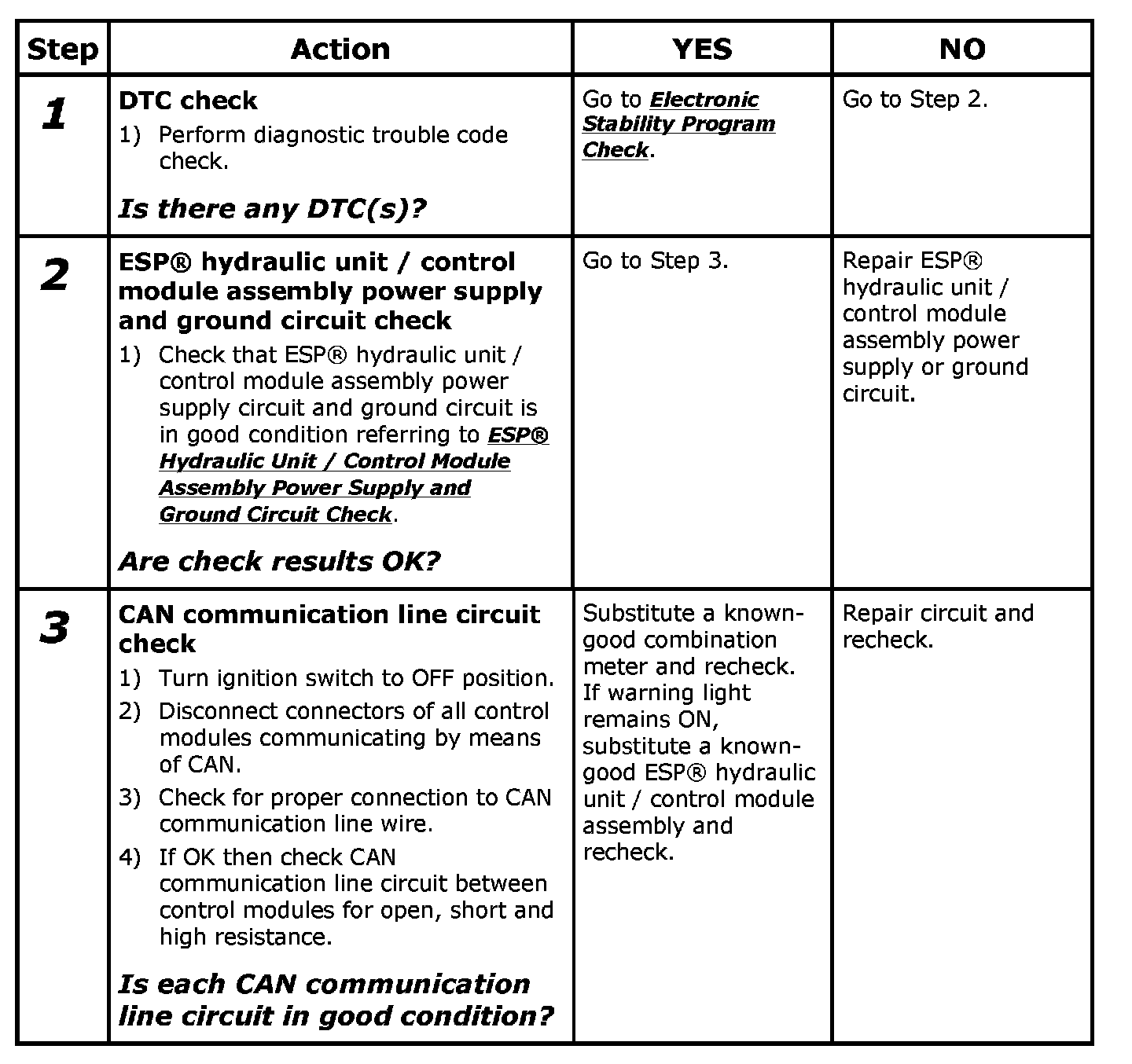

Step 1-3:
