Serial Data Link Circuit Check

Serial Data Link Circuit Check

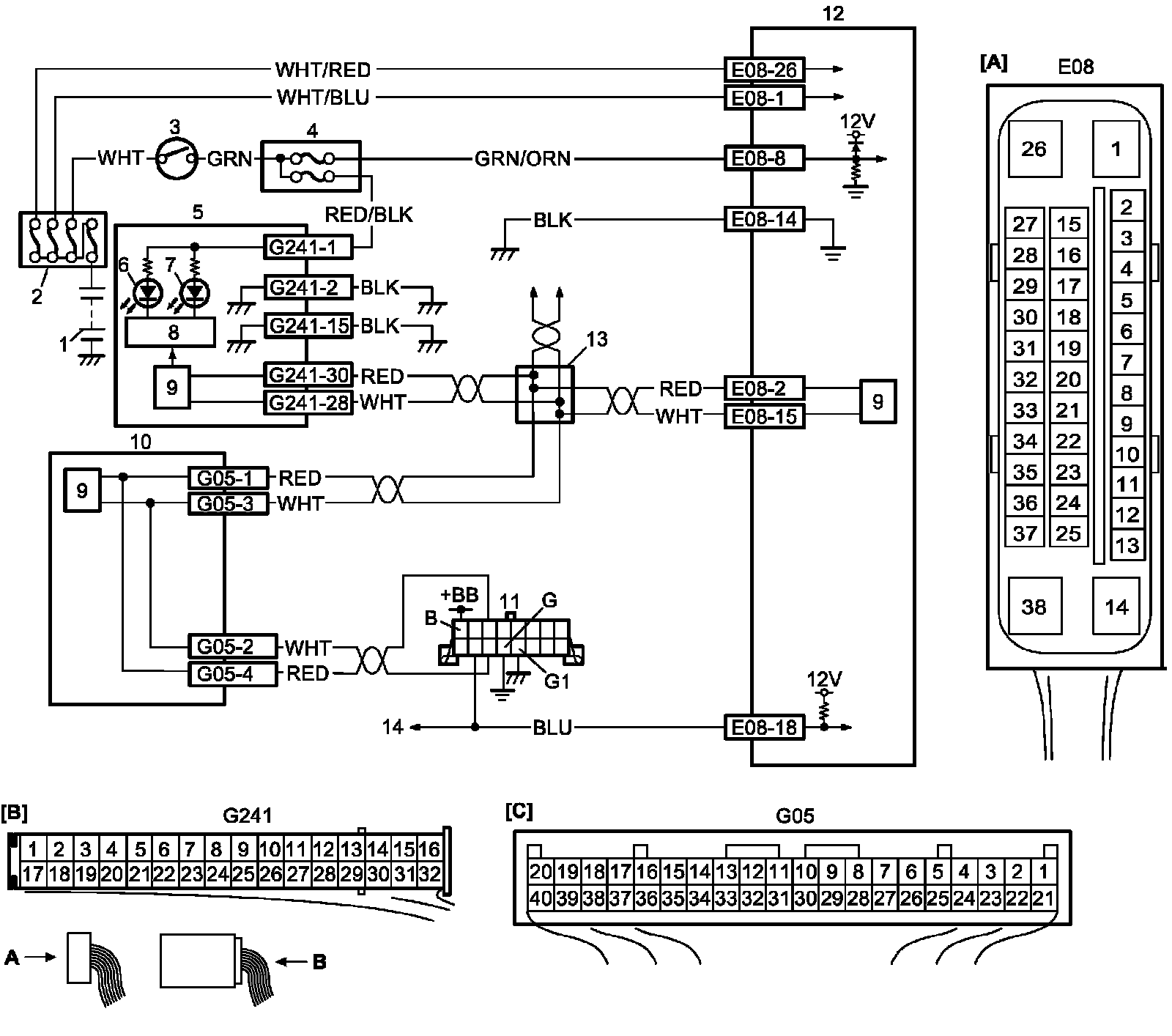

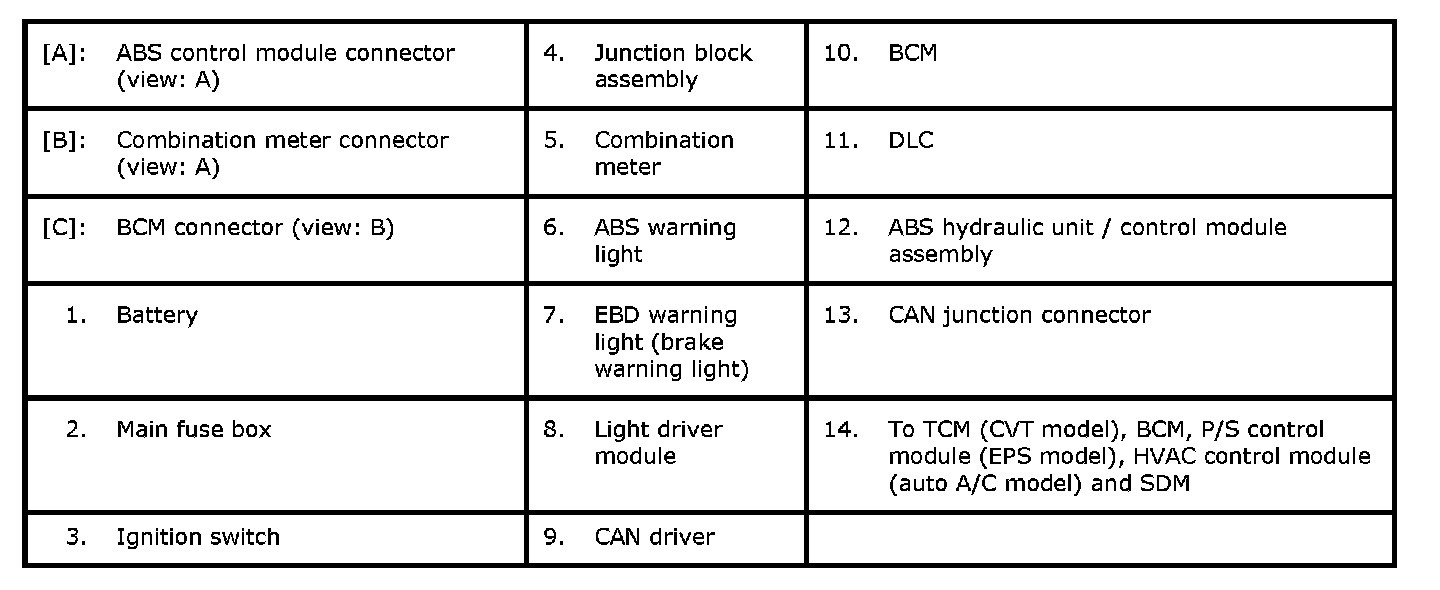

Wiring Diagram








Trouble shooting

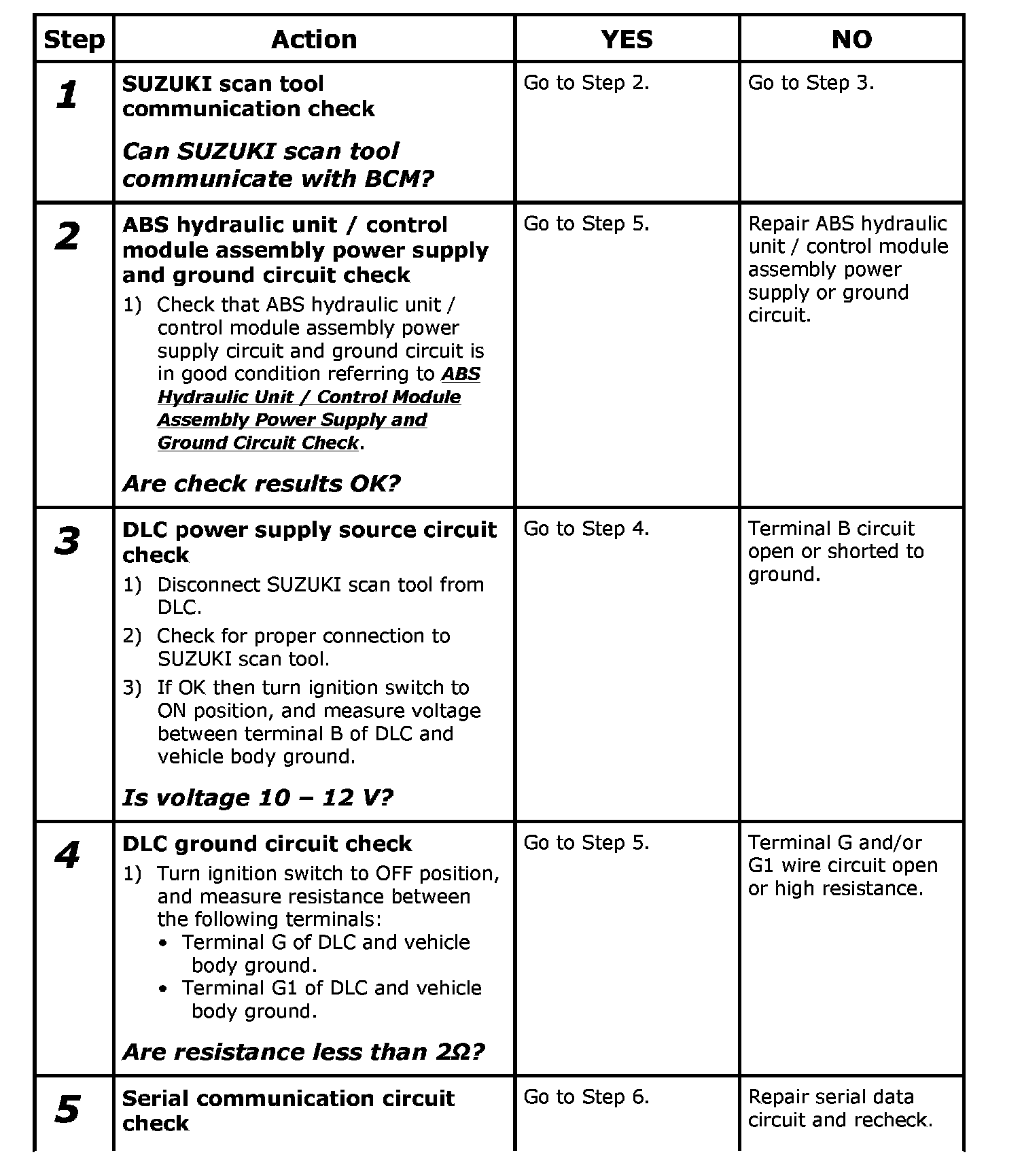

Step 1-5:

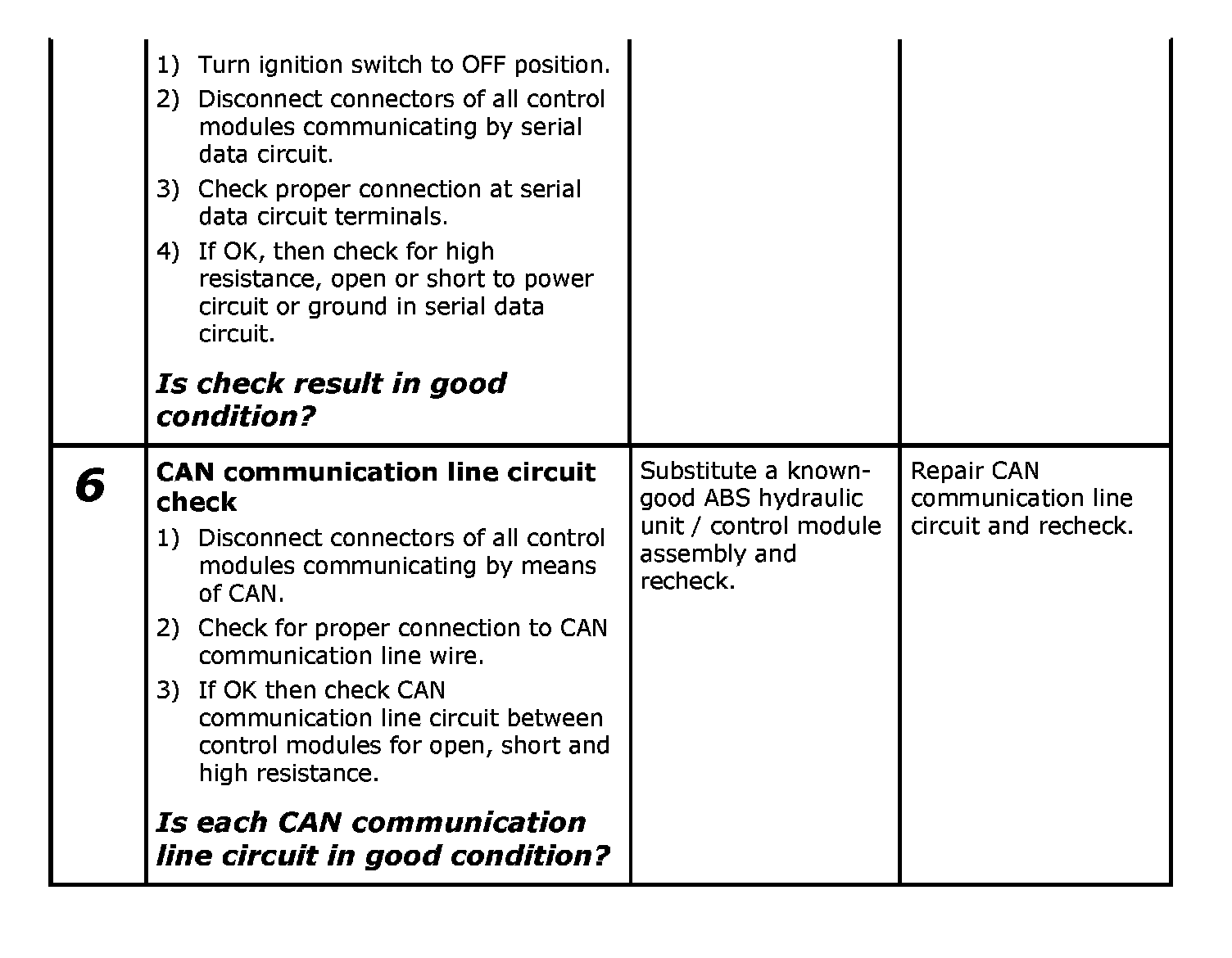

Step 5-6:
