Electronic Stability Program (ESP)
>>

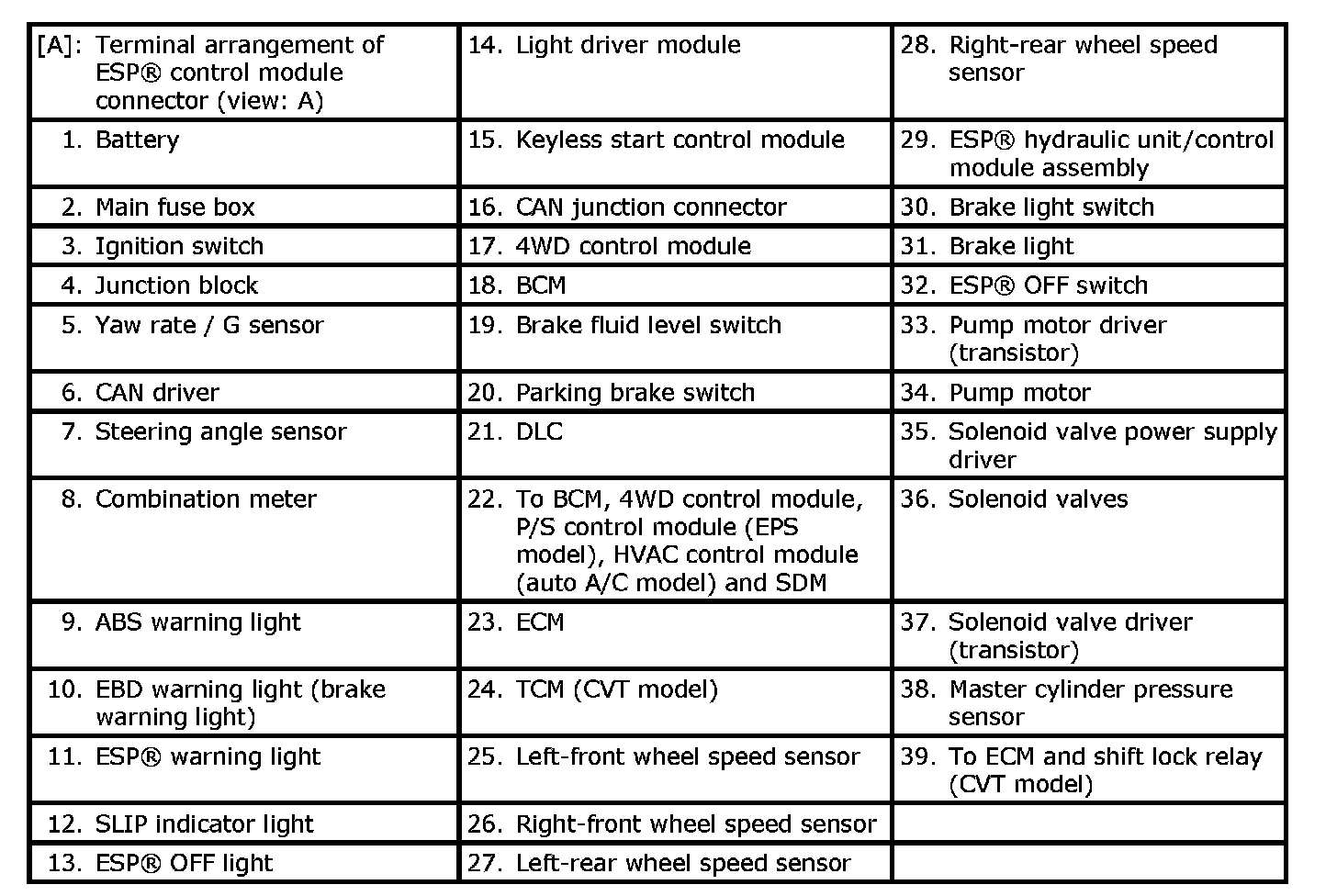

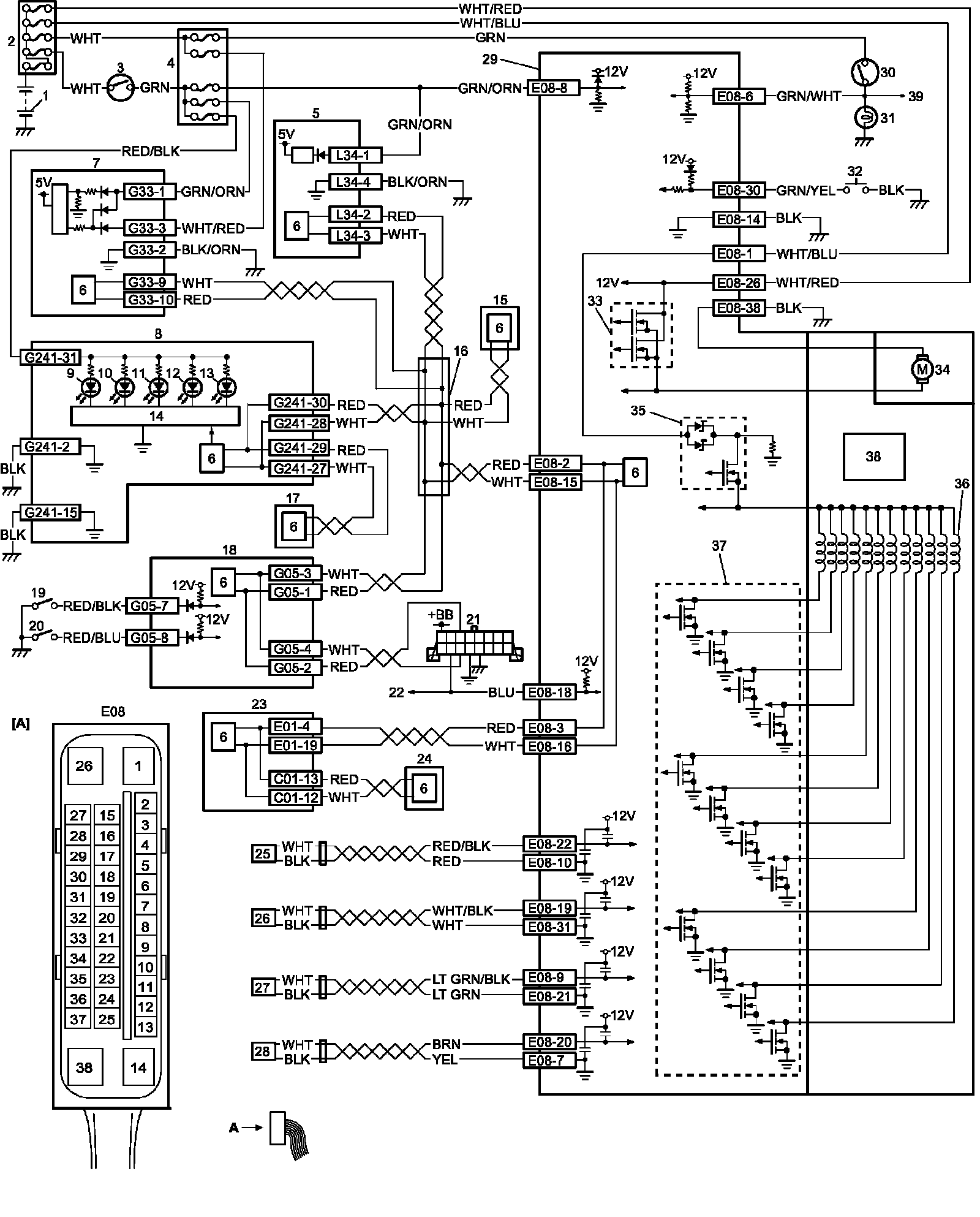

ESP(R) Wiring Circuit Diagram
ESP(R) Wiring Circuit Diagram
ESP(R) Wiring Circuit Diagram

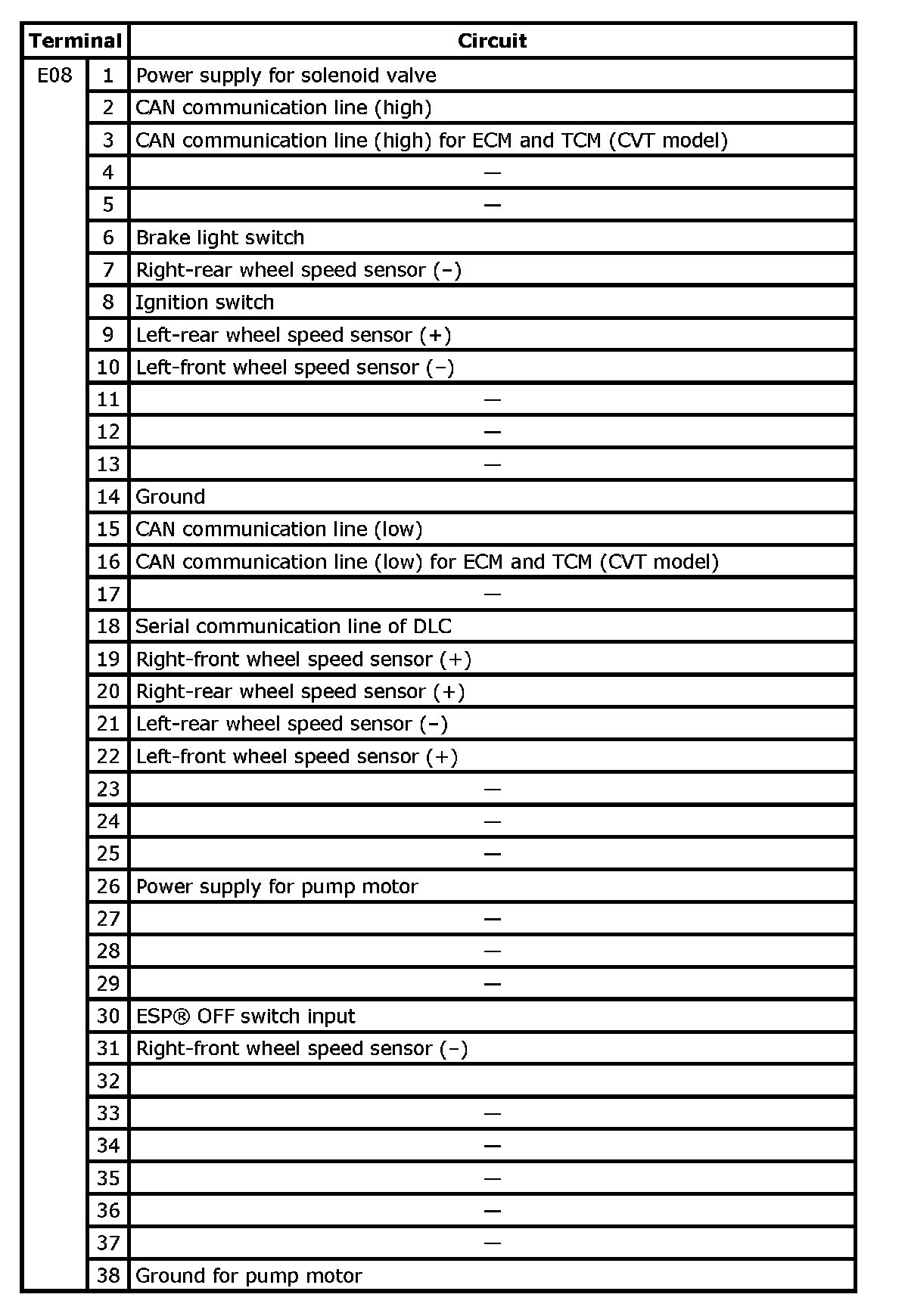

Connector "EO8" (ESP(R) Control Module Connector)
