Hood: Service and Repair

Hood Removal And Installation

Removal

CAUTION: Place cloth to prevent body from any damage.

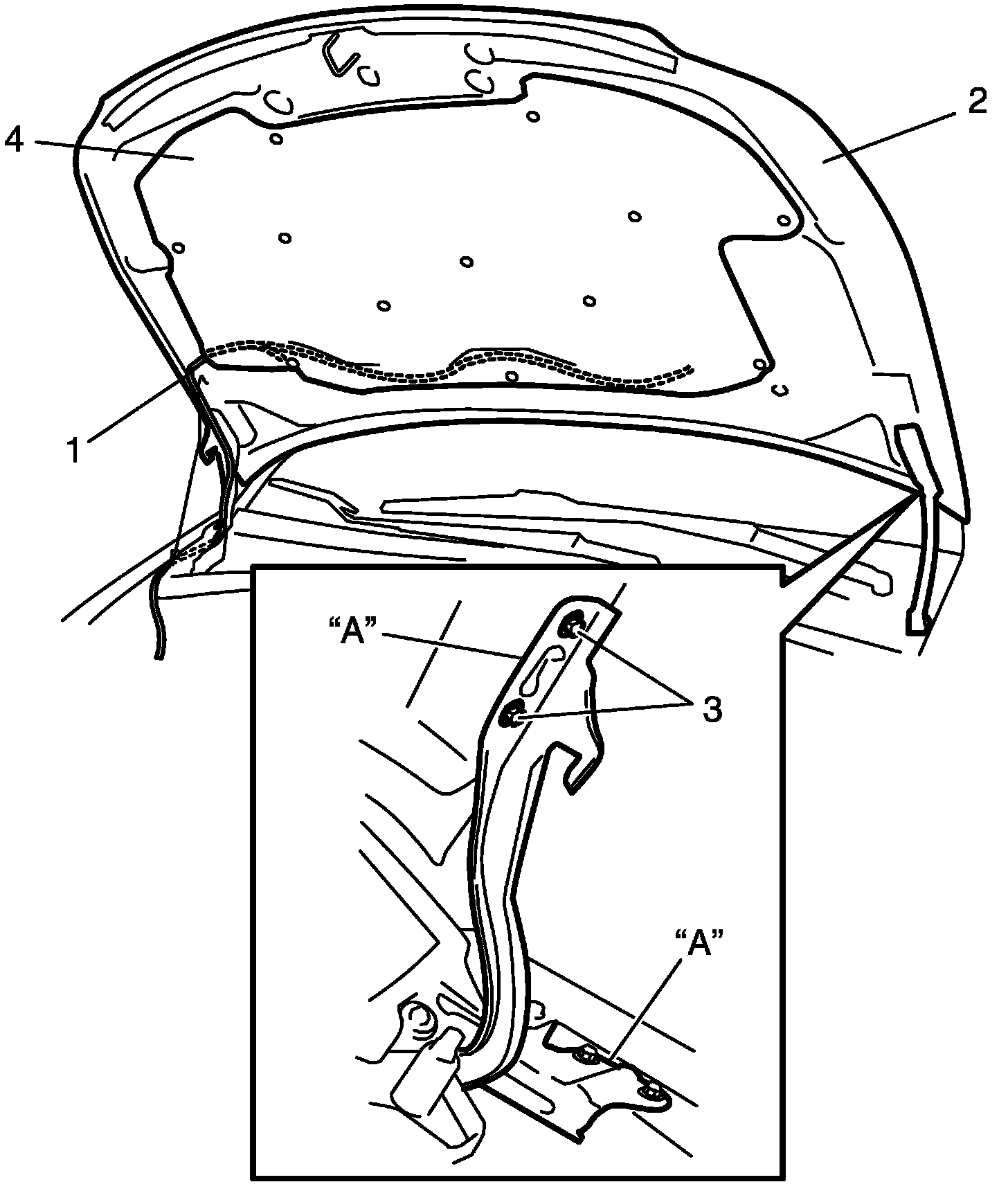

1. Remove hood silencer (4).
2. Disconnect window washer hose (1) from hood.
3. Remove 4 mounting bolts (3) to detach hood (2).

Installation

Reverse removal procedure noting the following.
- Apply sealant to contact face "A" of hood hinge.
Specified sealant.

"A": Sealant 99000-31110 (SUZUKI Bond No.1215)

- Adjust hood lock position if necessary referring to Hood Inspection and Adjustment.
