Home >> Suzuki >> 2010 >> SX4 2WD L4-2.0L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Immobilizer Control System Check

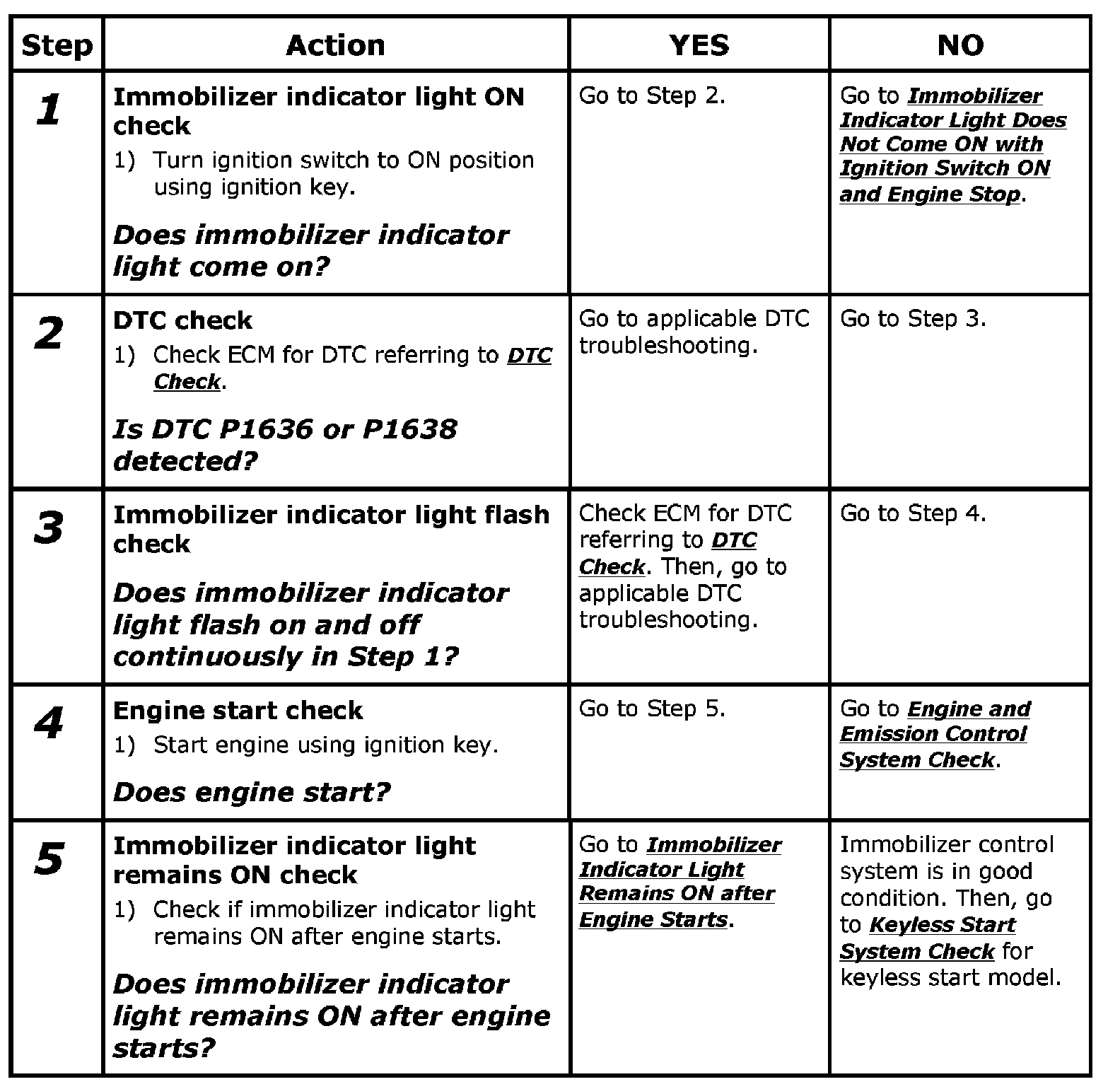

Immobilizer Control System Check

Immobilizer Control System Check

Step 1-5:
