P2111

DTC P2111

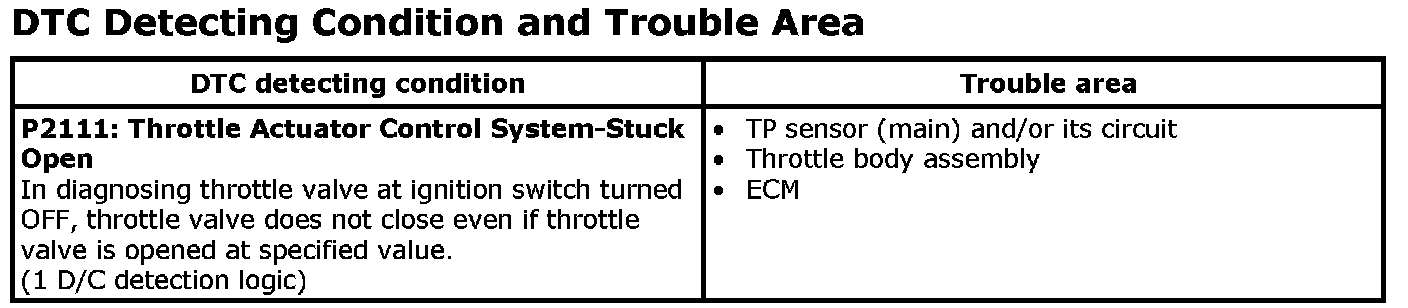

DTC Detecting Condition and Trouble Area

Wiring Diagram

Wiring Diagram:

DTC Confirmation Procedure
1. Turn ignition switch to ON position.
2. Turn OFF ignition switch for 20 sec.
3. Repeat Step 1 through 2 for 3 times.

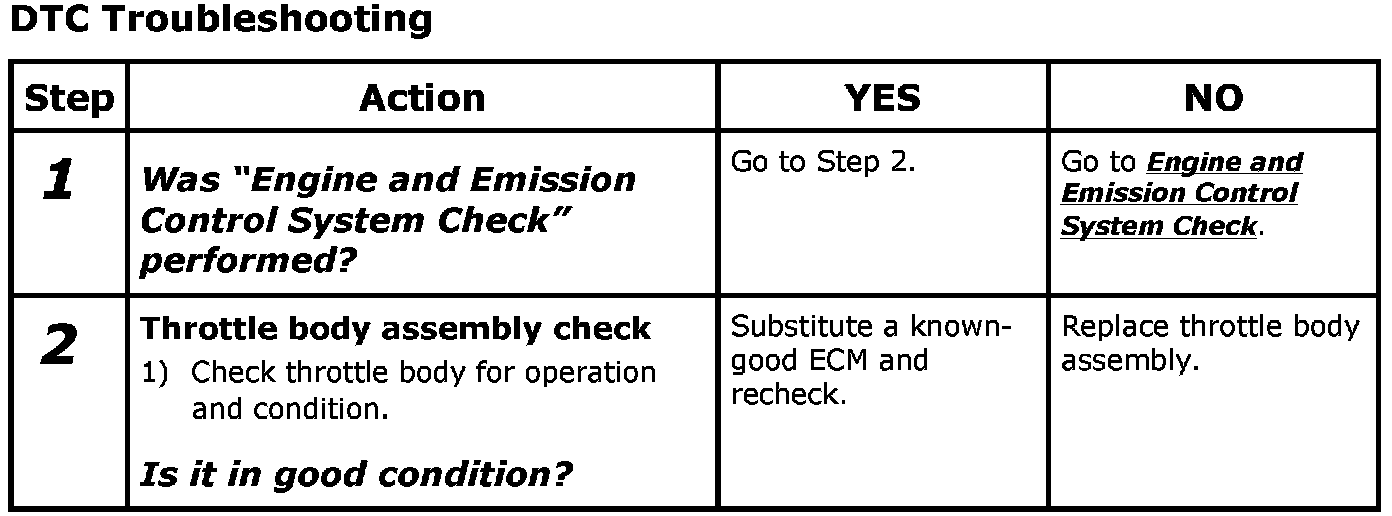

DTC Troubleshooting

Step 1-2:
