P1636

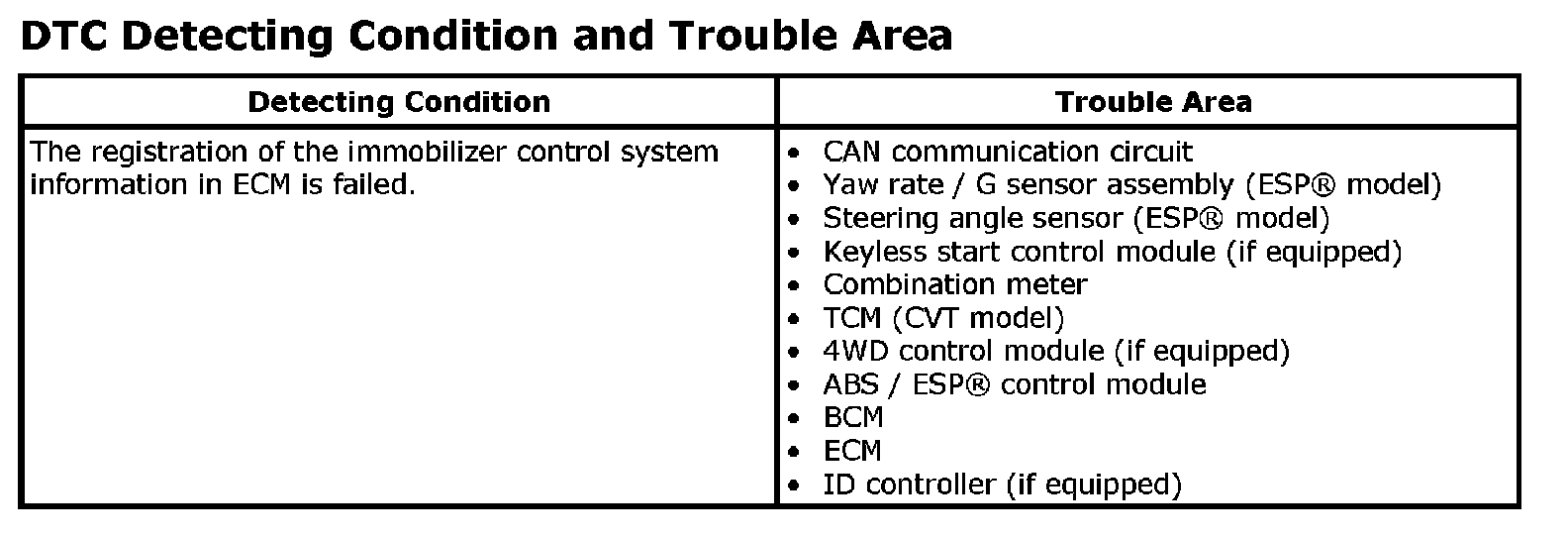

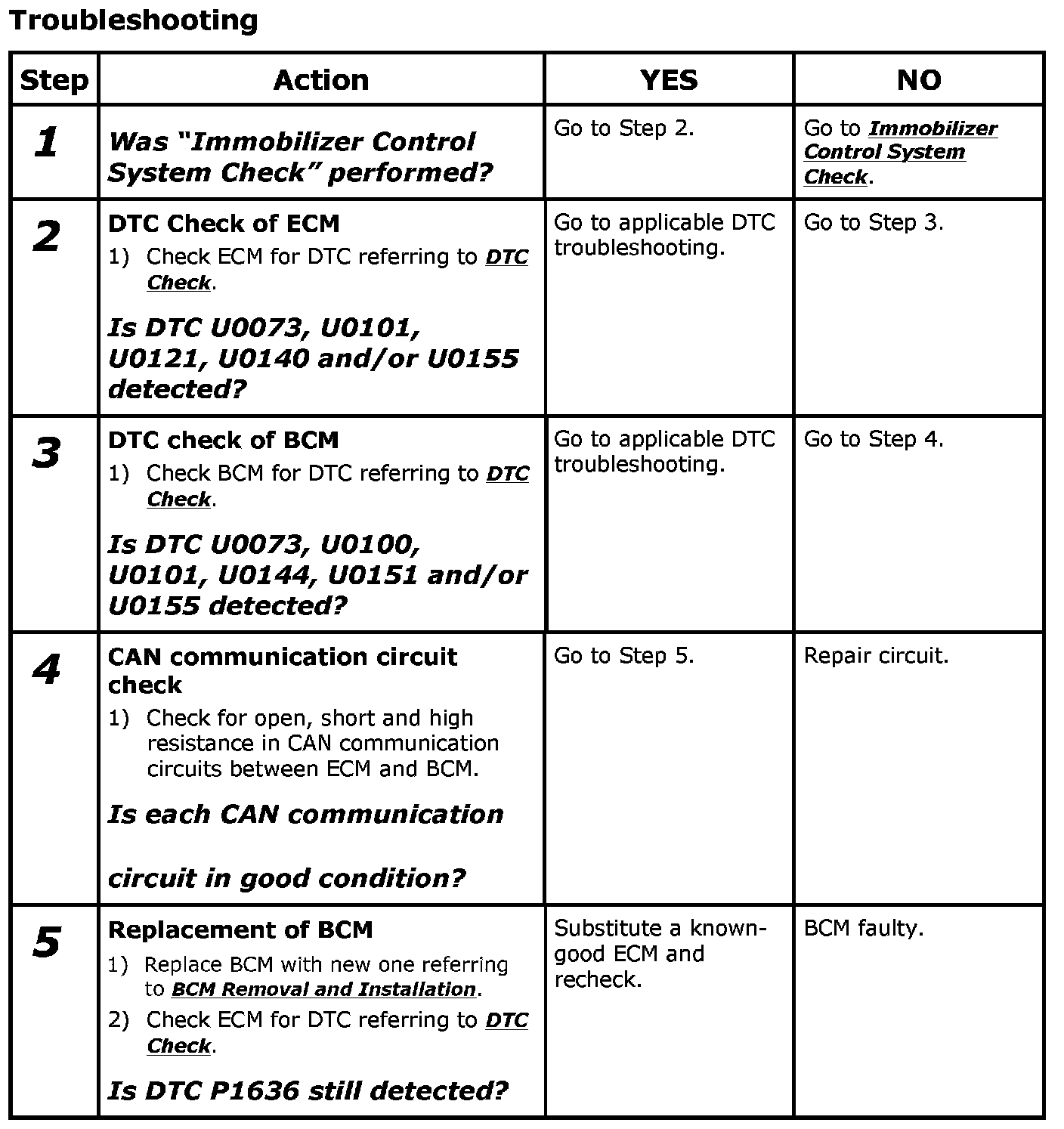

DTC P1636: Immobilizer Information Registration Failure

Wiring Diagram

Immobilizer Control System Wiring Circuit Diagram

NOTE: For more details about power supply circuit, ground wire circuit, and each circuit for ECM, BCM, ABS /ESP(R) control module, keyless start control module and combination meter, refer to System Circuit Diagram.
