P0721

DTC P0721

DTC Detecting Condition and Trouble Area





Wiring Diagram
Refer to DTC P0716. P0716

DTC Confirmation Procedure

WARNING:
^ When performing a road test, select a place where there is no traffic or possibility of a traffic accident and be very careful during testing to avoid occurrence of an accident.
^ Road test should be carried out with 2 persons, a driver and a tester, on a level road.

NOTE:
^ If DTC other than aimed DTC are previously detected in DTC confirmation procedure, be sure to troubleshoot DTC previously detected.
^ Check that the following conditions are satisfied when using this procedure.
^ Battery voltage > 10.5 V
^ CVT fluid temperature at engine start >/= 10 °C (50 °F)

1) Drive vehicle more than 40 km/h (25 mile/h) for 10 sec.
2) Stop vehicle and turn ignition switch to OFF position.
3) Repeat Step 1) through 2) twice.
4) Turn ignition switch to ON position.

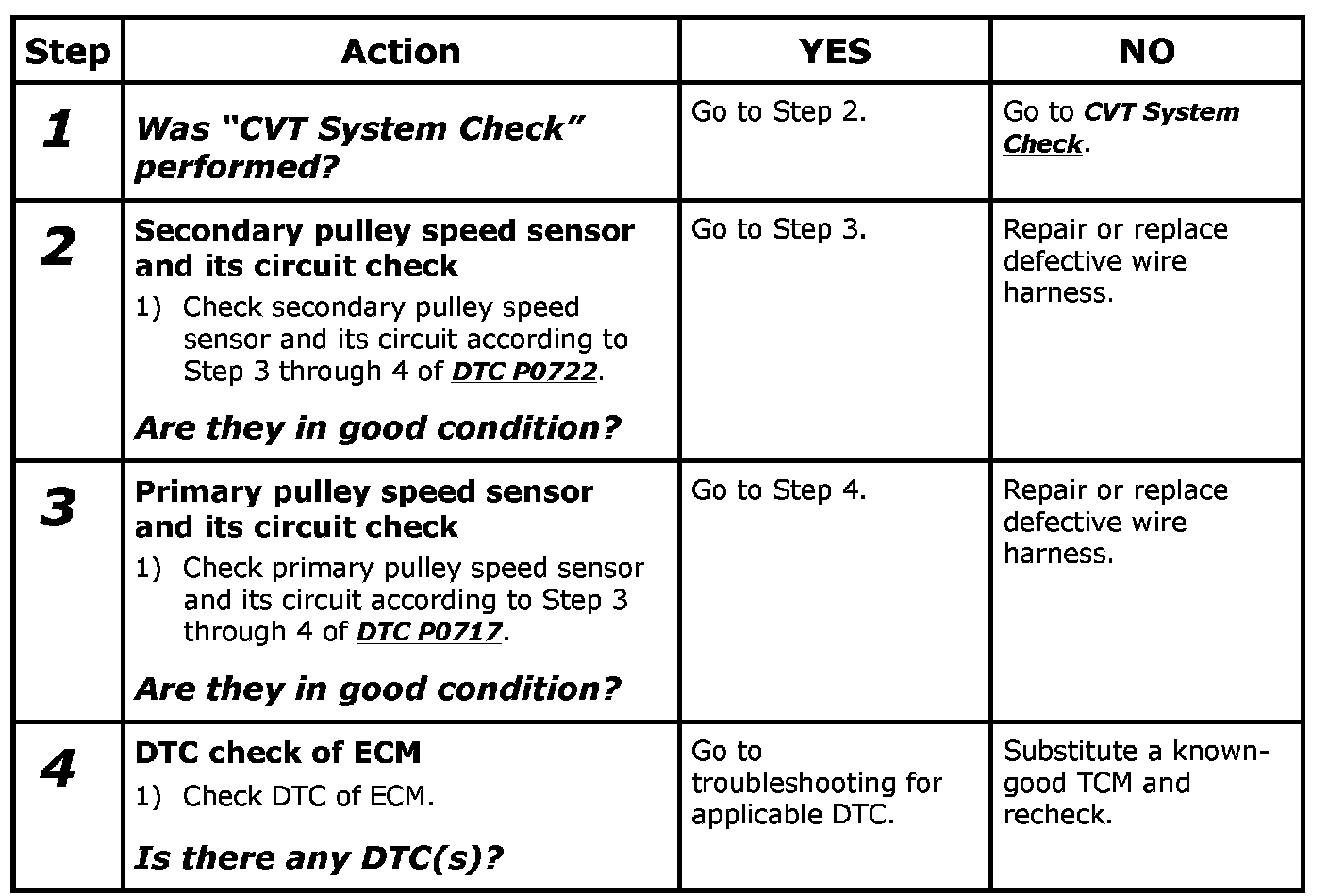

DTC Troubleshooting

Step 1-4:
