P0711

DTC P0711

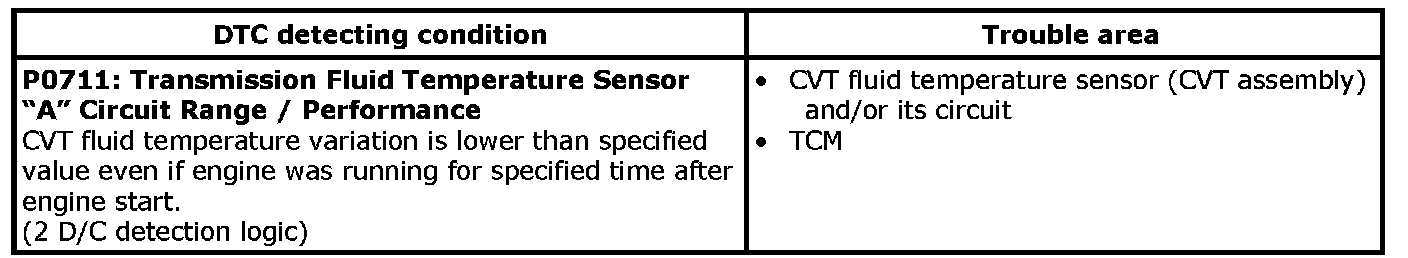

DTC Detecting Condition and Trouble Area

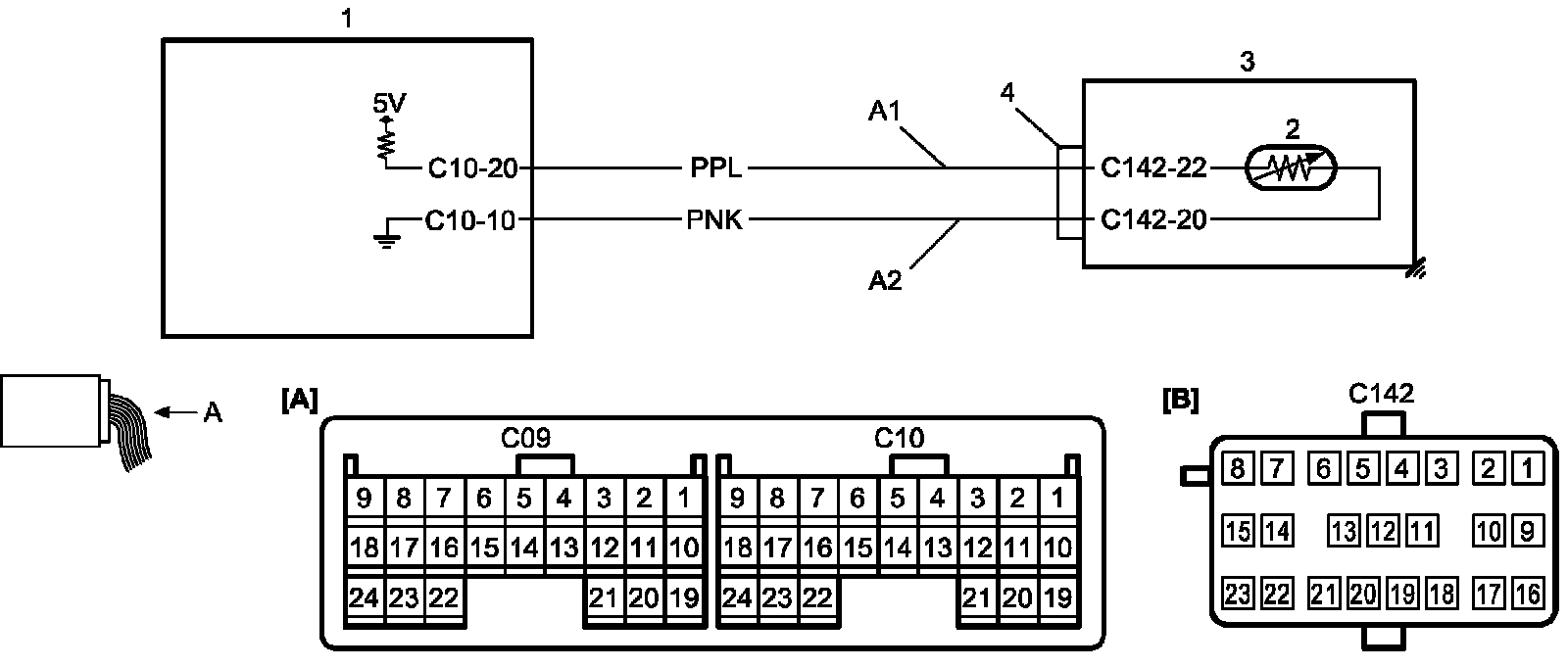

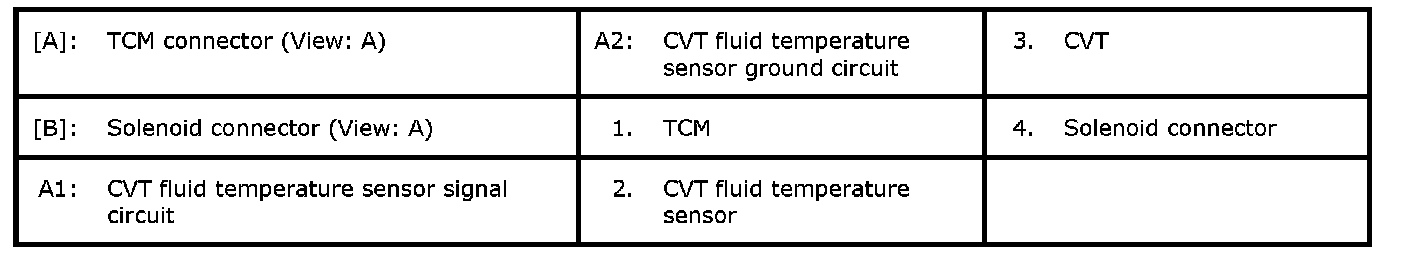

Wiring Diagram








DTC Confirmation Procedure

WARNING:
^ When performing a road test, select a place where there is no traffic or possibility of a traffic accident and be very careful during testing to avoid occurrence of an accident.
^ Road test should be carried out with 2 persons, a driver and a tester, on a level road.

NOTE:
^ If DTC other than aimed DTC are previously detected in DTC confirmation procedure, be sure to troubleshoot DTC previously detected.
^ Check that the following conditions are satisfied when using this procedure.
- Battery voltage > 10.5 V

1) Drive vehicle more than 50 km/h (31 mile/h) for 7 min.
2) Stop vehicle and turn ignition switch to OFF position.
3) Repeat Step 1) through 2) twice.
4) Turn ignition switch to ON position.
5) Warm up engine to normal operating temperature.
6) Drive vehicle more than 20 km/h (12 mile/h) for 20 sec.

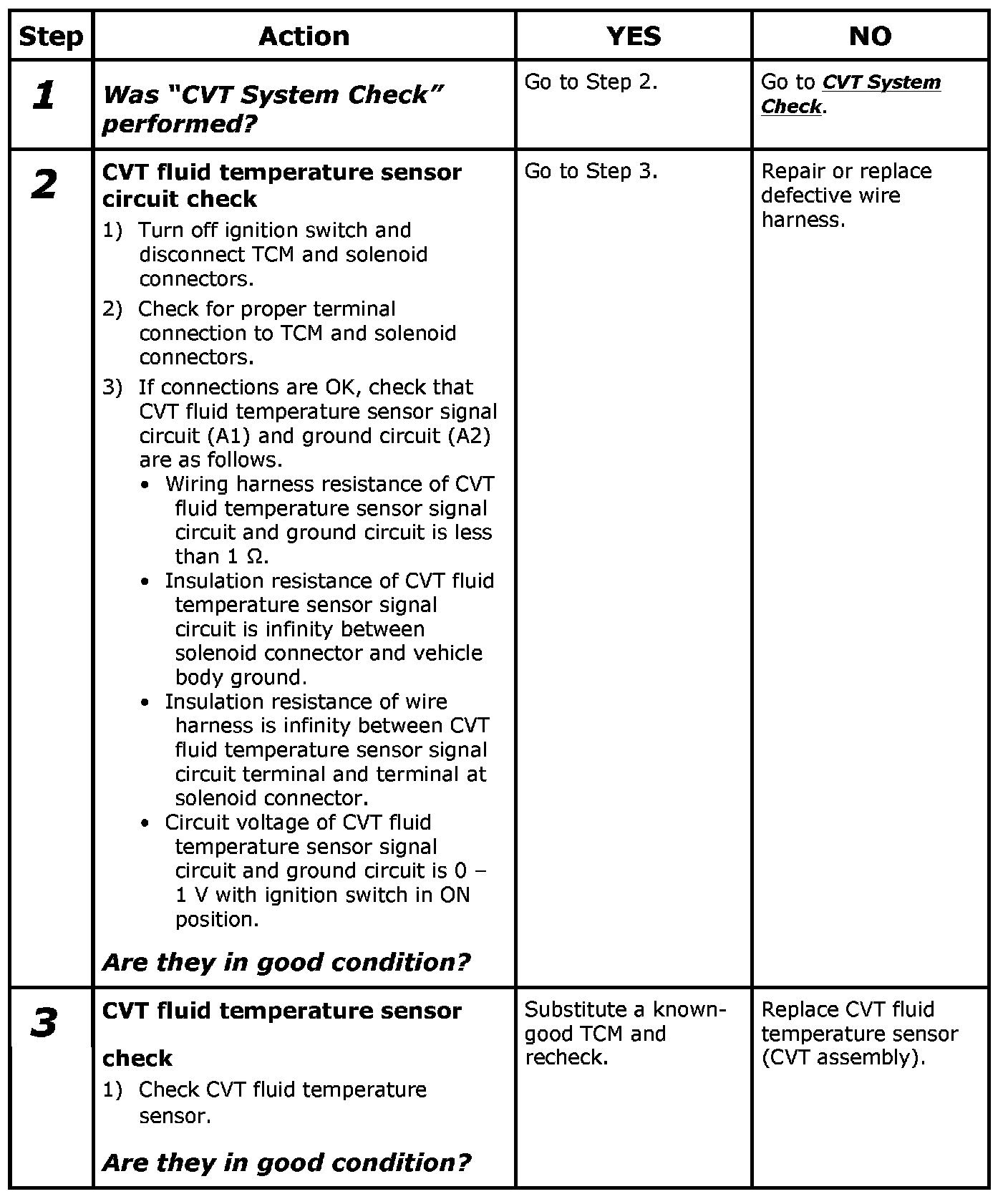

DTC Troubleshooting

Step 1-3:
