P0660

DTC P0660

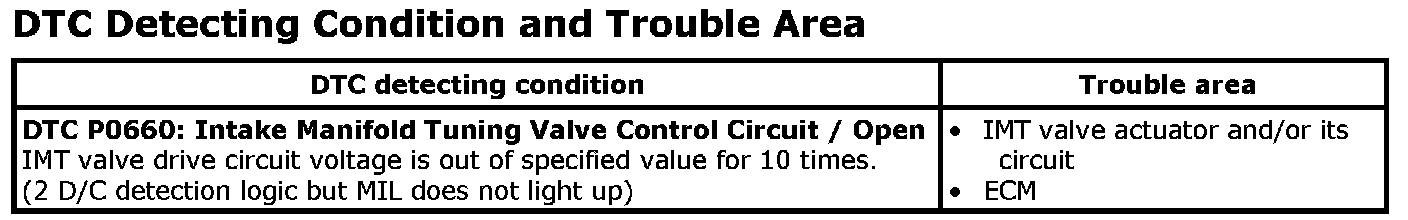

DTC Detecting Condition and Trouble Area

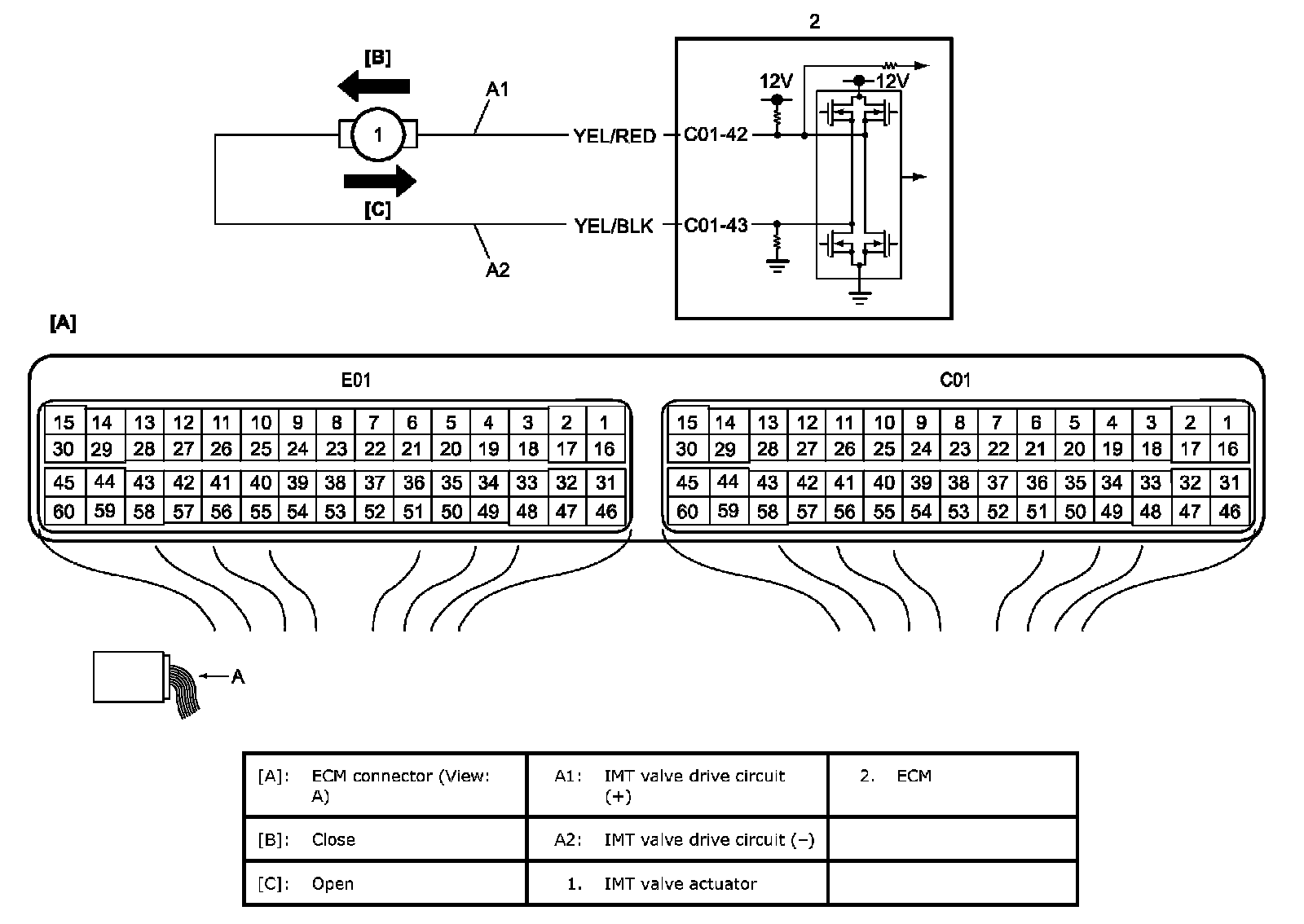

Wiring Diagram

Wiring Diagram:






DTC Confirmation Procedure
1. Turn ignition switch to ON position for 10 sec.

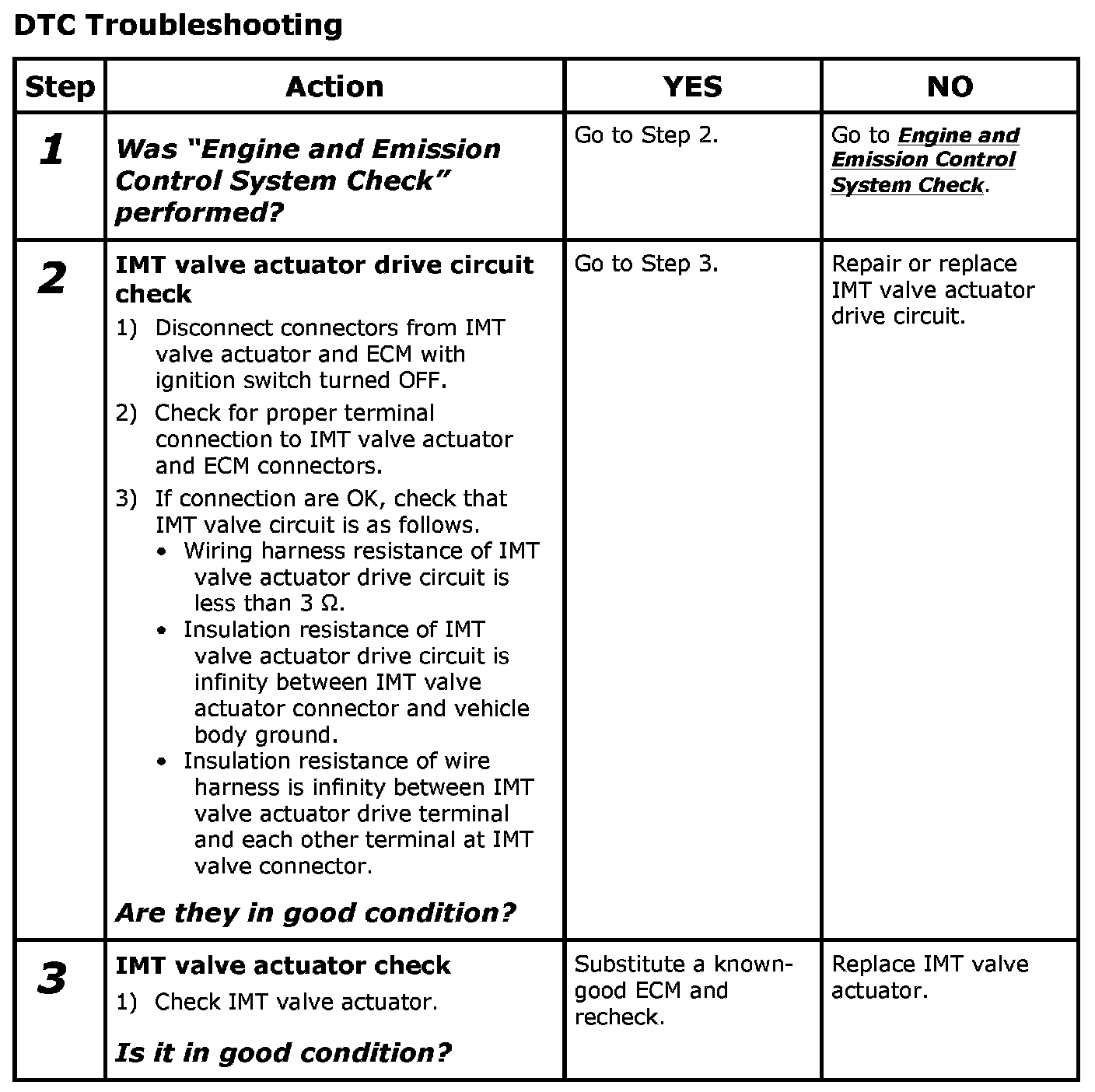

DTC Troubleshooting

Step 1-3:
