P0649
P0649
DTC P0649: Speed Control Lamp Control Circuit
Wiring Diagram
Wiring Diagram:

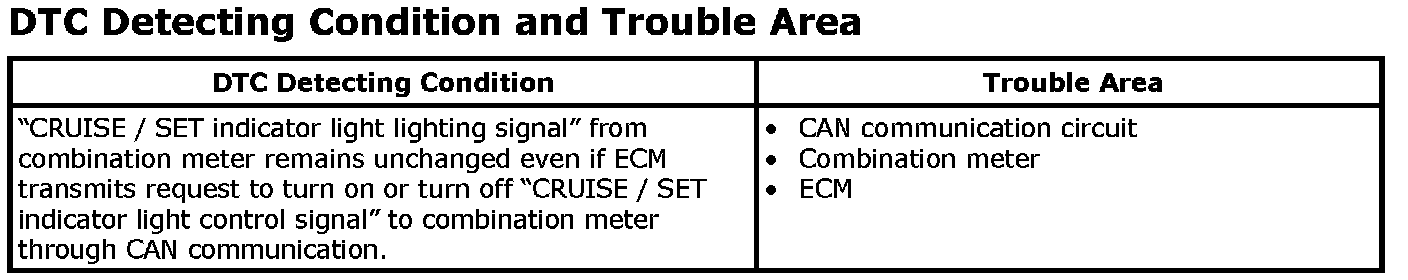

DTC Detecting Condition and Trouble Area

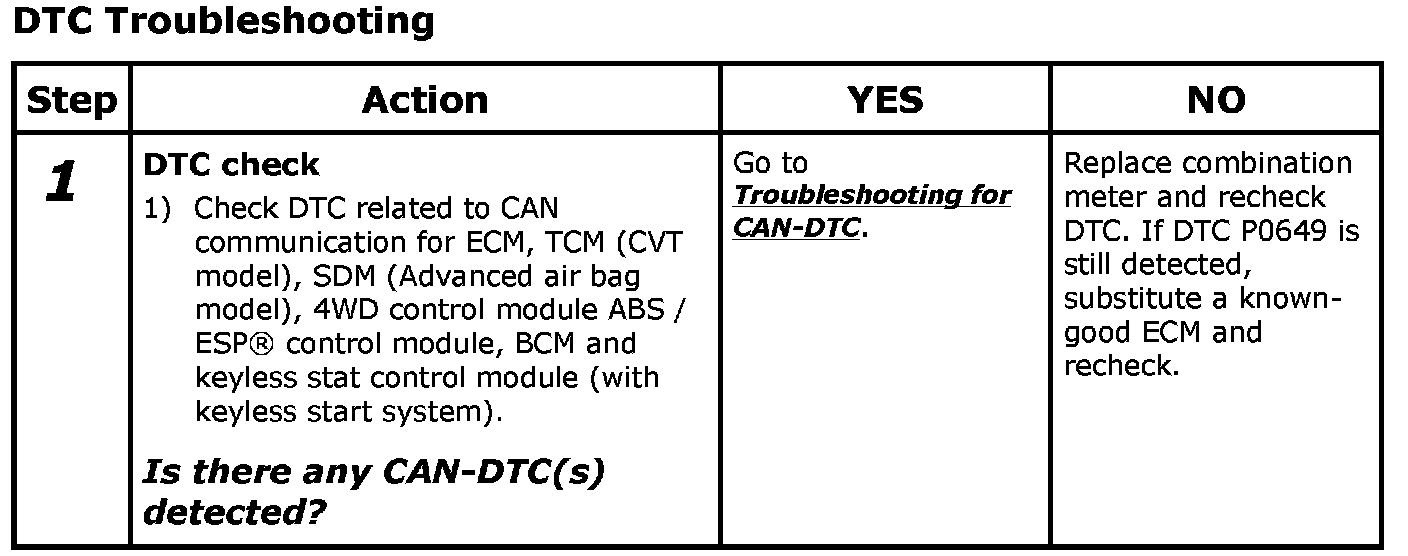

DTC Troubleshooting.
Step 1:
