P0641

DTC P0641

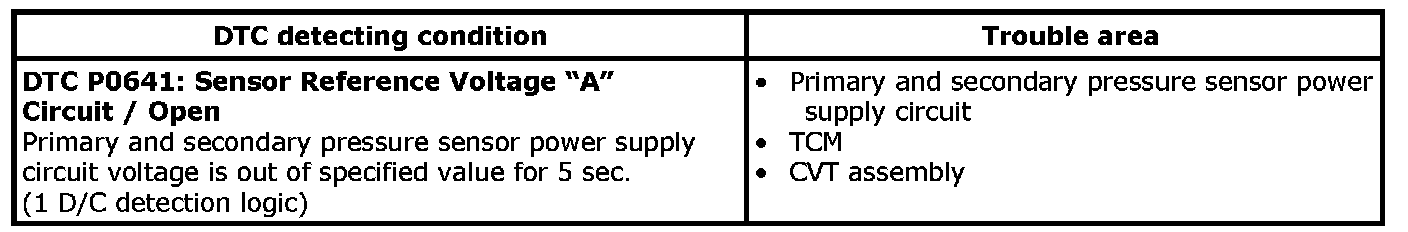

DTC Detecting Condition and Trouble Area

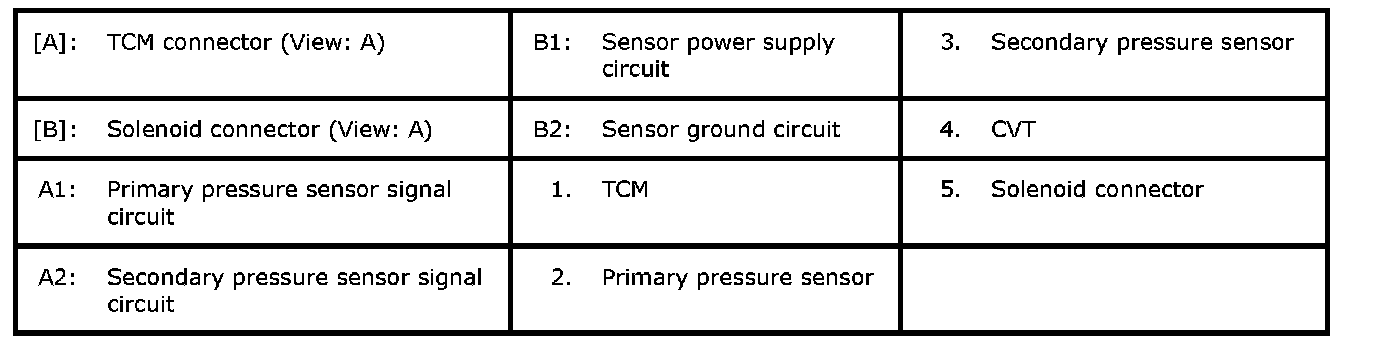

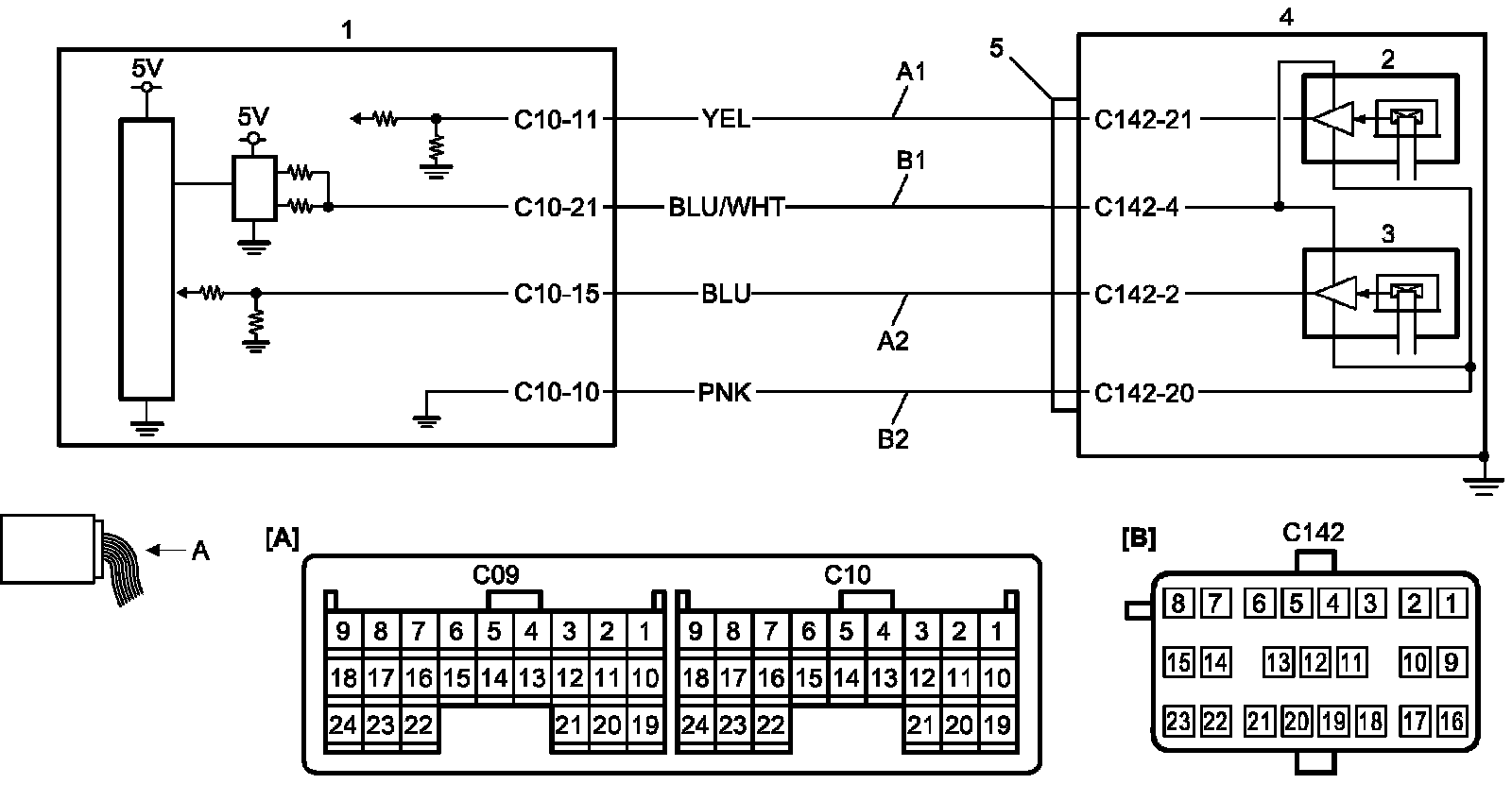

Wiring Diagram








DTC Confirmation Procedure

NOTE:
Check that the following conditions are satisfied when using this procedure.
^ Battery voltage > 10.5 V

1) Drive vehicle at 20 km/h (12 mile/h) or higher for 10 sec.

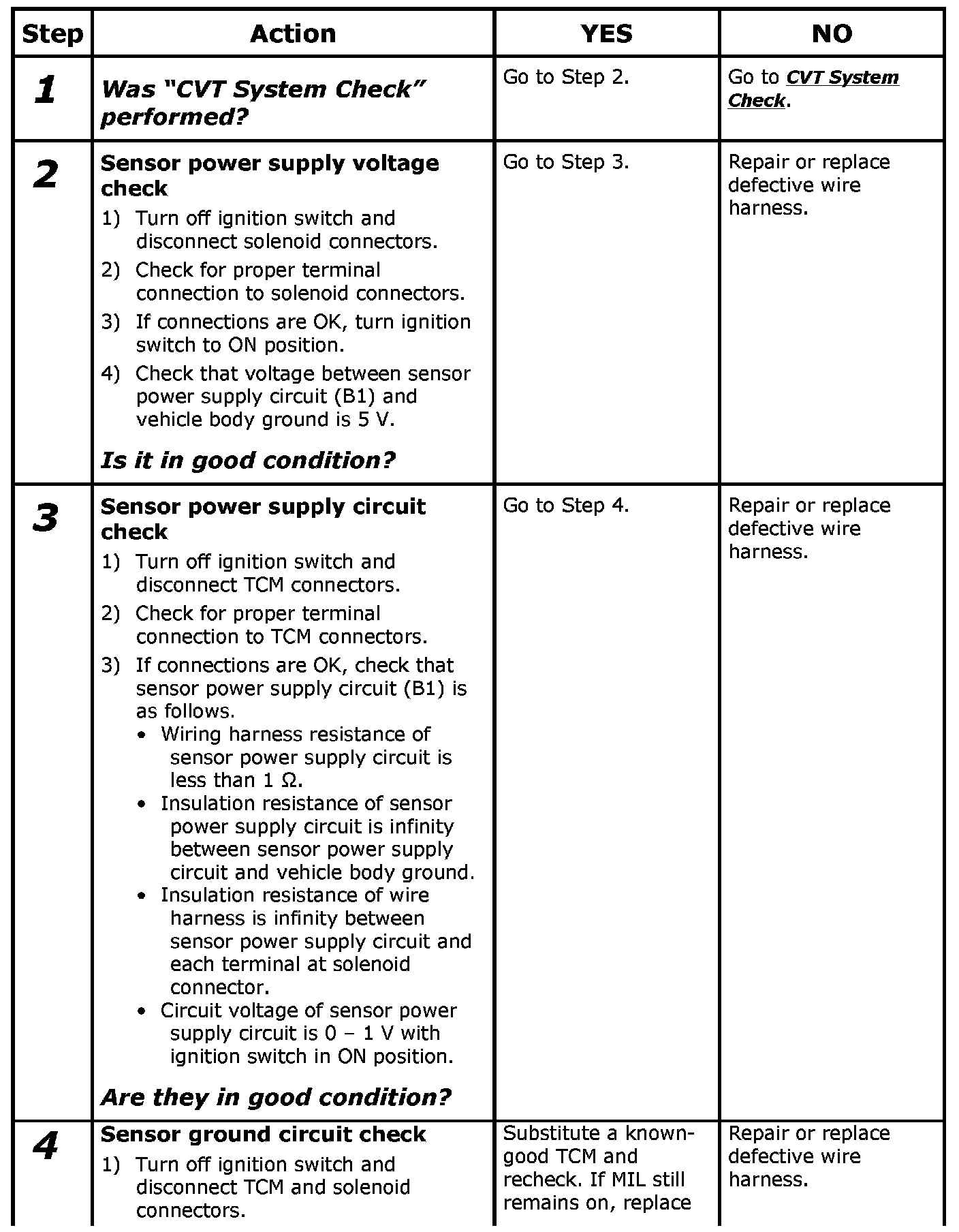

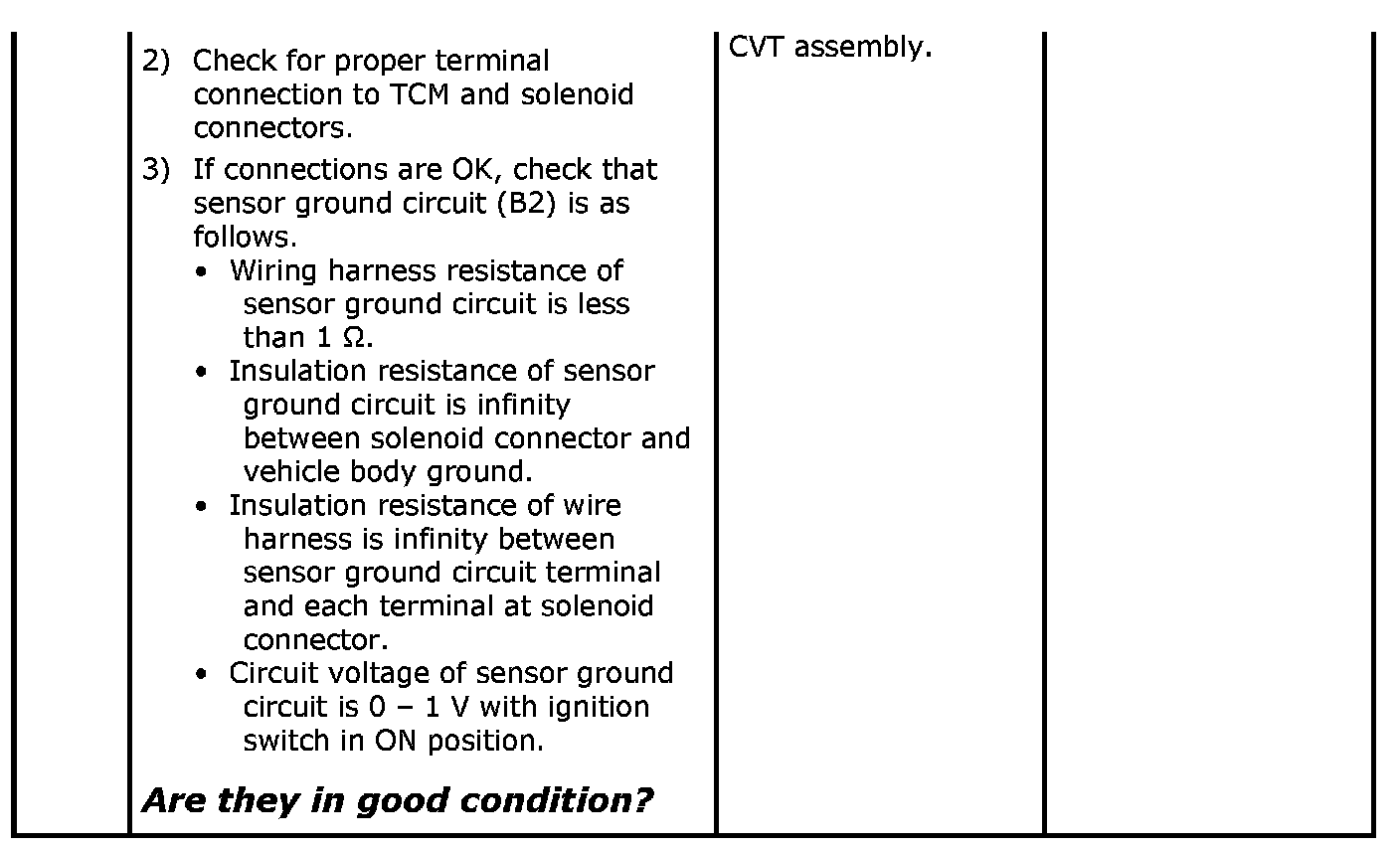

DTC Troubleshooting

Step 1-4:

Step 4:
