Home >> Suzuki >> 2010 >> SX4 2WD L4-2.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P062F >> CVT

CVT

DTC P062F

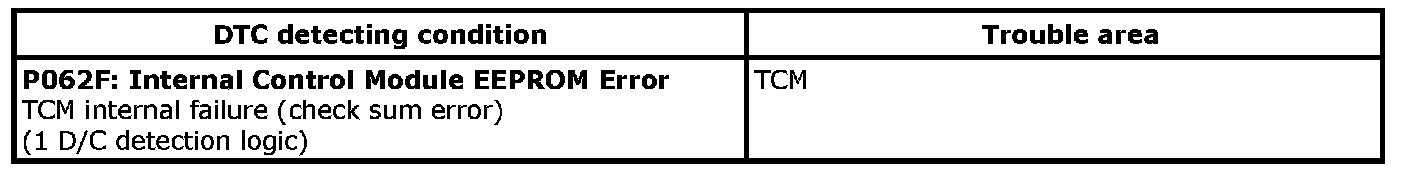

DTC Detecting Condition and Trouble Area





DTC Confirmation Procedure
1) Turn ignition switch to ON position for 10 sec.

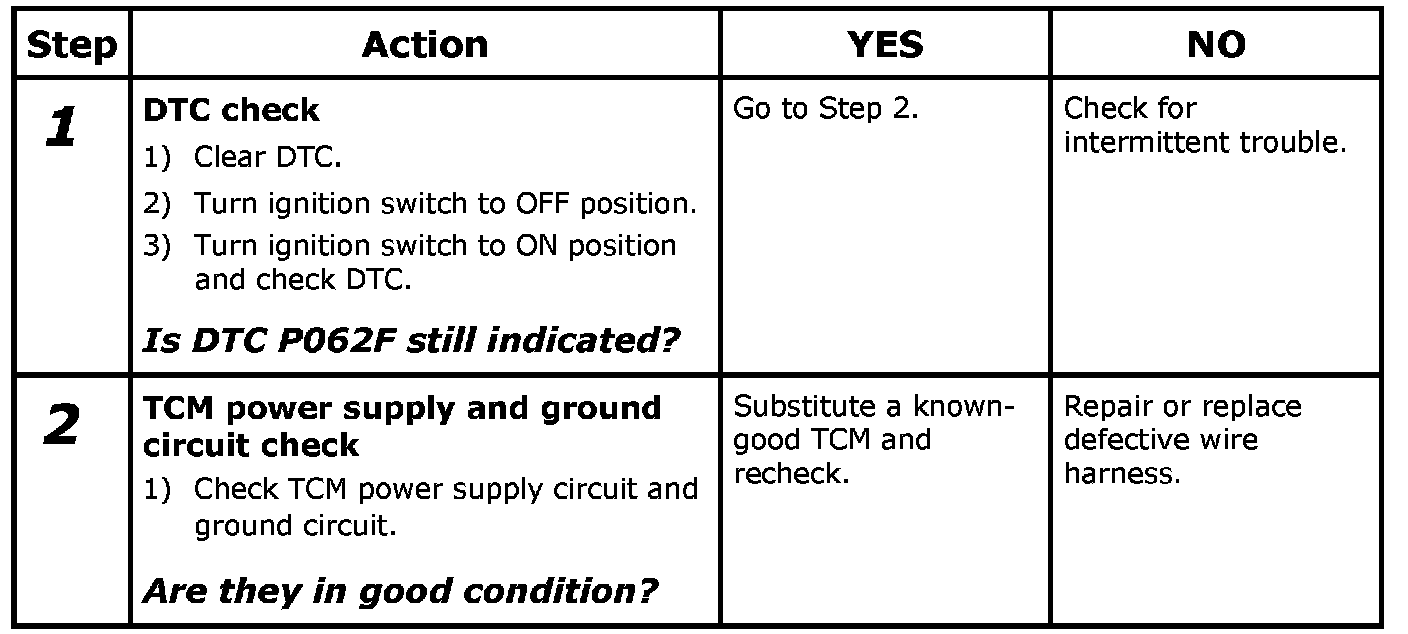

DTC Troubleshooting

Step 1-2:
