CVT

DTC P0602

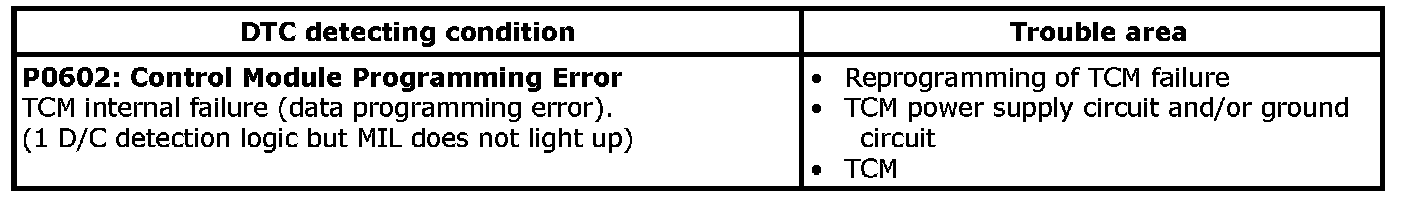

DTC Detecting Condition and Trouble Area

NOTE:
After reprogramming of TCM is executed, if the DTC P0602 is indicated, it is possible that the reprogramming of TCM is not completed correctly.





DTC Confirmation Procedure
1) Turn ignition switch to ON position for 10 sec.

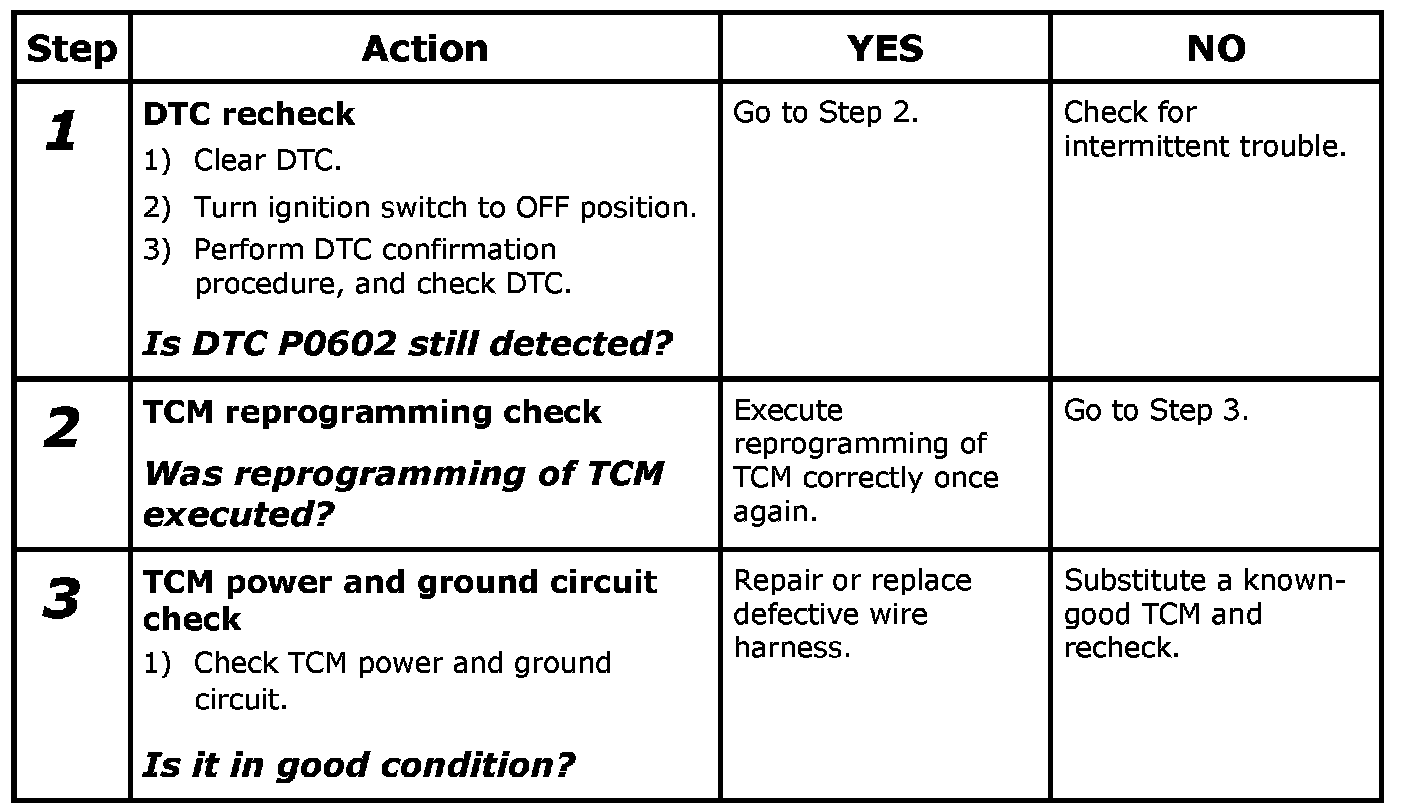

DTC Troubleshooting

Step 1-3:
