P011B

DTC P011B

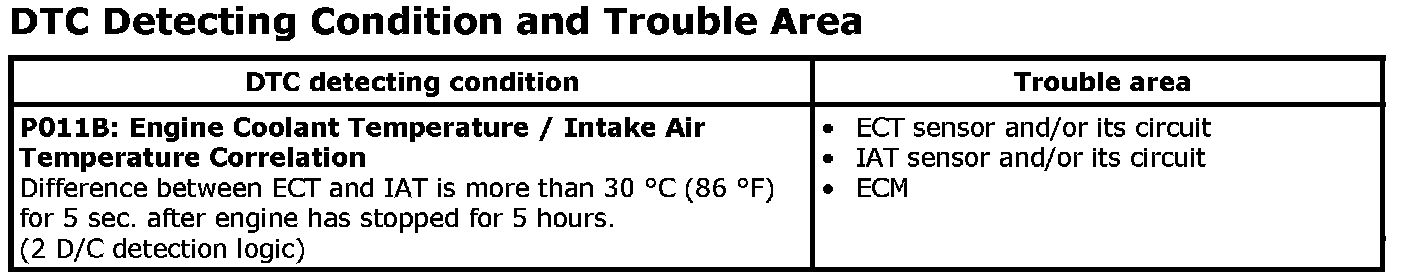

DTC Detecting Condition and Trouble Area

Wiring Diagram

Wiring Diagram:

Wiring Diagram:

DTC Confirmation Procedure
1. Warm up engine to normal operating temperature.
2. Turn OFF ignition switch and leave for 5 hours.

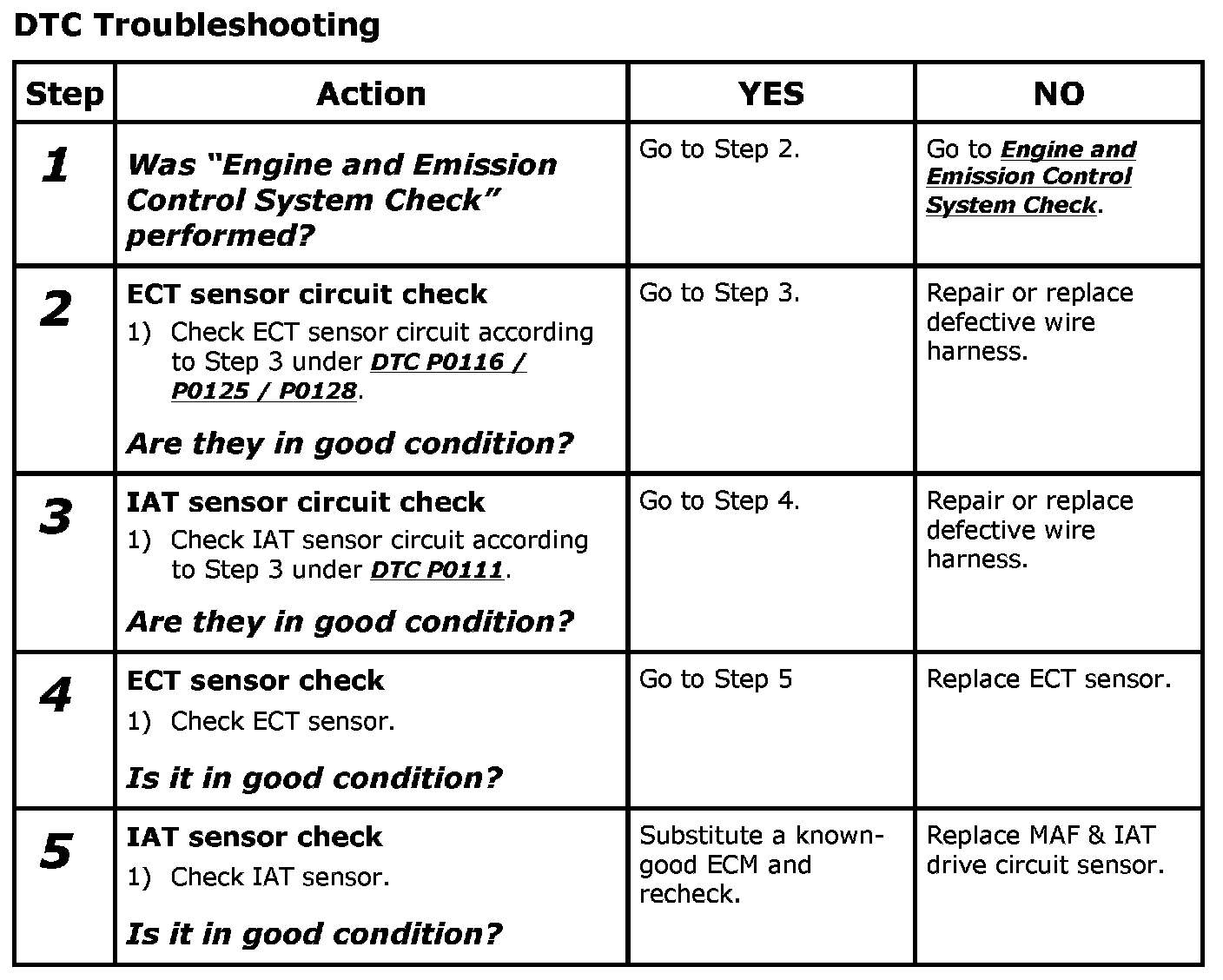

DTC Troubleshooting

Step 1-5:
