Fail-Safe Table EVAP System

Fail-Safe Table

NOTE: For identification of each cylinder, refer to Precautions for Identification of Cylinder.

When any of the following DTCs is detected, ECM enters fail-safe mode as long as malfunction continues to exist but that mode is canceled when ECM detects normal condition.

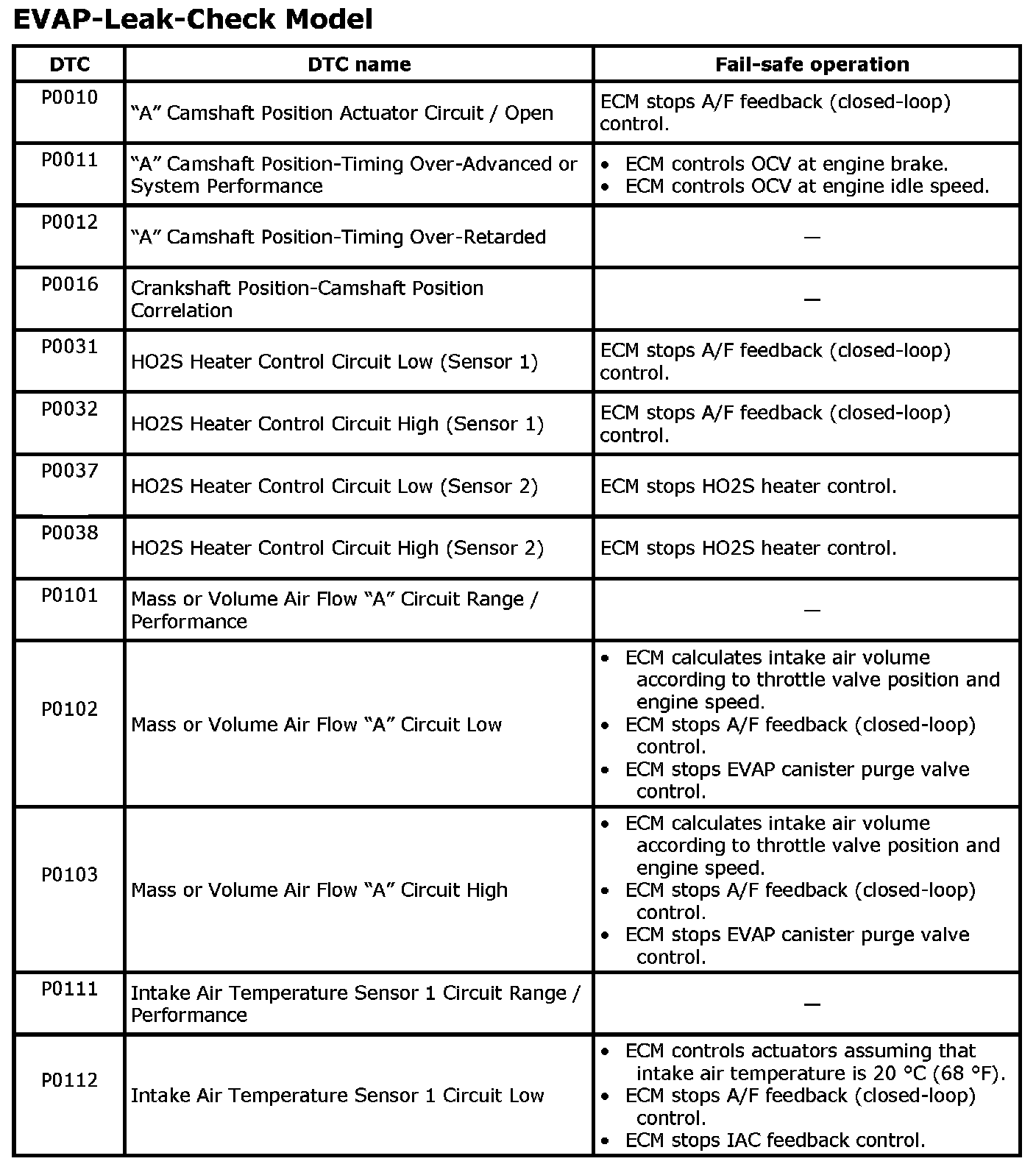

EVAP-Leak-Check Model

P0010-P0112:

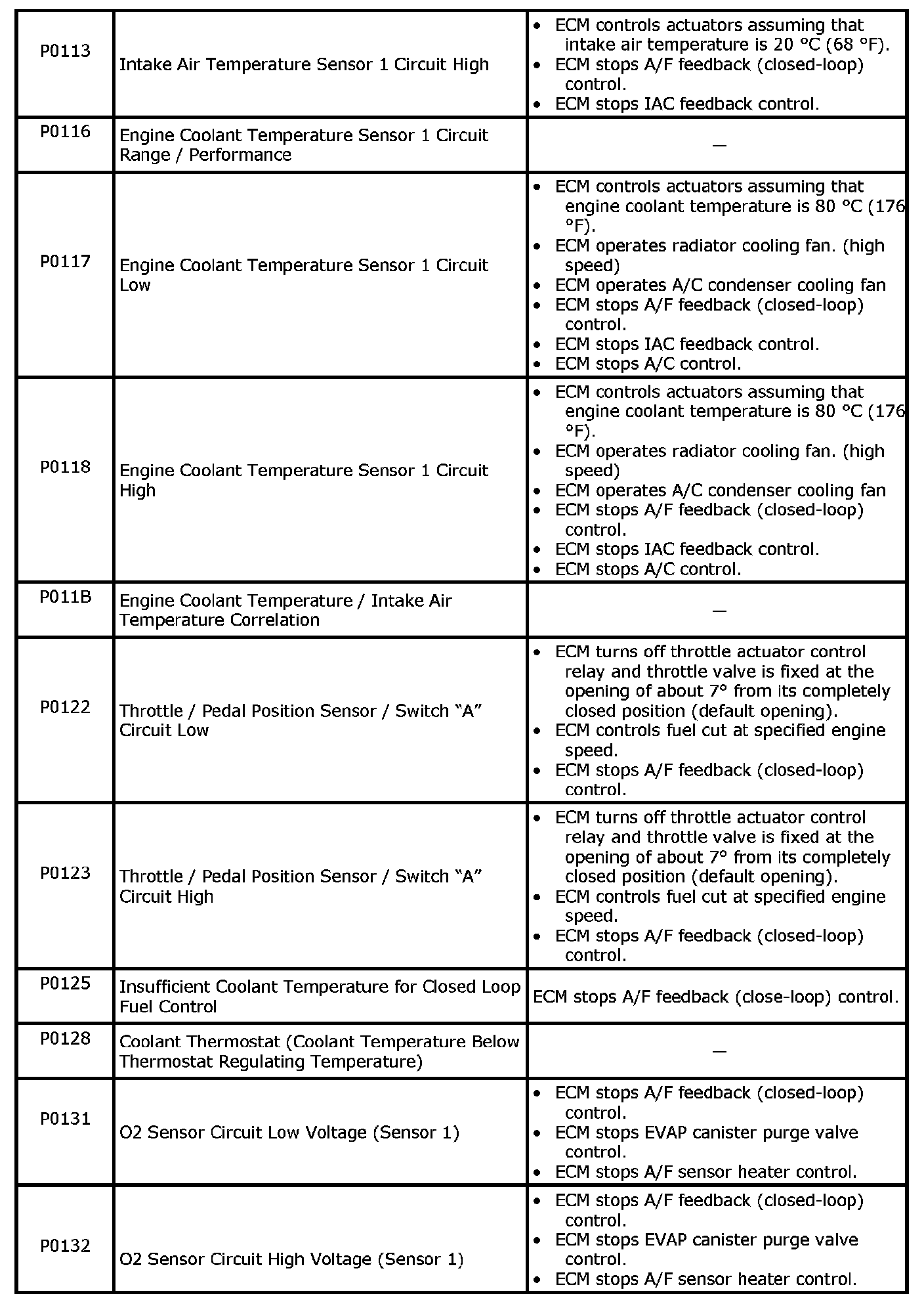

P0113-P0132:

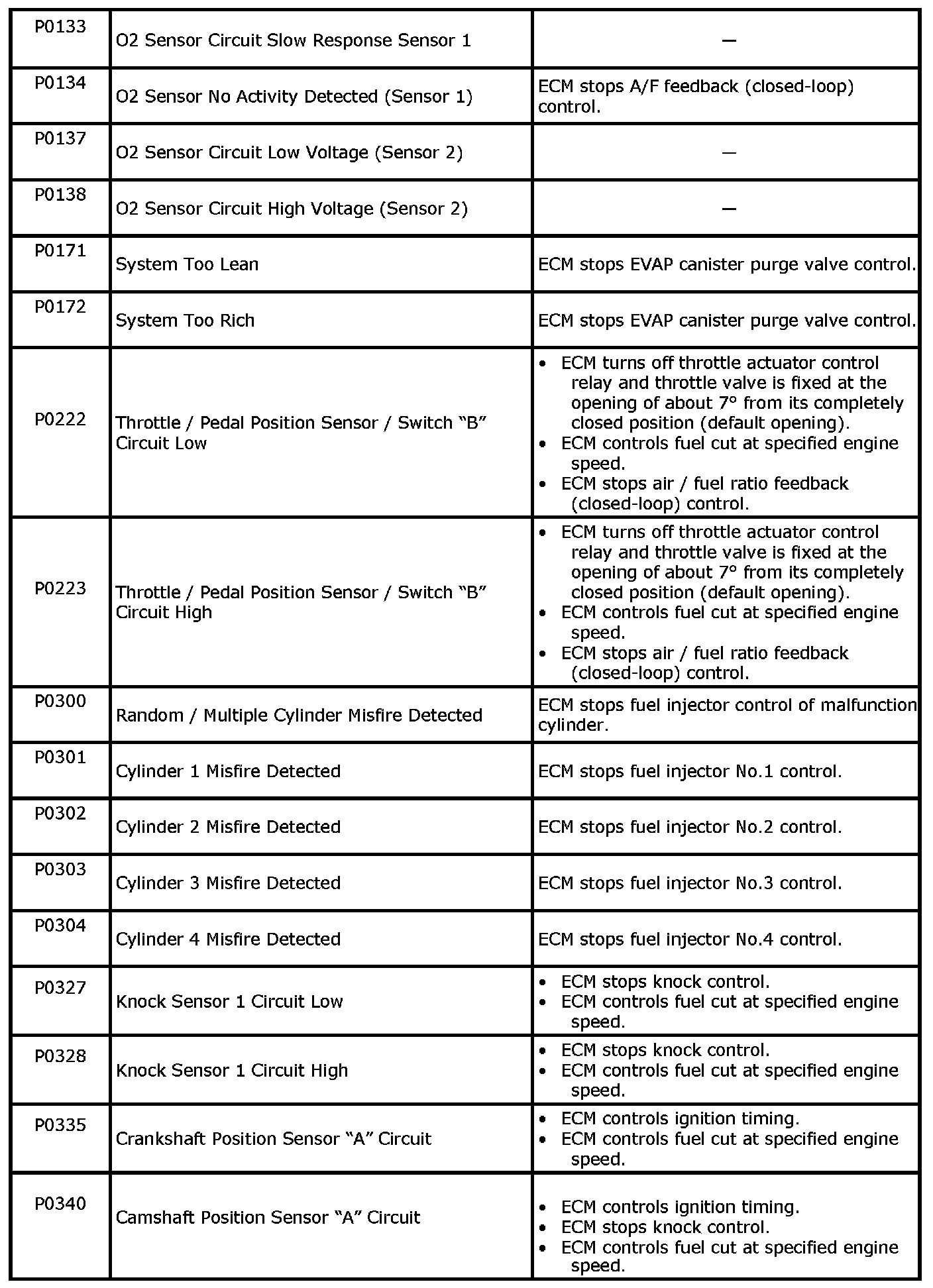

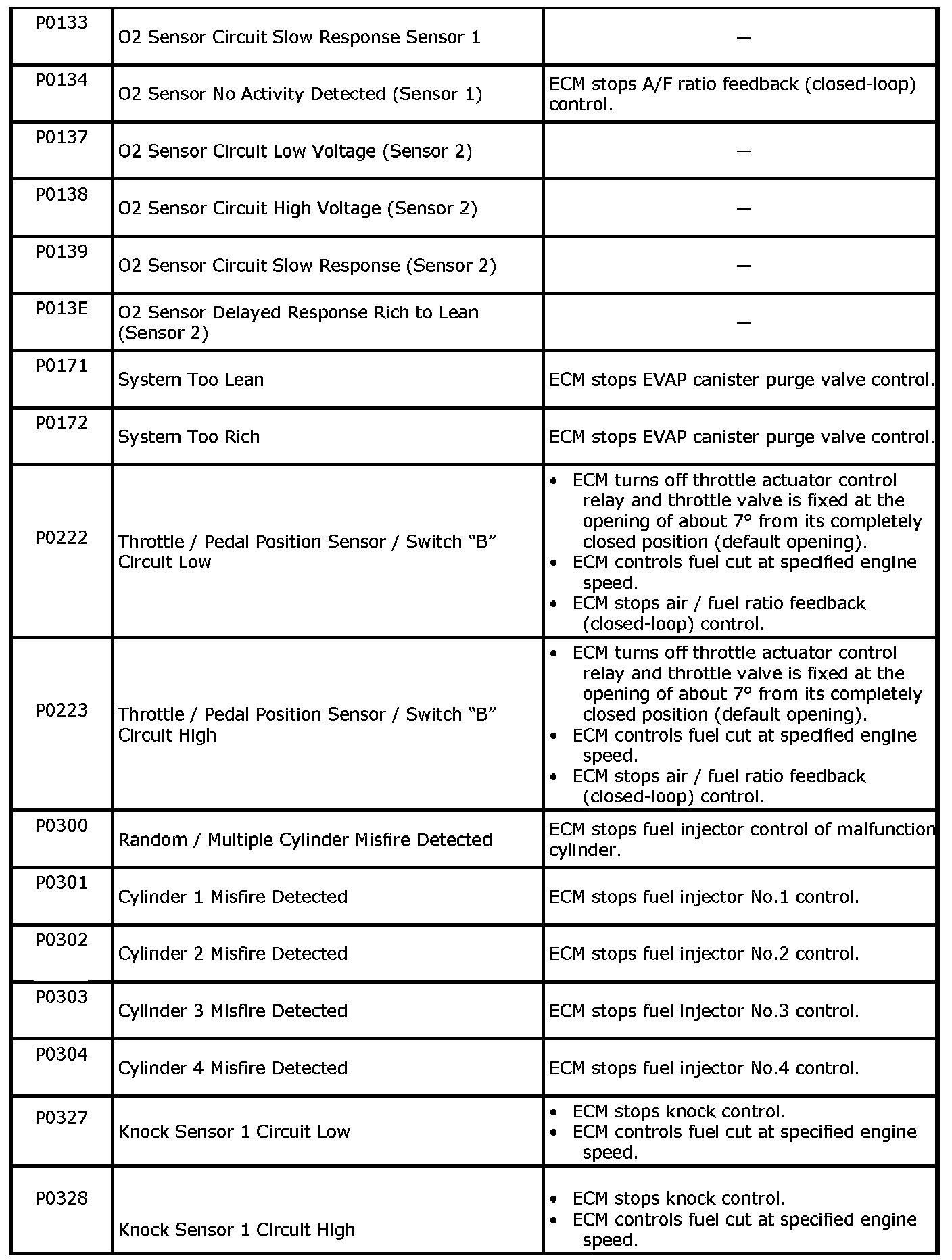

P0133-P0328:

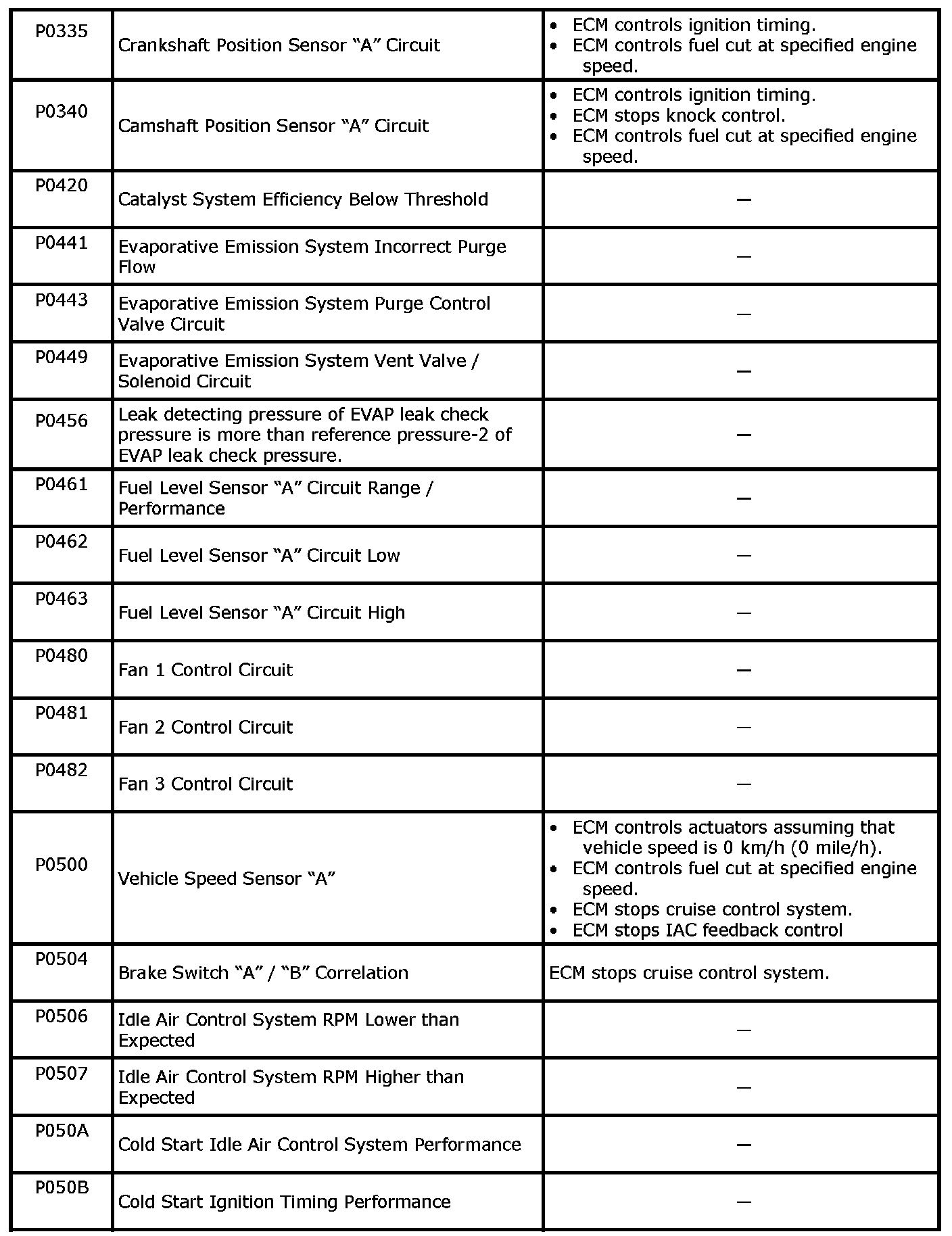

P0335-P050B:

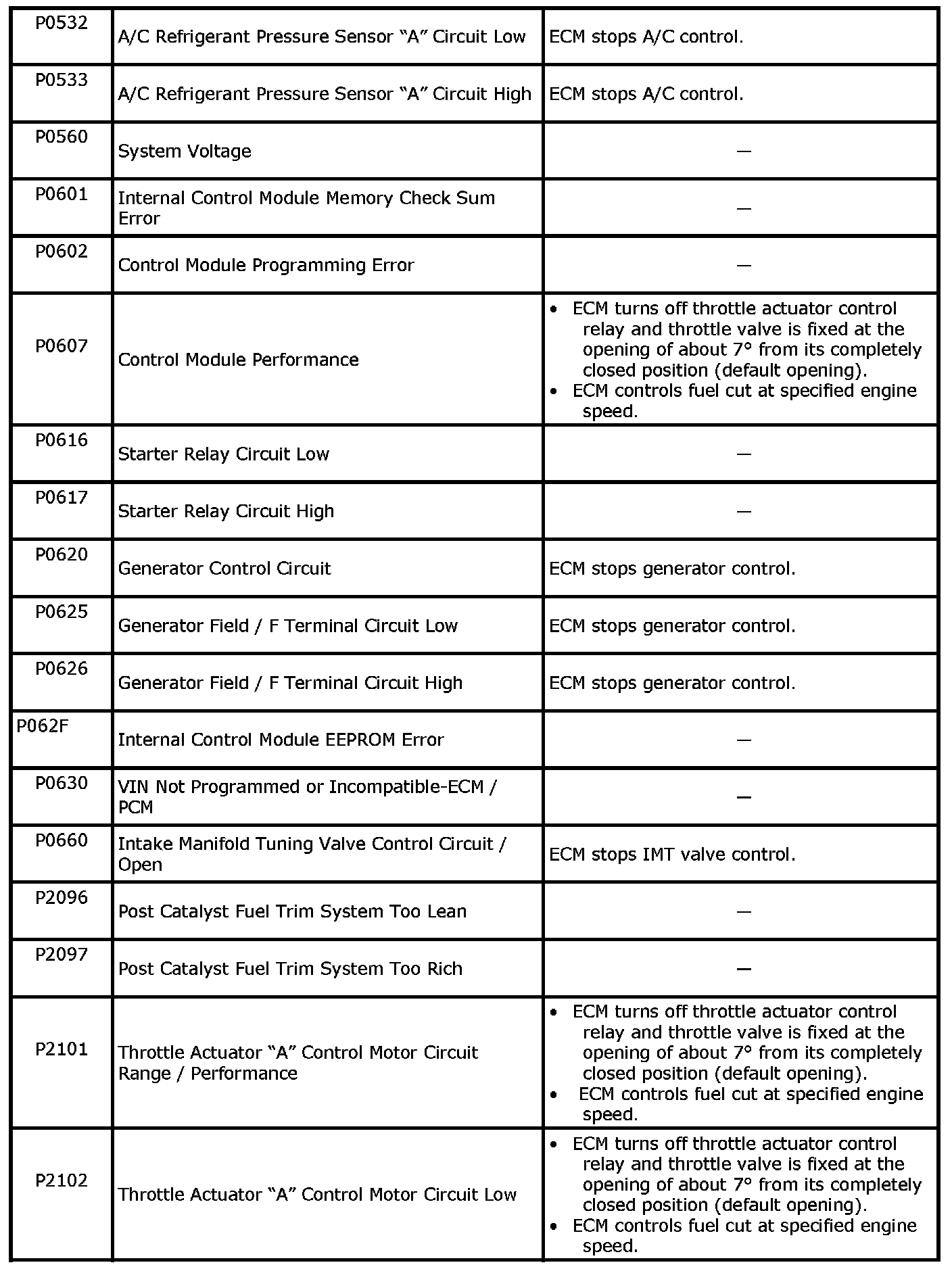

P0532-P2102:

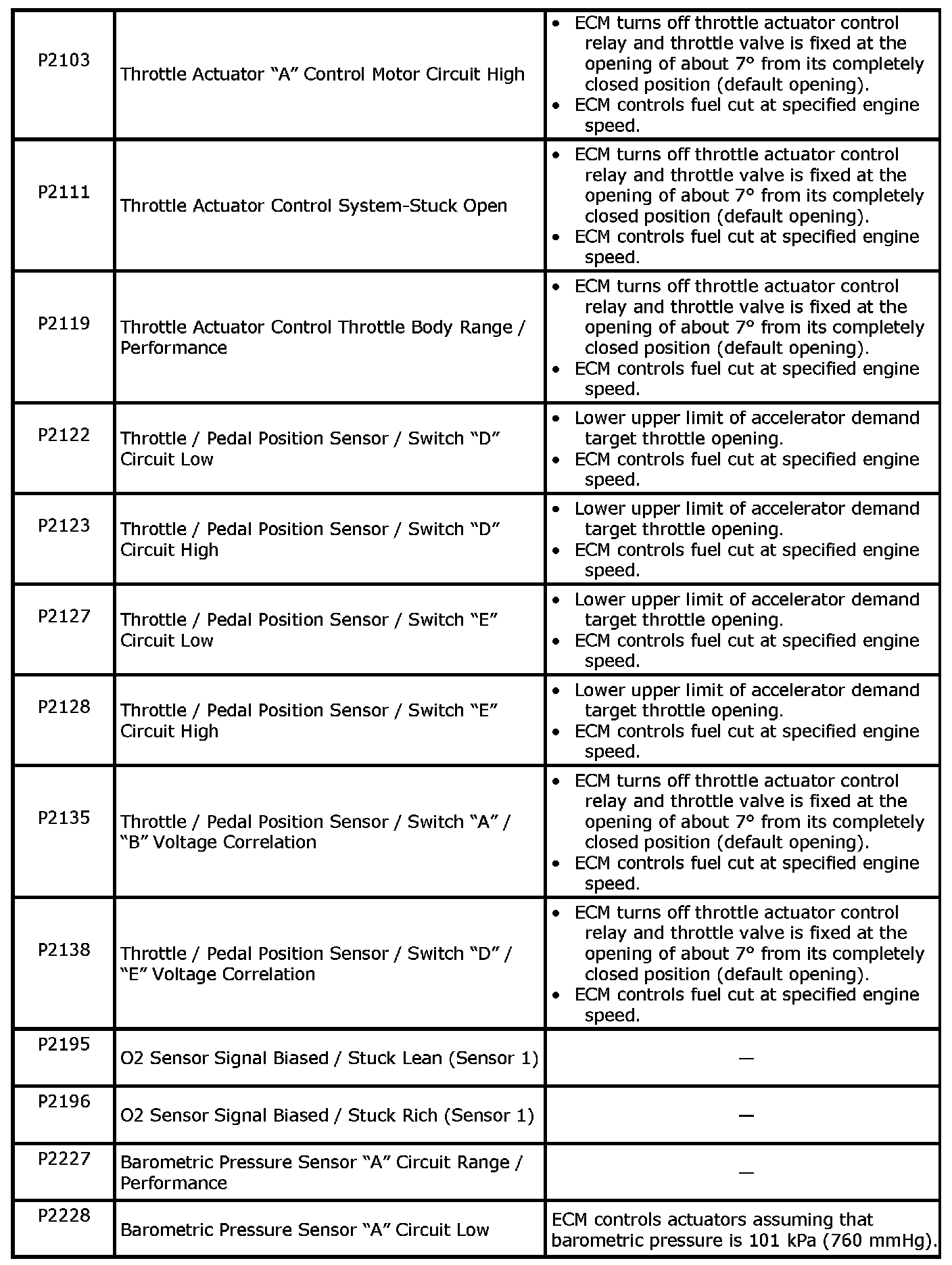

P2103-P2228:

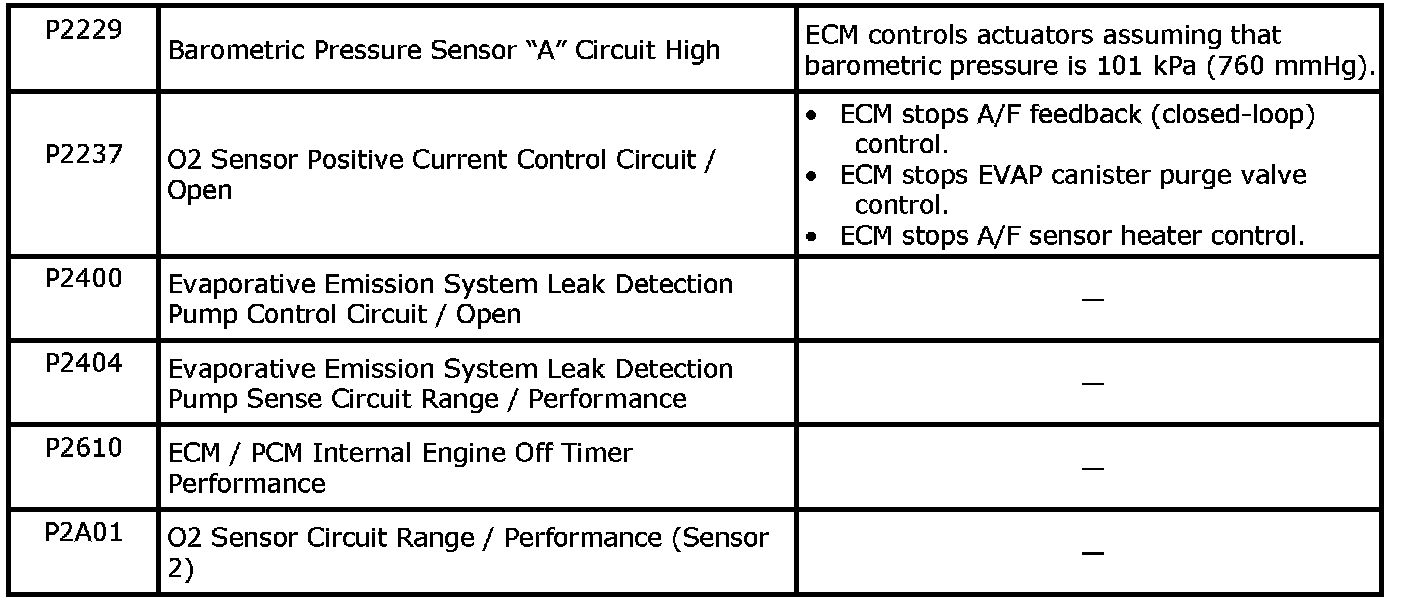

P2229-P2A01:

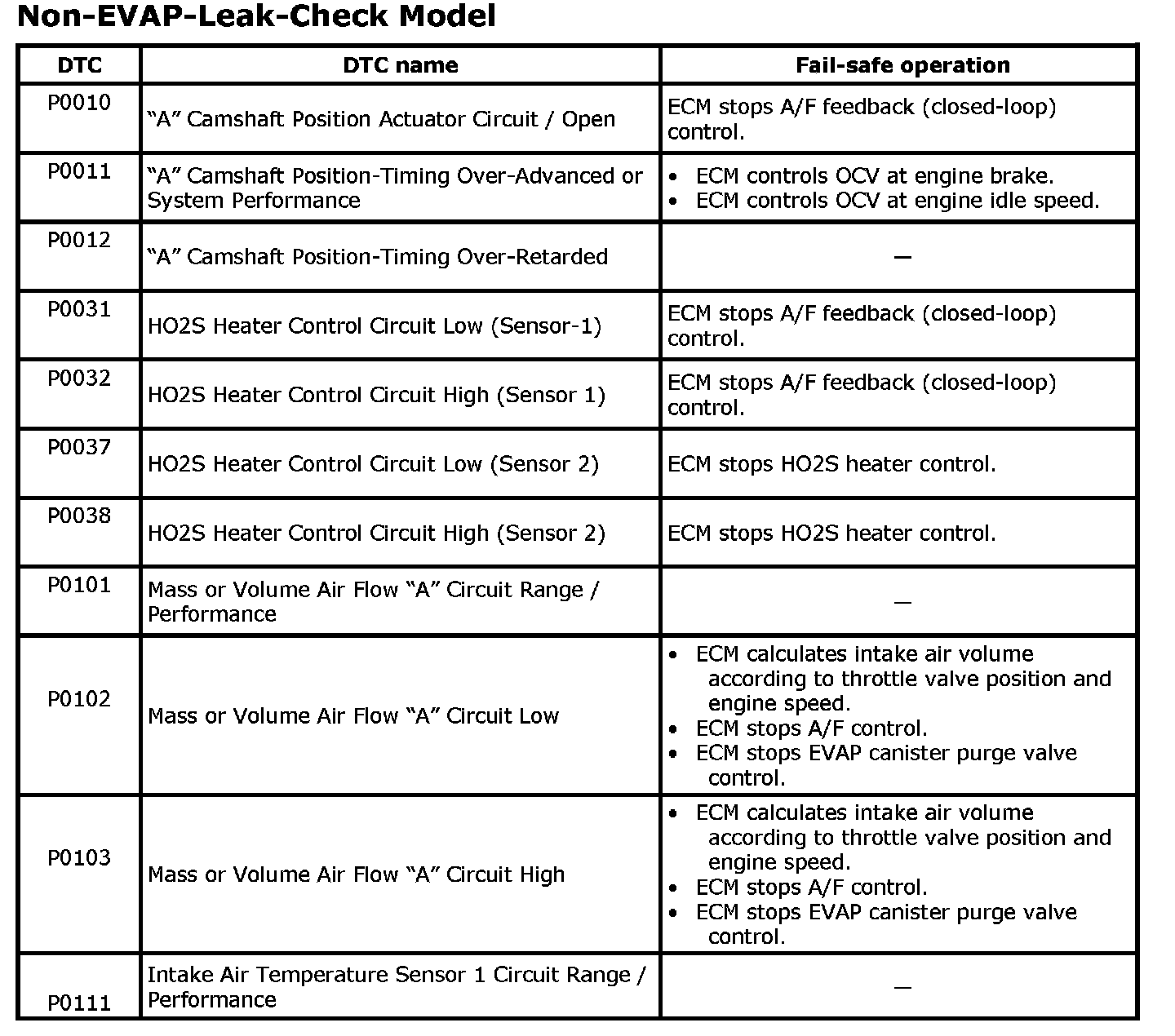

Non-EVAP-Leak-Check Model

P0010-P0111:

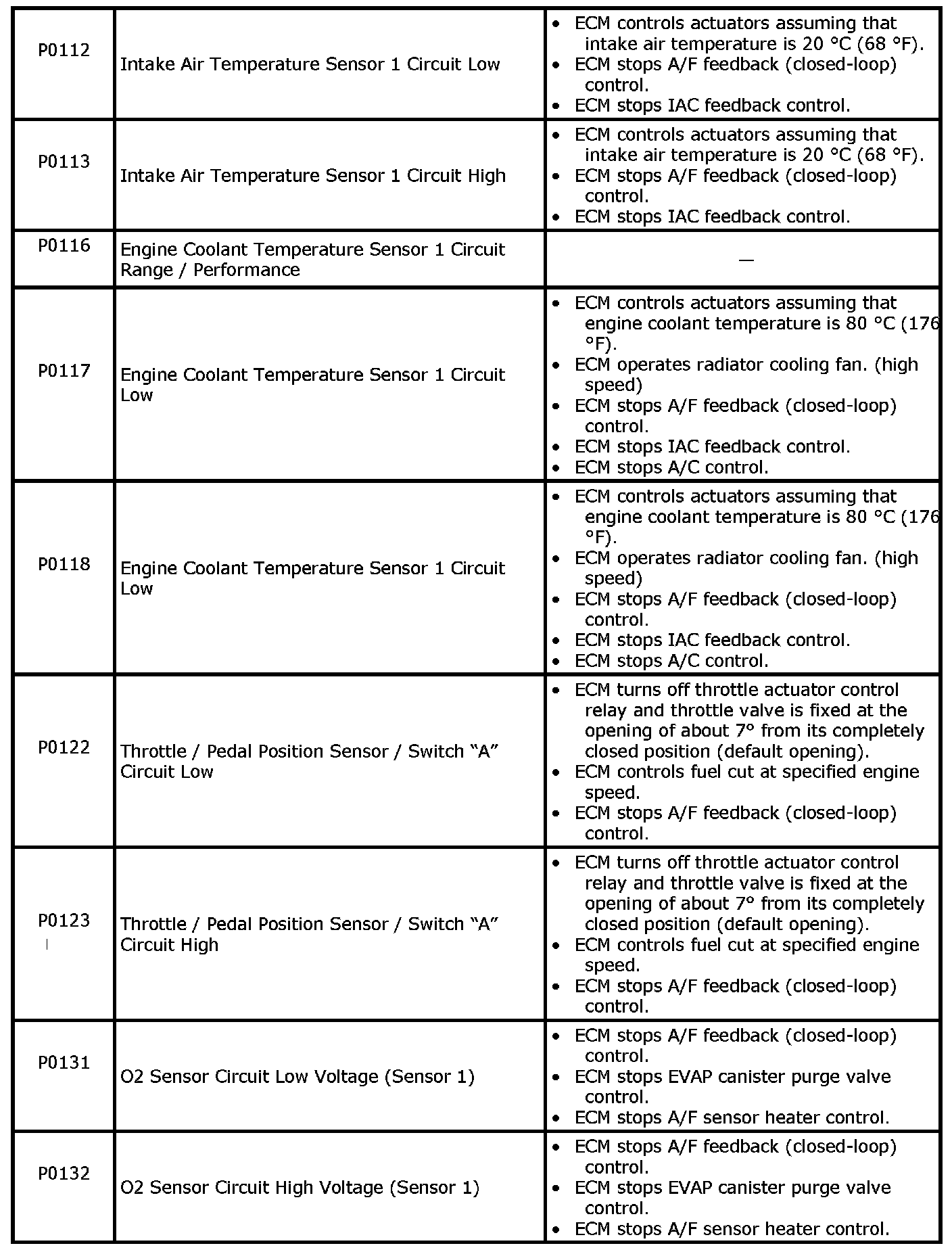

P0112-P0132:

P0133-P0340:

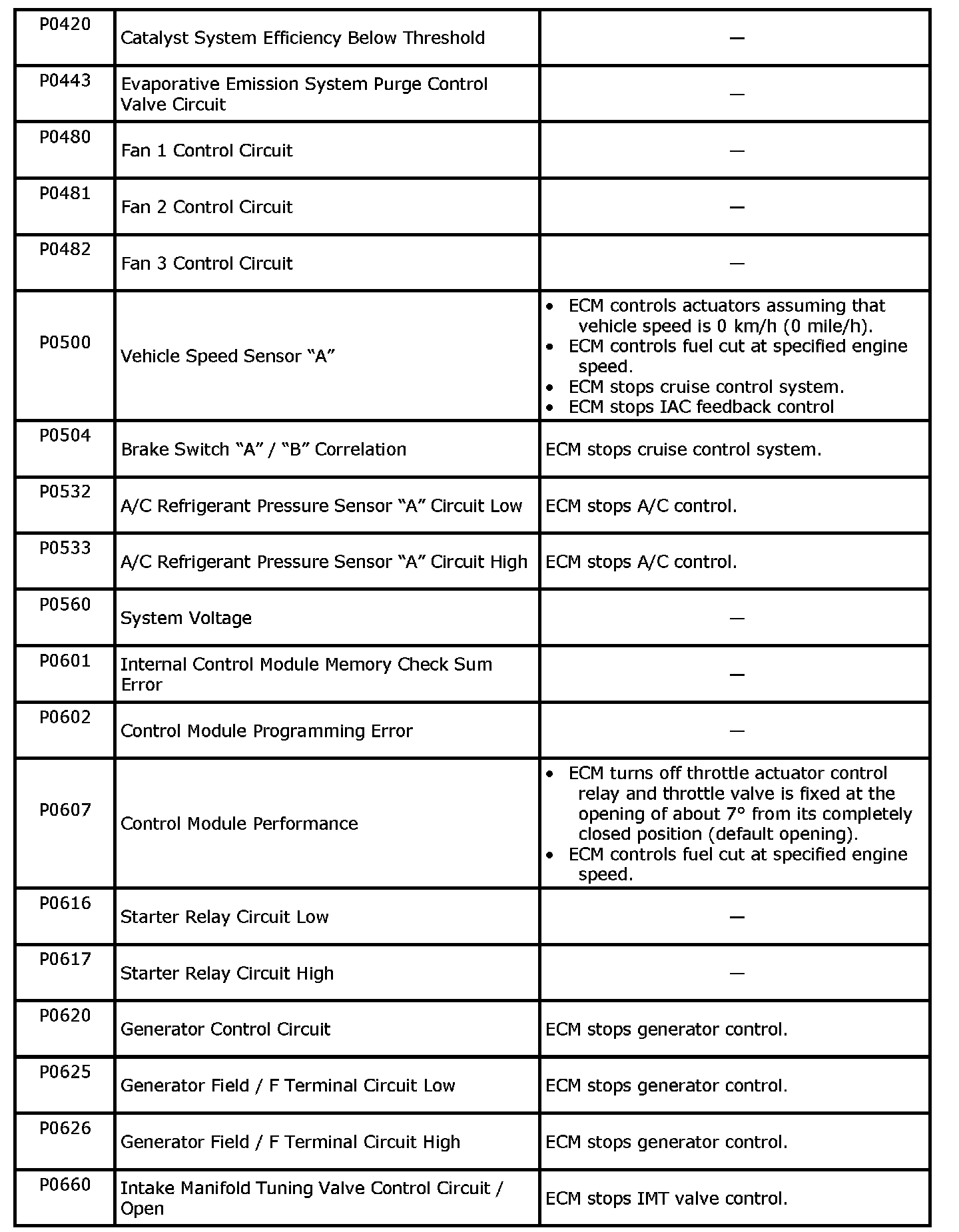

P0420-P0660:

P2101-P2138:

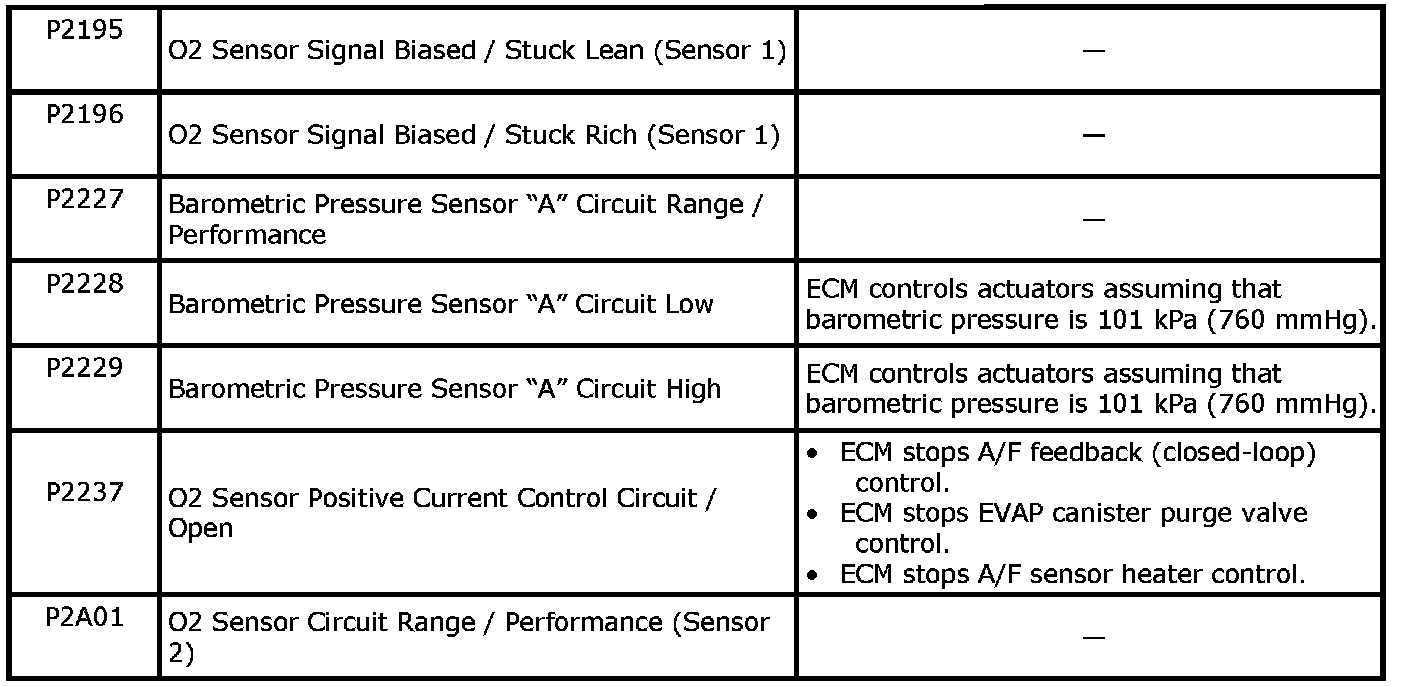

P2195-P2A01:
