HVAC - Air Conditioning System - Automatic A/C

DTC Table

NOTE:
- SAE code: Displayed on SUZUKI scan tool.
- LCD code: Displayed on HVAC control module.
- LCD on HVAC control module displays DTCs in order of descending priorities if several DTCs exist.
- DTC B1504-H, B1541, B1546, B1563, B1570, B1571 and B1580 (DTC 4.1, 50.1, 13.4, 13.6, 38.4, 39.4 and 62.6) are displayed as a current DTC only when a current malfunction is detected.

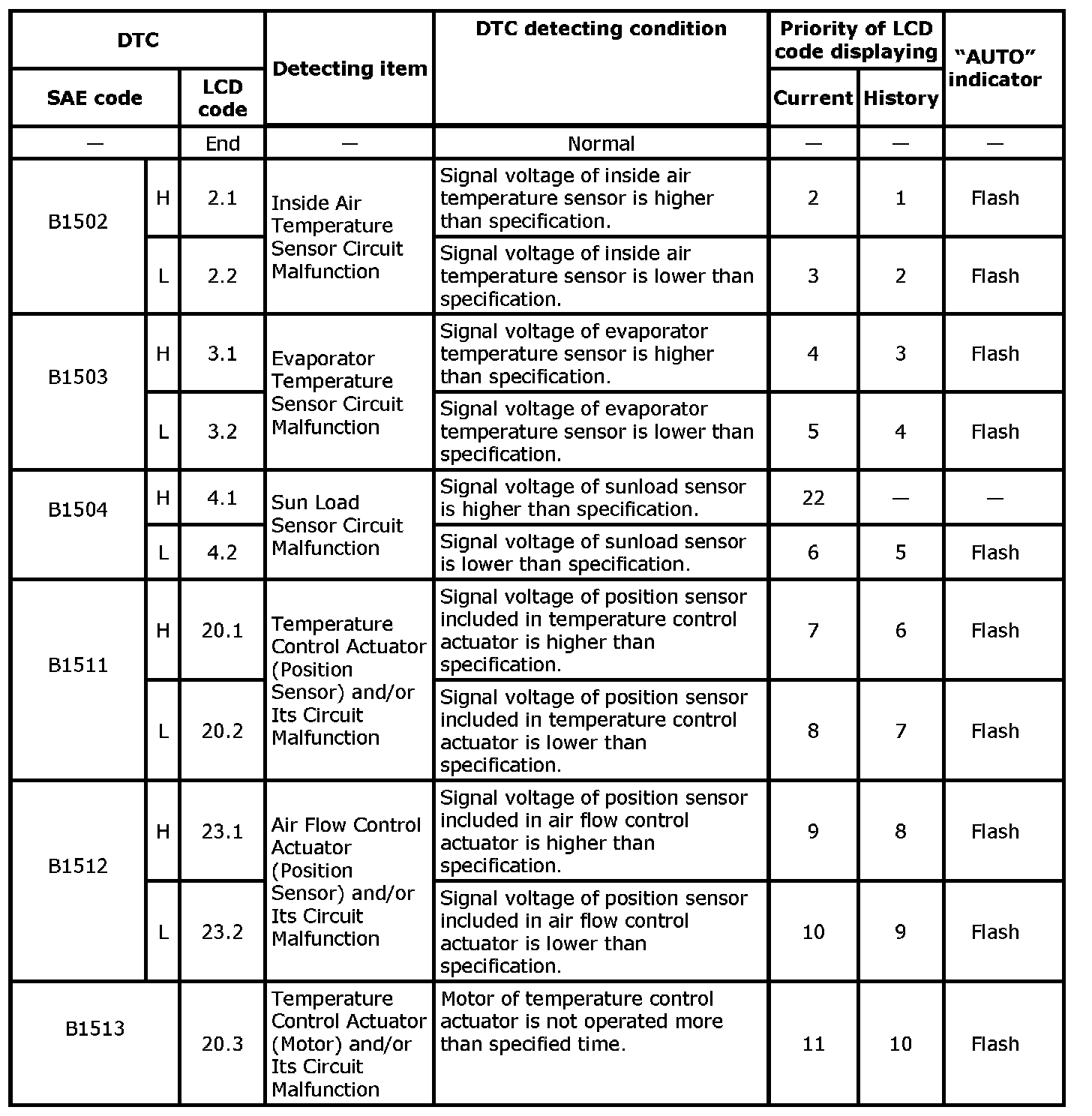

B1502-B1513:

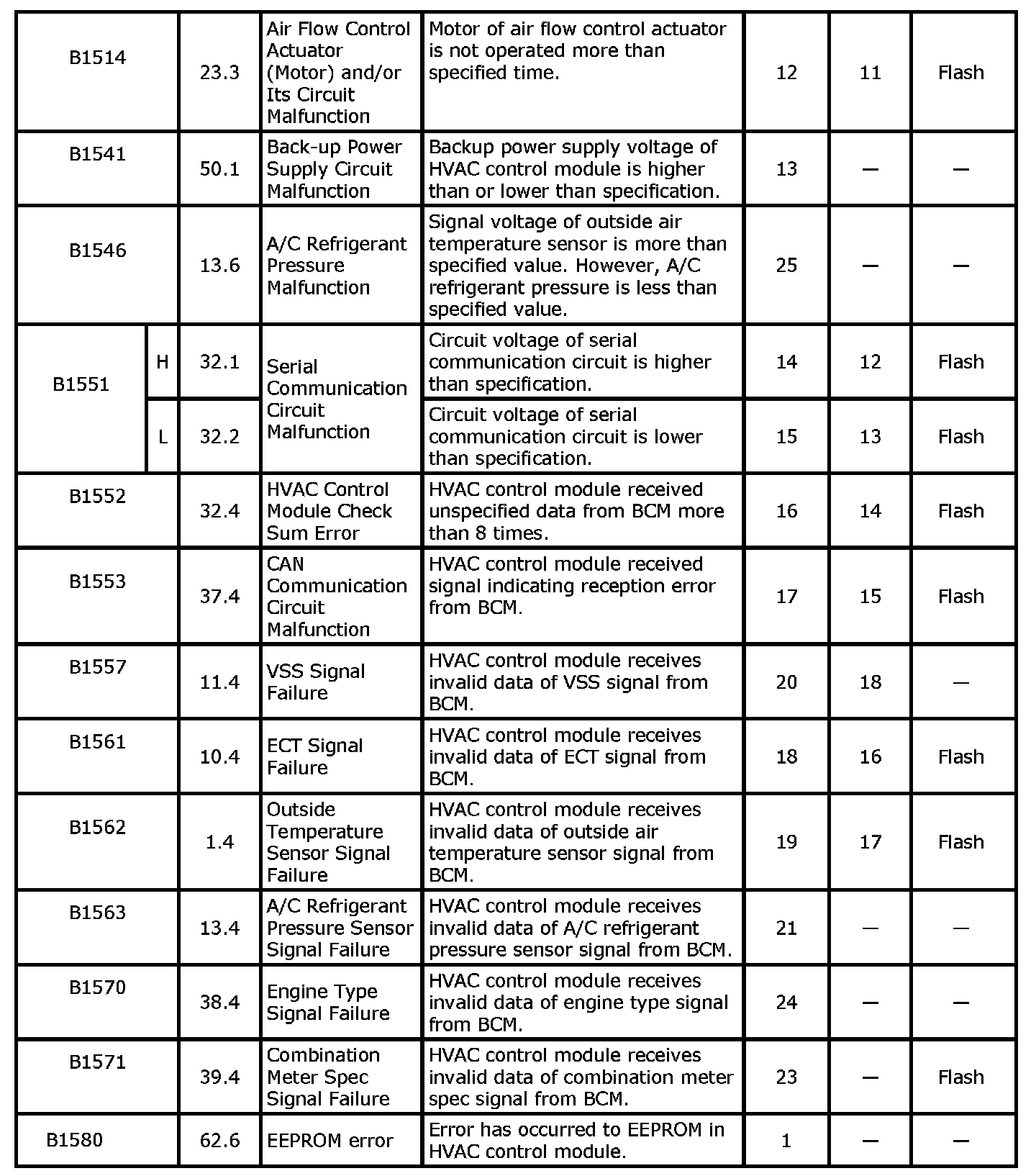

B1514-B1580:

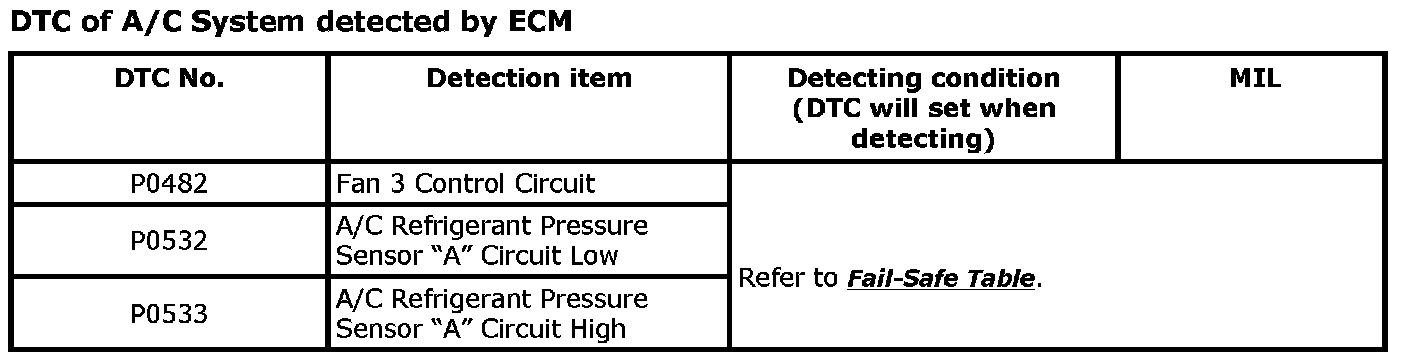

P0482-P0533:
