A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
DTC Table Cruise Control System
DTC Table Cruise Control System

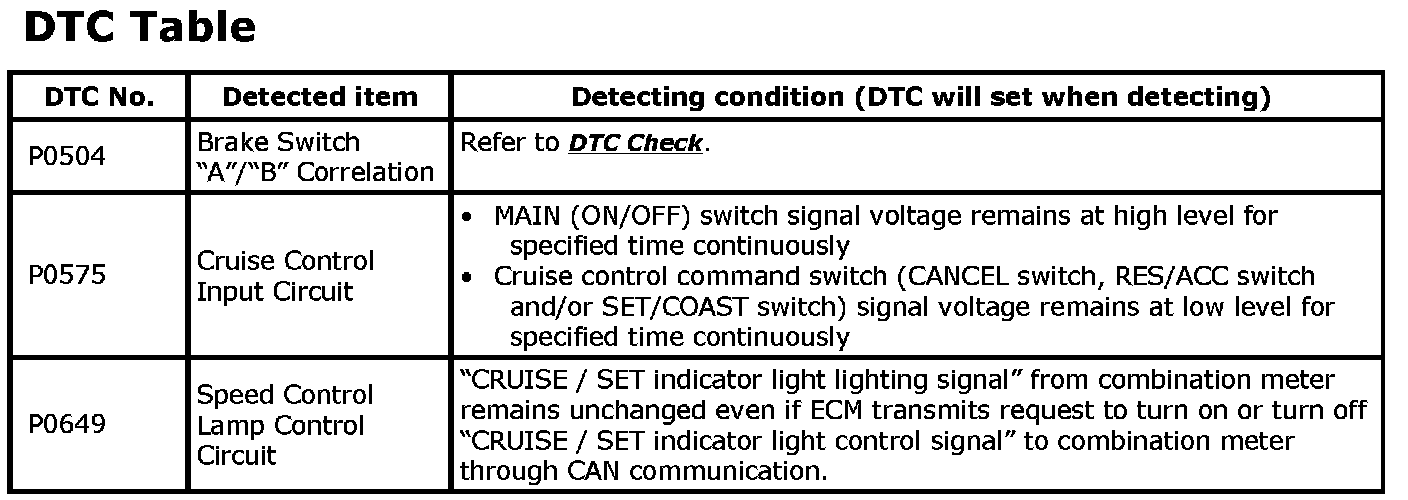

DTC Table
P0504-P0649:
NOTE:
During the engine running, DTC is detected by pushing the cruise control switch (MAIN (ON/OFF), CANCEL, RES/ACC, or SET/COAST) for more than specified period of time.
