A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
C Code Charts
>>
C1094
C1094
DTC C1091 / C1094: CAN Invalid Data from ECM / Torque Request Reject Status

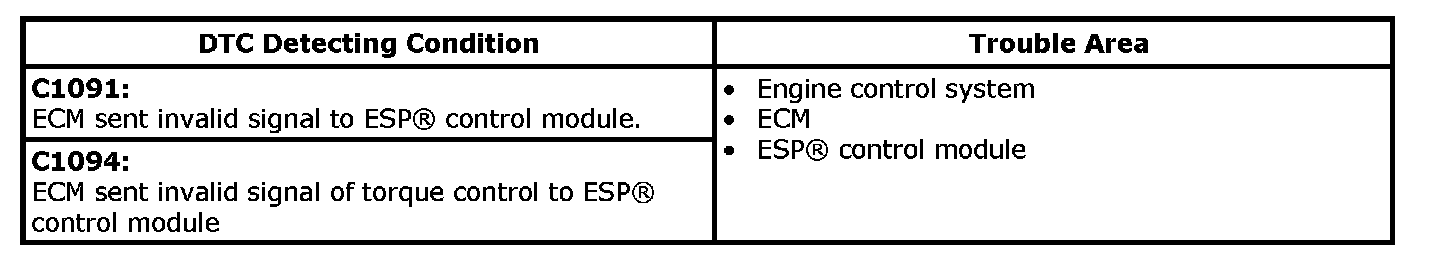

DTC Detecting Condition and Trouble Area

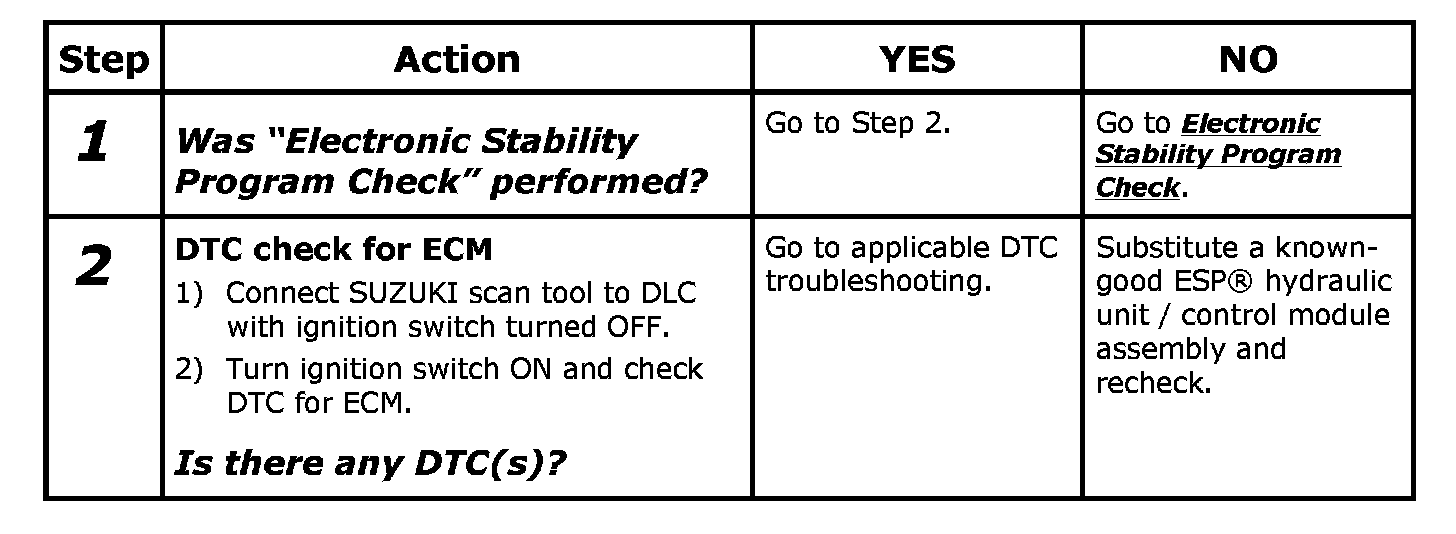

DTC Troubleshooting
Step 1-2:
