C1071
>>
Electronic Stability Program (ESP)
Electronic Stability Program (ESP)
DTC C1071: ESP(R) Control Module Internal Defect

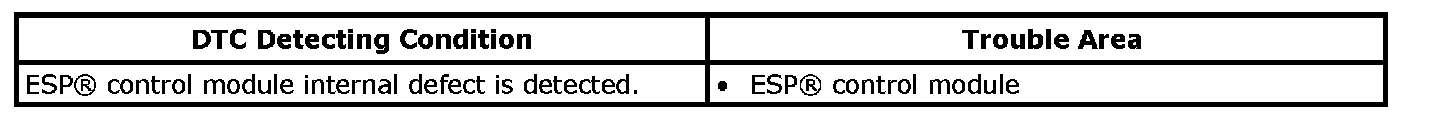

DTC Detecting Condition and Trouble Area

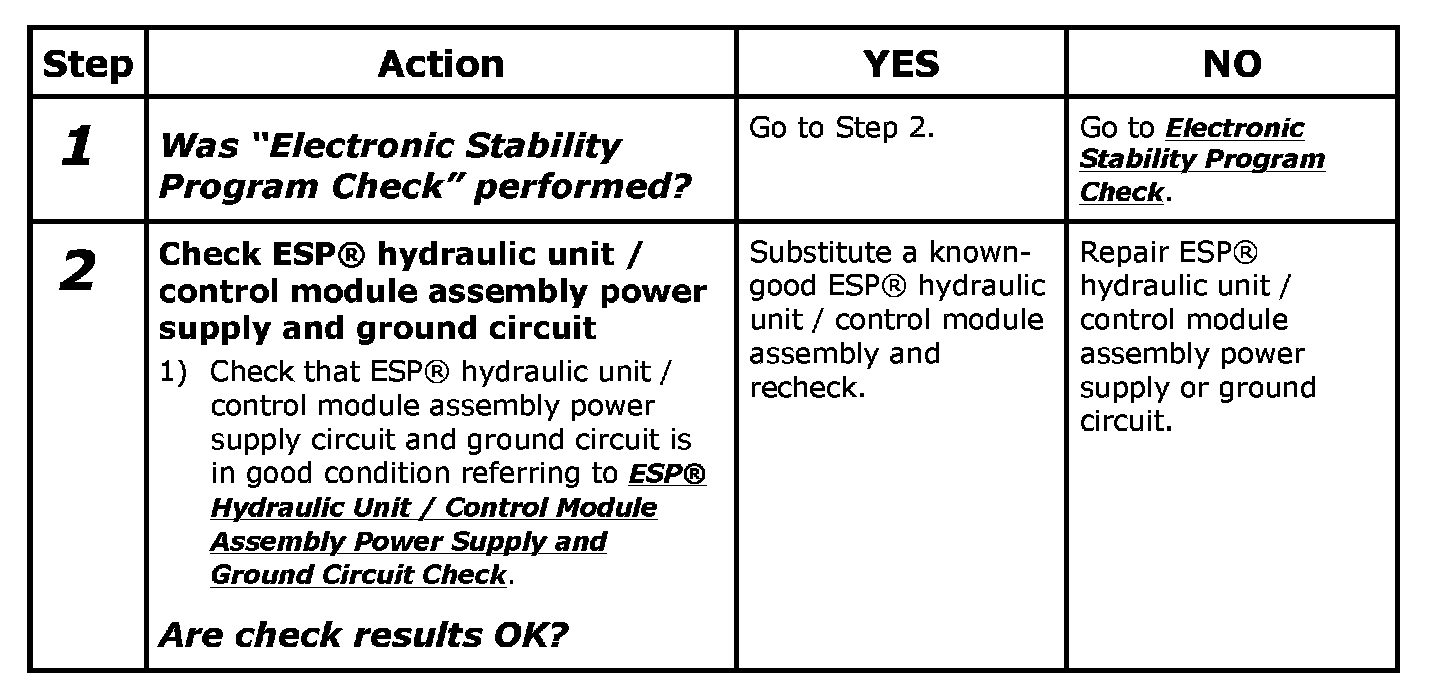

DTC Troubleshooting
Step 1-2:
