Electronic Stability Program (ESP)

DTC C1063: Solenoid Valve Power Supply Driver Circuit Failure

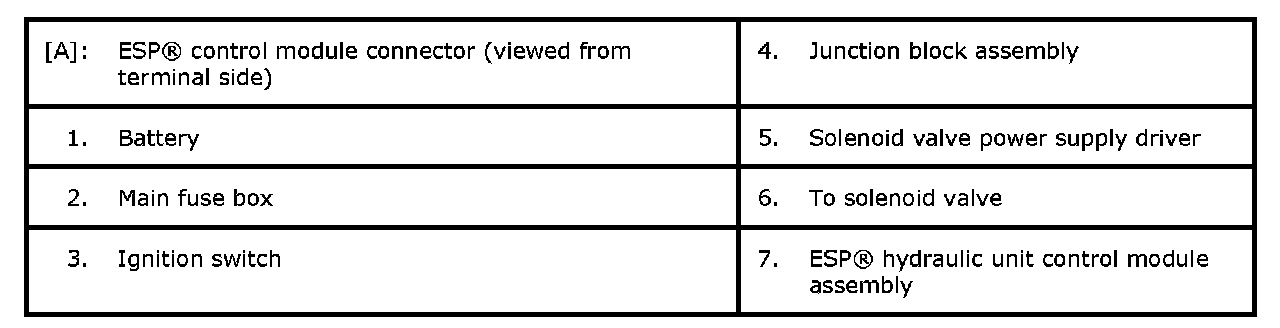

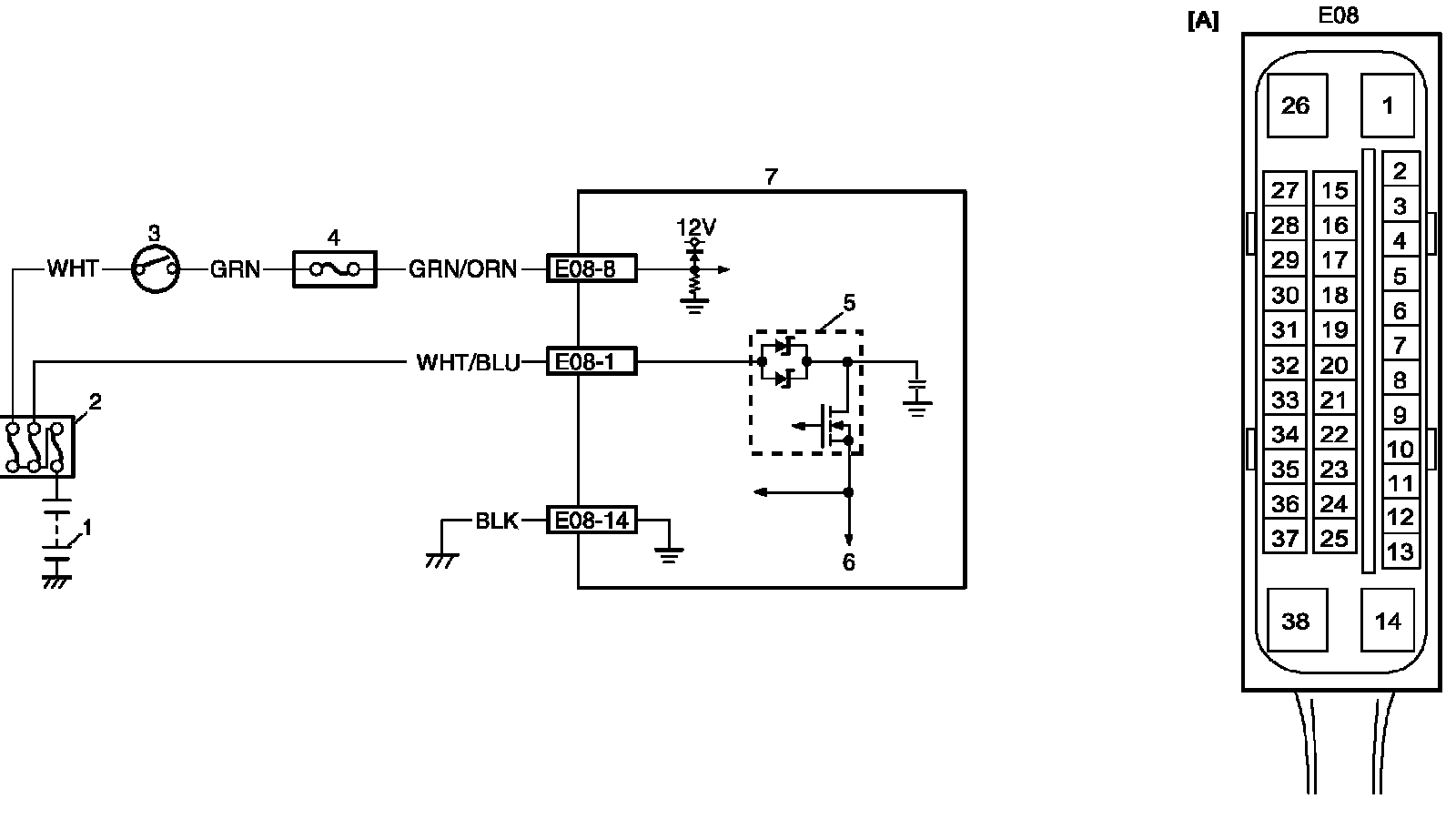

Wiring Diagram

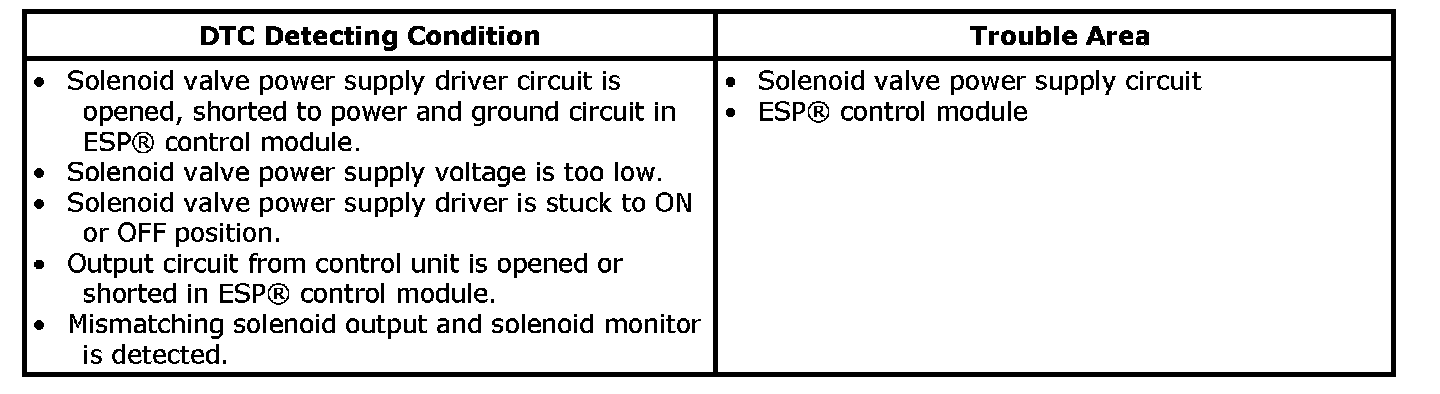

DTC Detecting Condition and Trouble Area

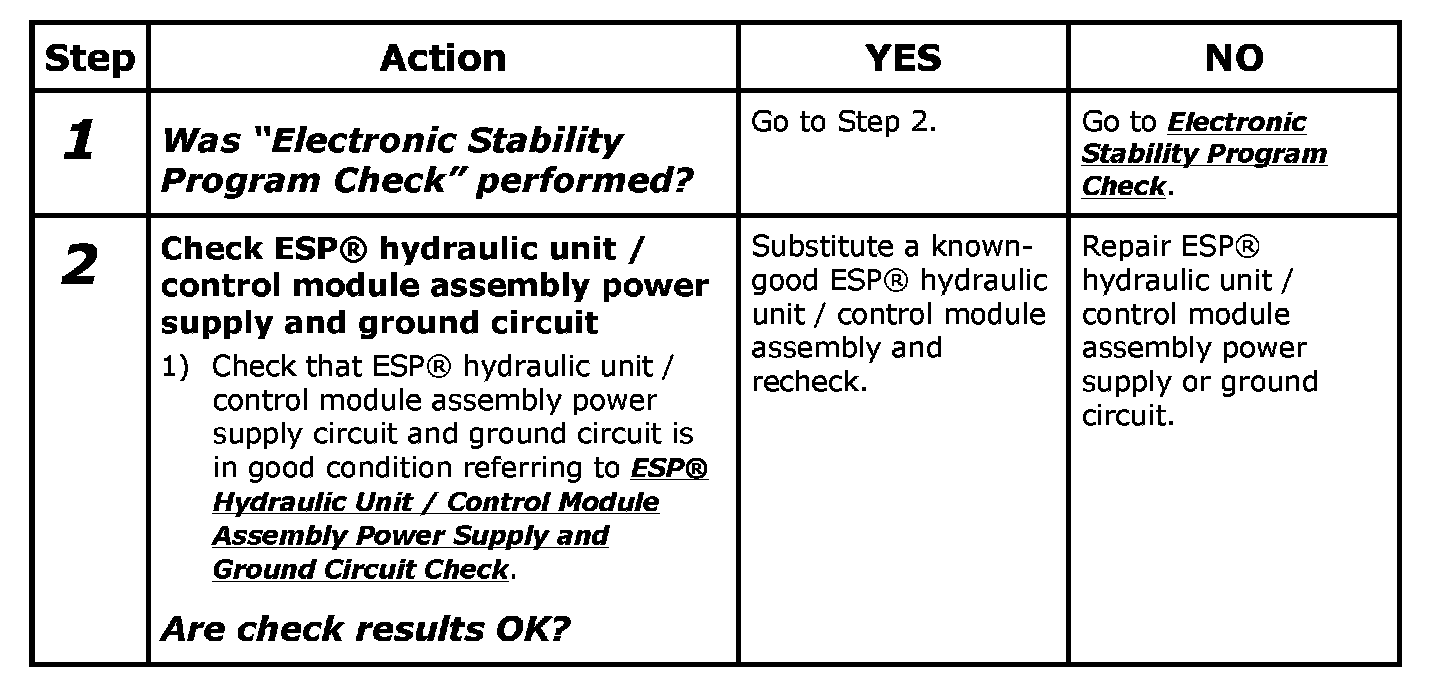

DTC Troubleshooting
