ABS

DTC C1061: Pump Motor and/or Motor Driver Circuit Failure

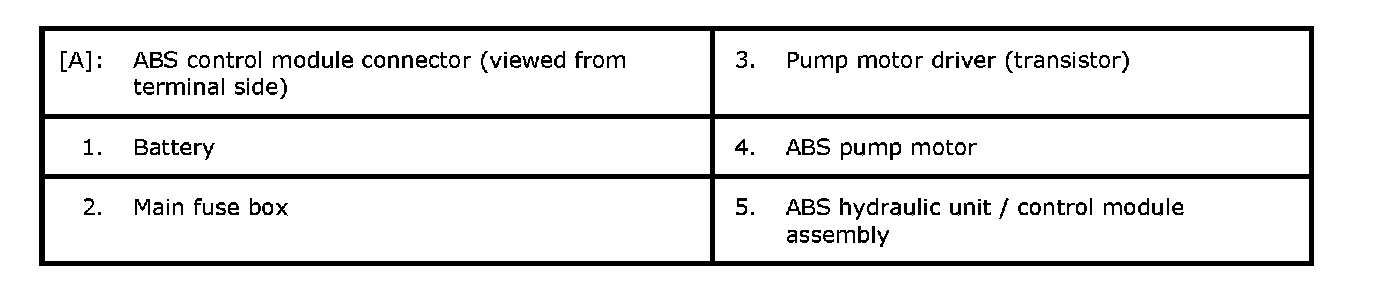

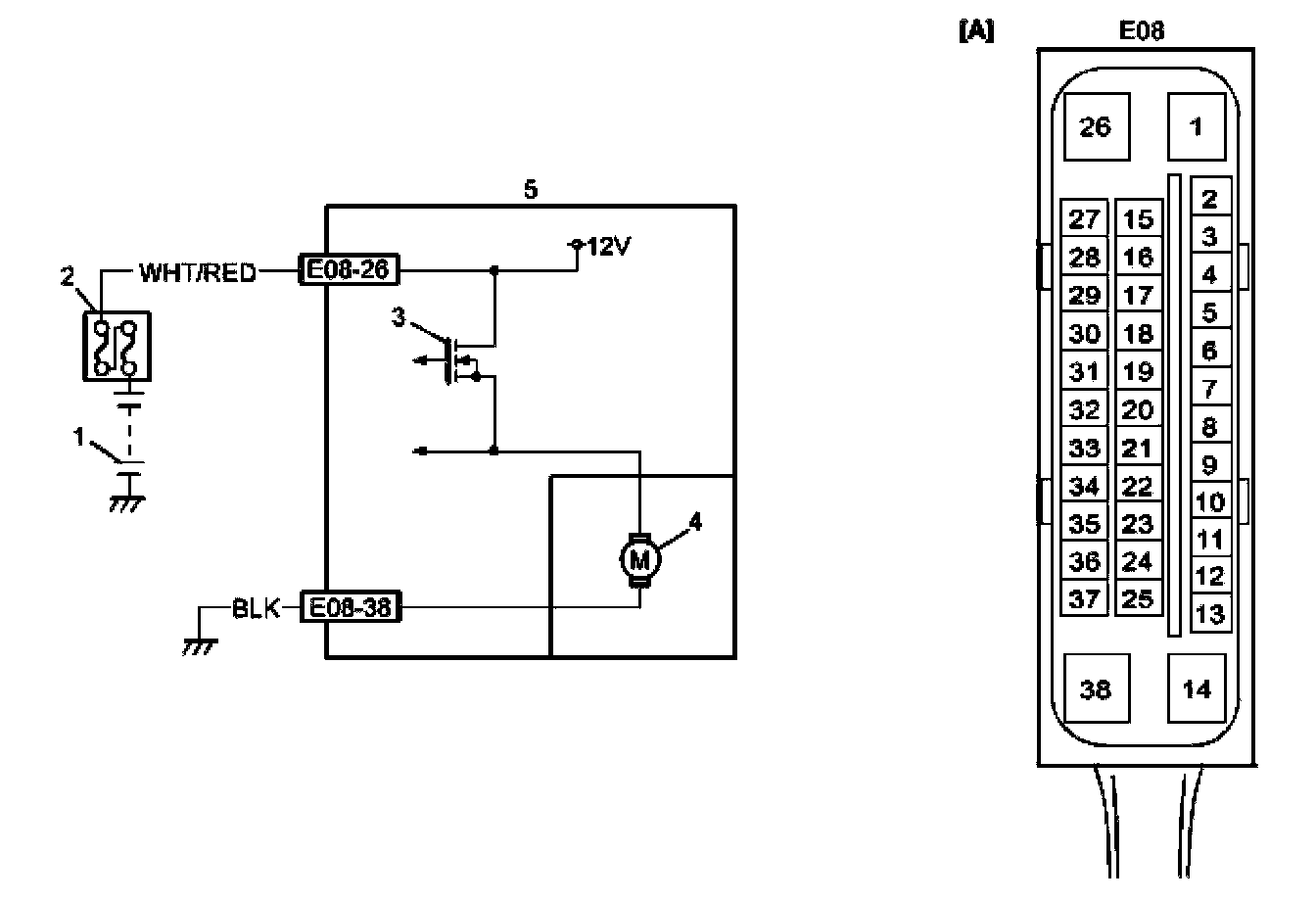

Wiring Diagram

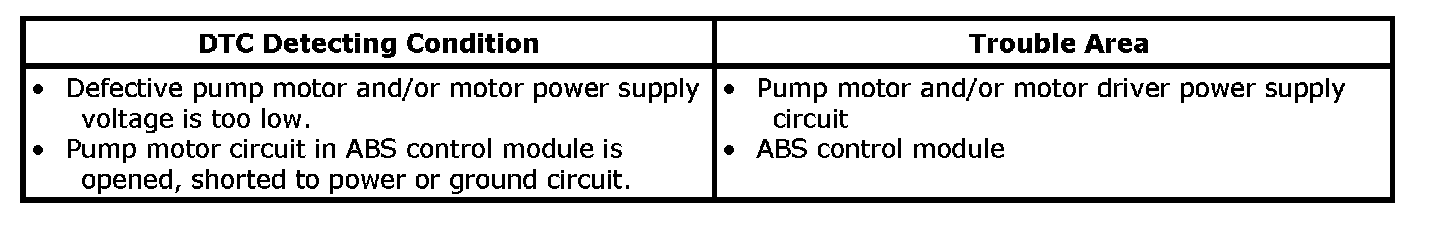

DTC Detecting Condition and Trouble Area

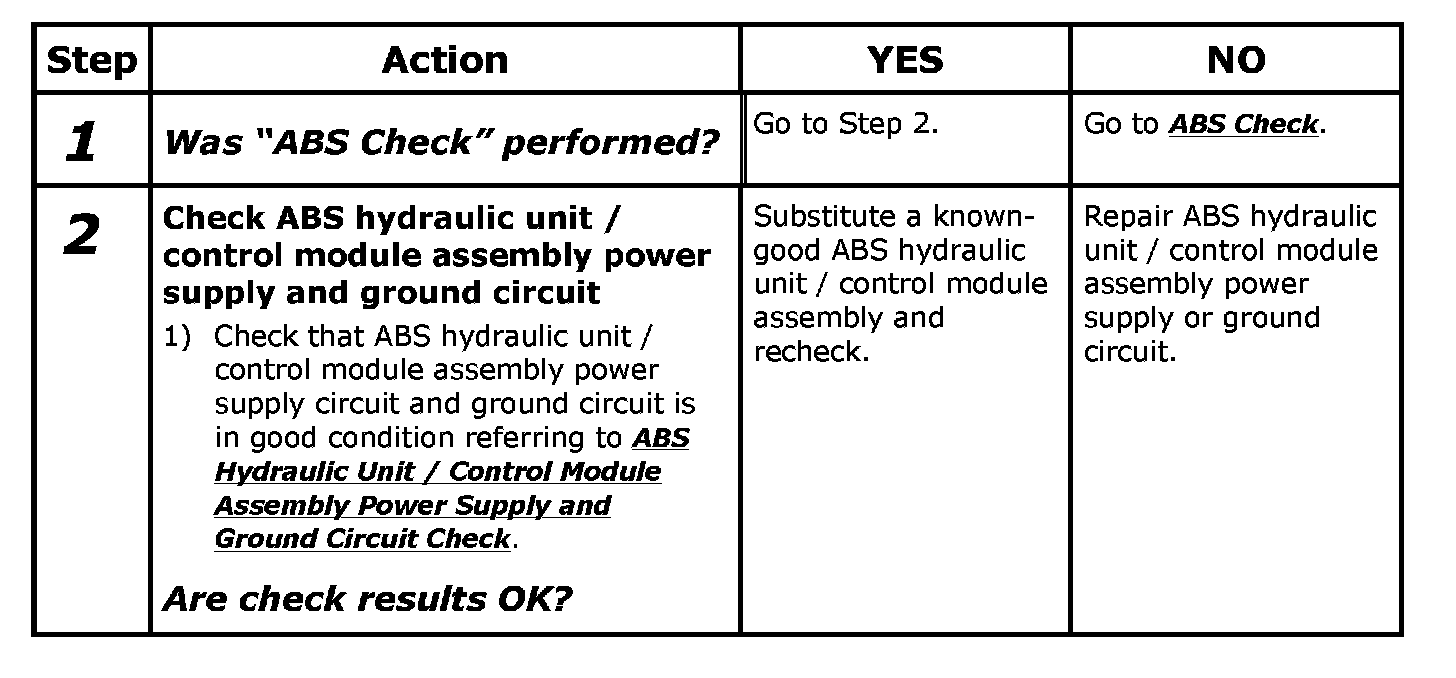

DTC Troubleshooting

Step 1-2:
