Electronic Stability Program (ESP)

DTC C1033: Wheel Speed Sensor Deviation

Wiring Diagram
Refer to DTC C1021 / C1022 / C1025 / C1026 / C1031 / C1032 / C1035 / C1036: Wheel Speed Sensor Circuit Failure / Range / Performance. C1021

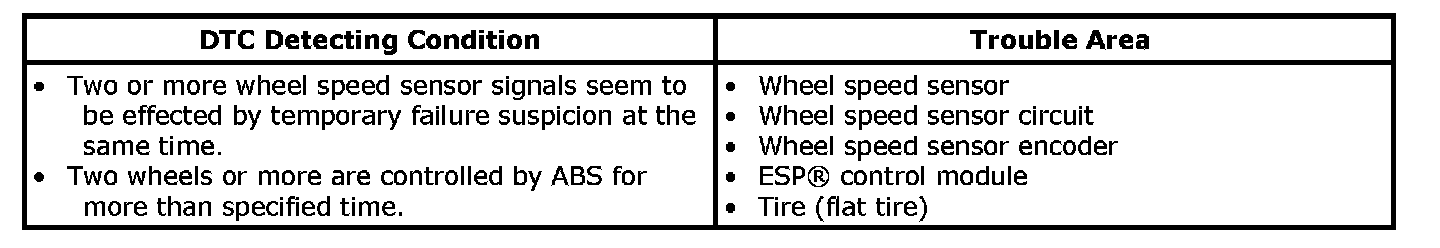

DTC Detecting Condition and Trouble Area





DTC Troubleshooting

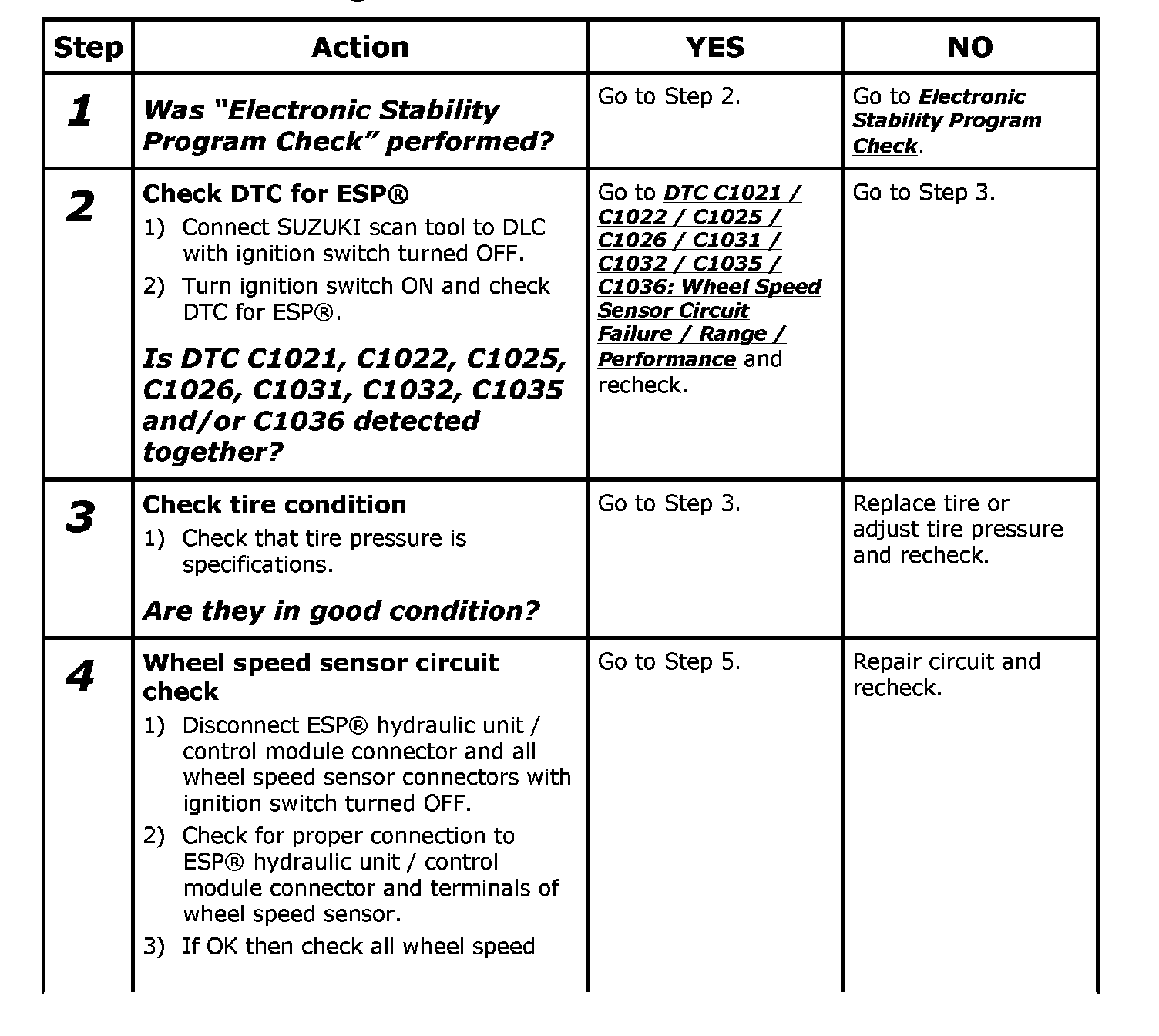

Step 1-3:

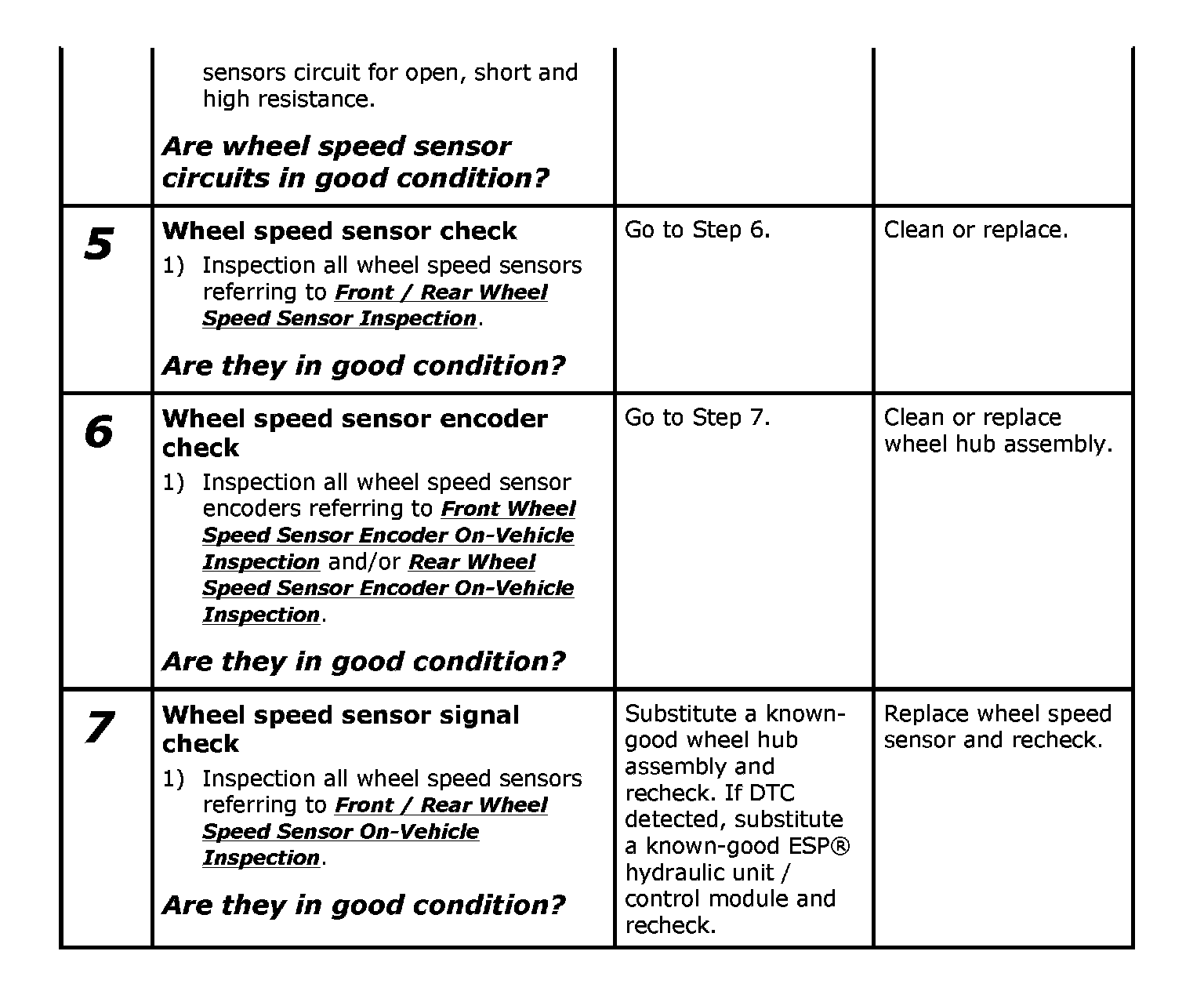

Step 4-7:
