A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
B Code Charts
>>
B1571
B1571

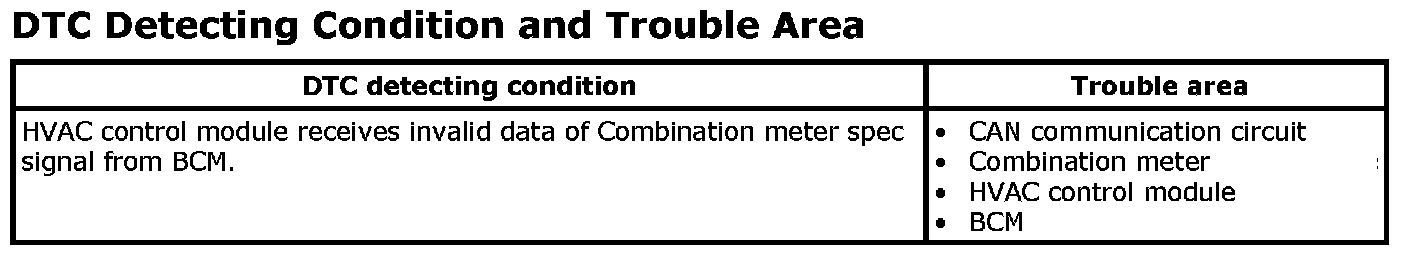

DTC B1571: Combination Meter Spec Signal Failure

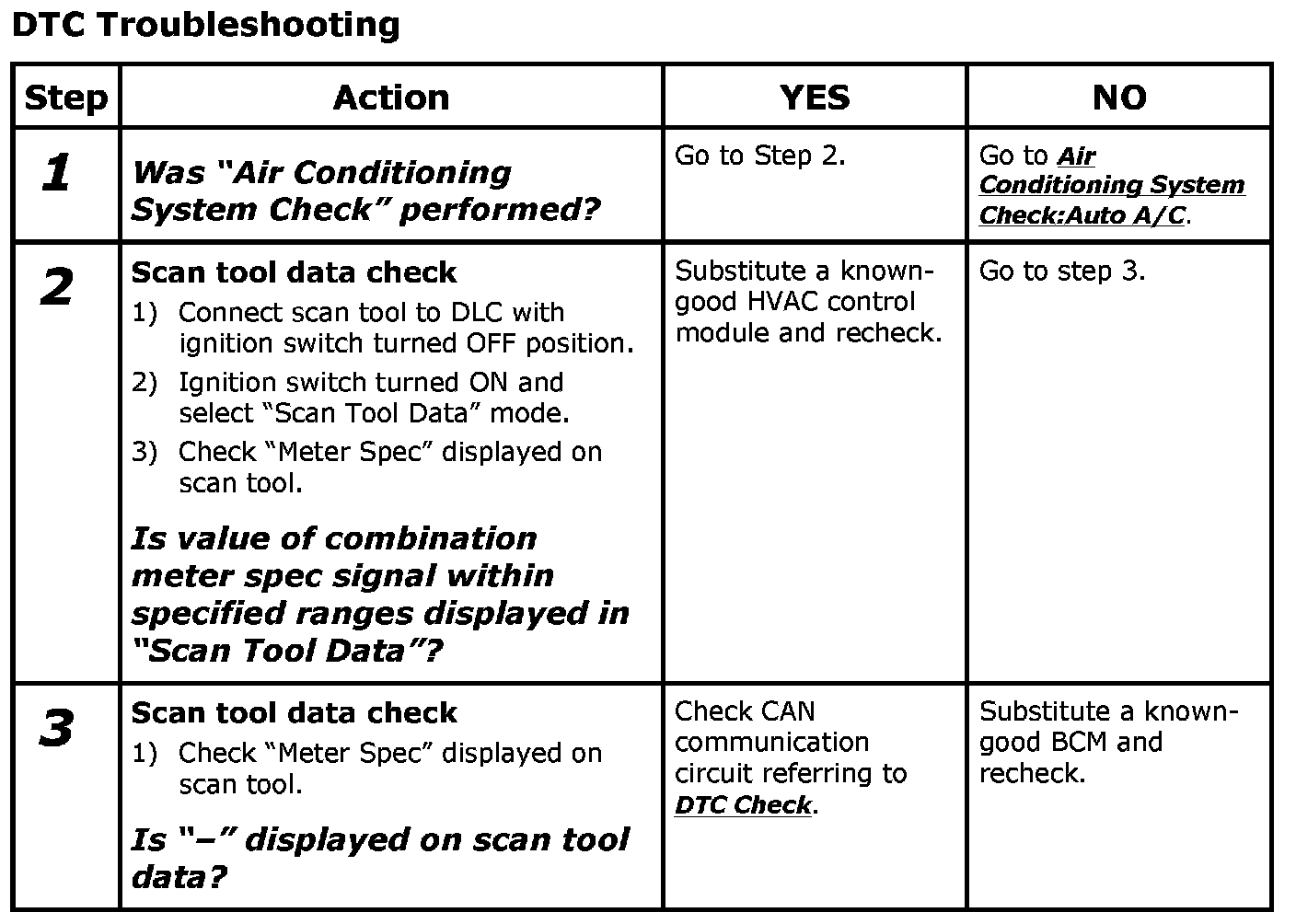

Step 1-3:
