FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Suzuki
>>
2010
>>
SX4 2WD L4-2.0L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
B Code Charts
>>
B1552
B1552

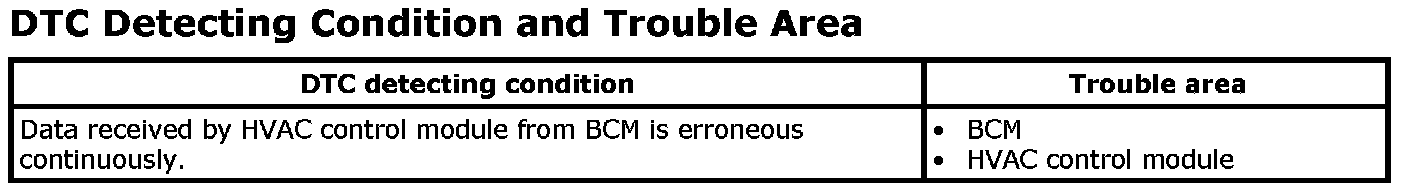

DTC B1552: HVAC Control Module Check Sum Error

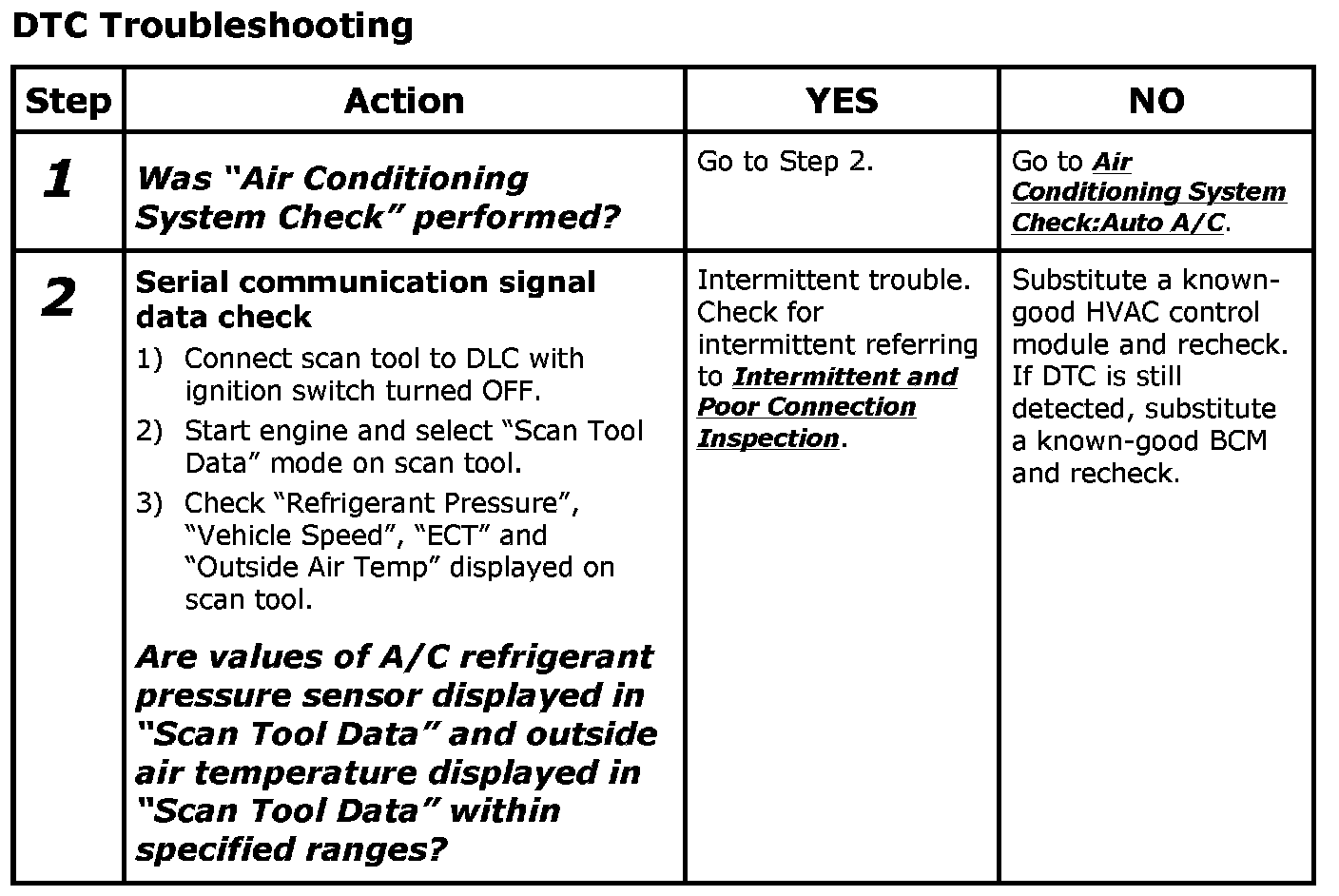

Step 1-2:
