B1513

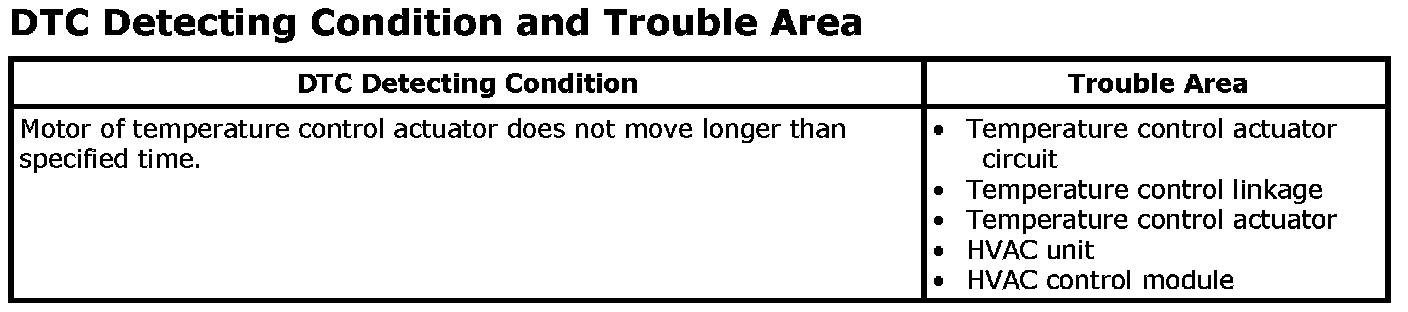

DTC B1513: Temperature Control Actuator (Motor) and/or Its Circuit Malfunction

Wiring Diagram

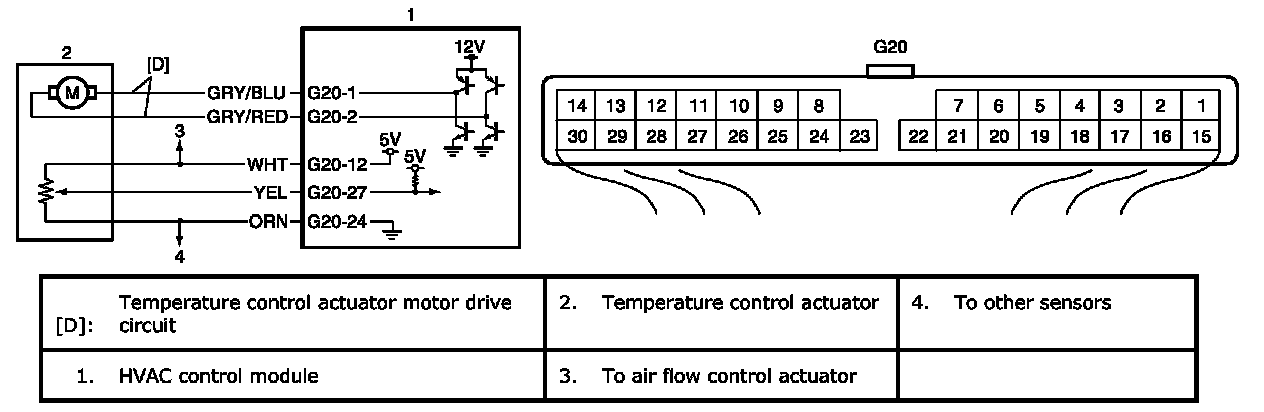

Wiring Diagram:

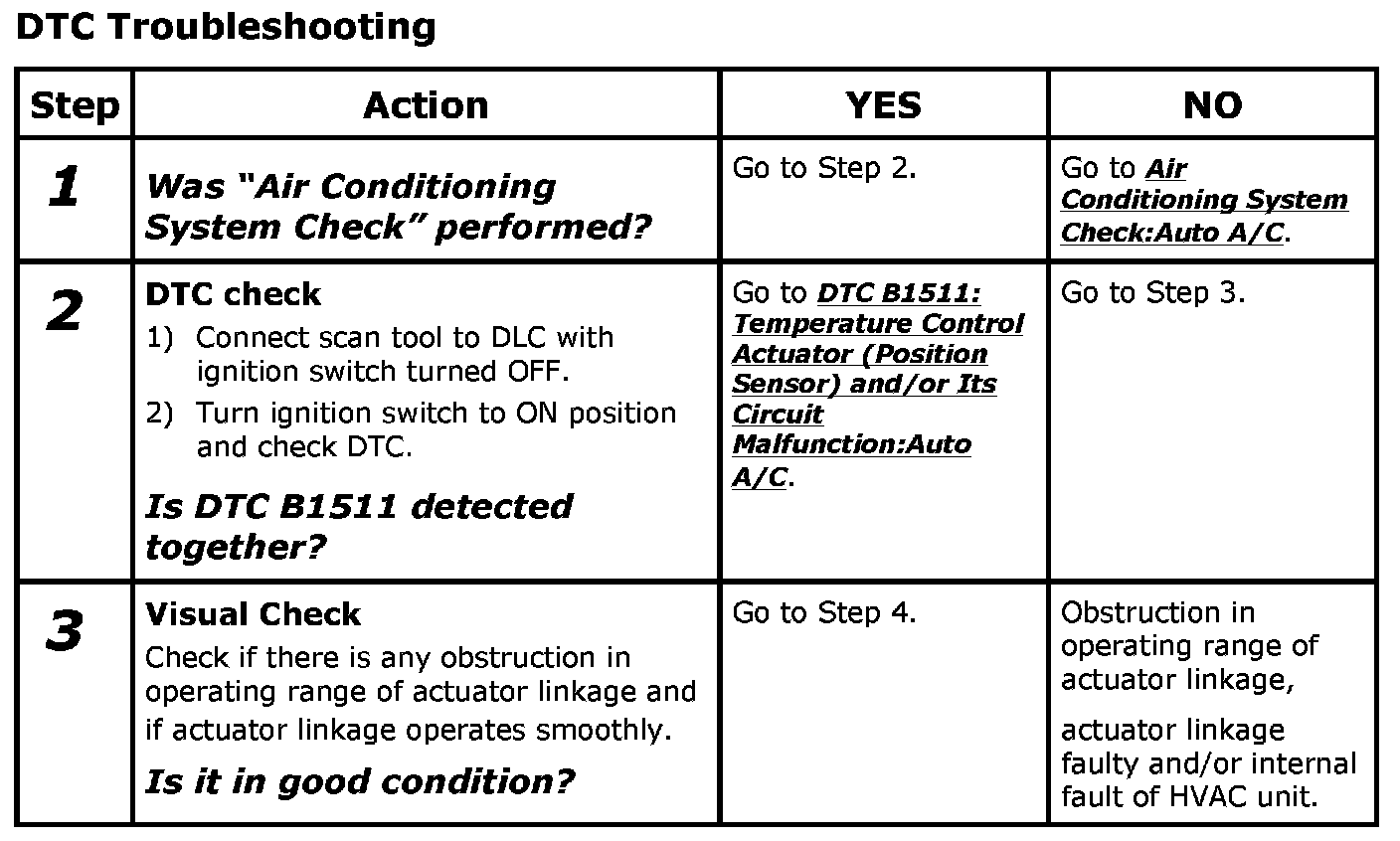

Step 1-3:

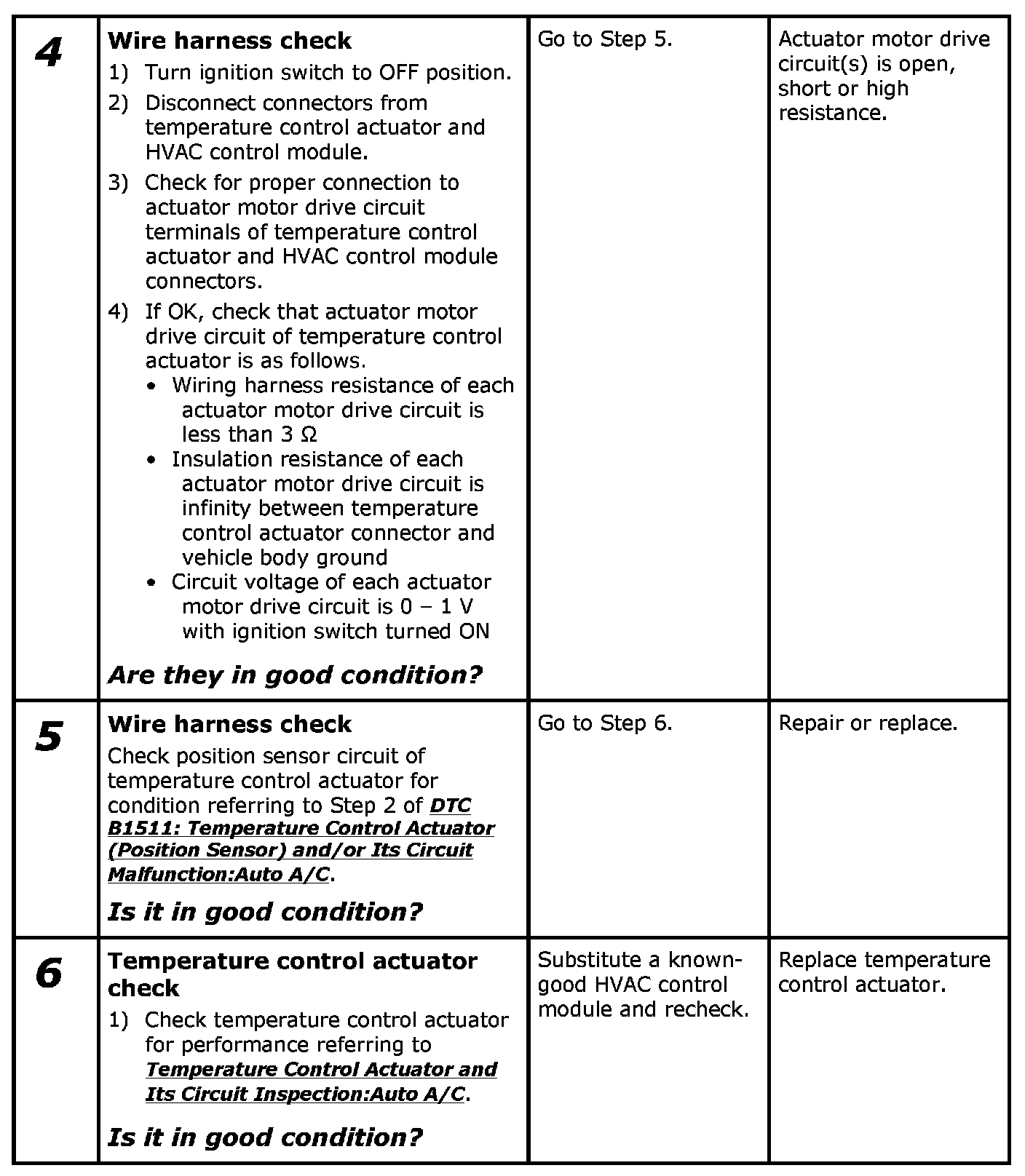

Step 4-6:
