B1504
DTC B1504: Sunload Sensor Circuit MalfunctionWiring Diagram

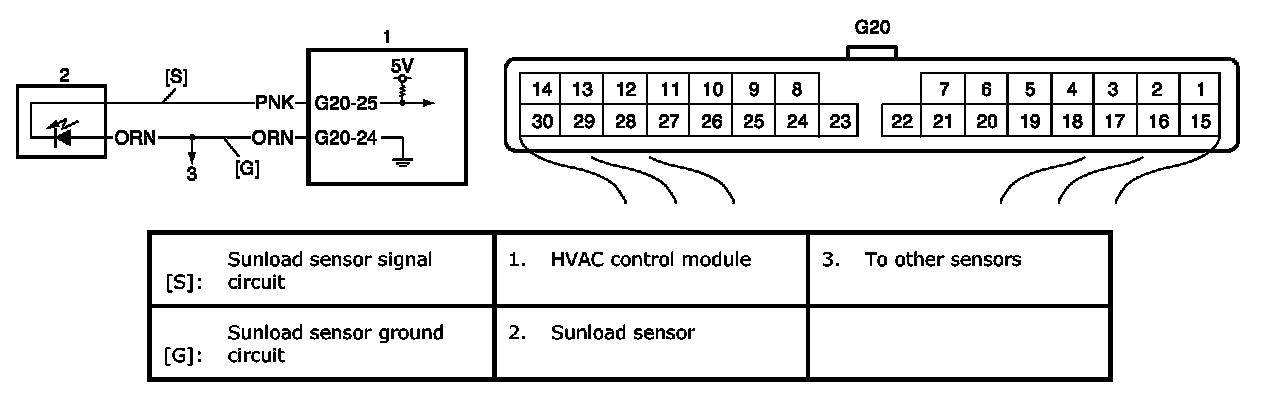

Wiring Diagram:

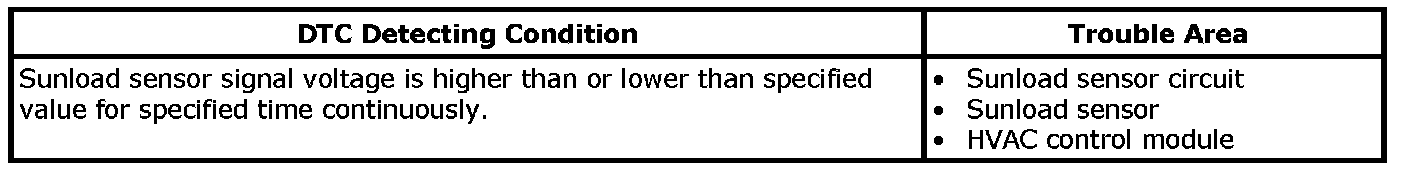

DTC Detecting Condition and Trouble Area
NOTE: When DTC B1502, B1503, B1511 and B1512 are indicated together, it is possible that sensor ground circuit is open.

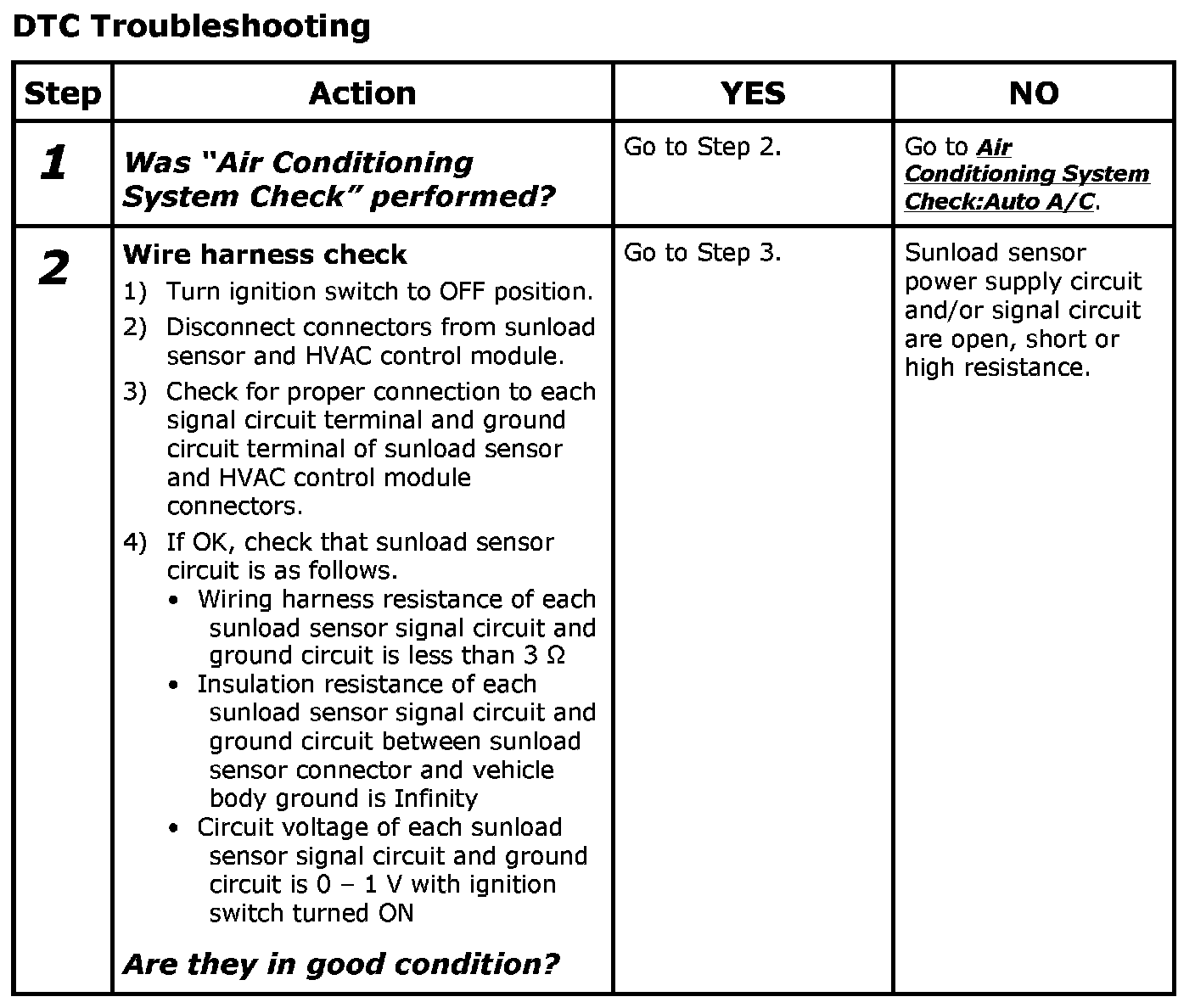

Step 1-2:

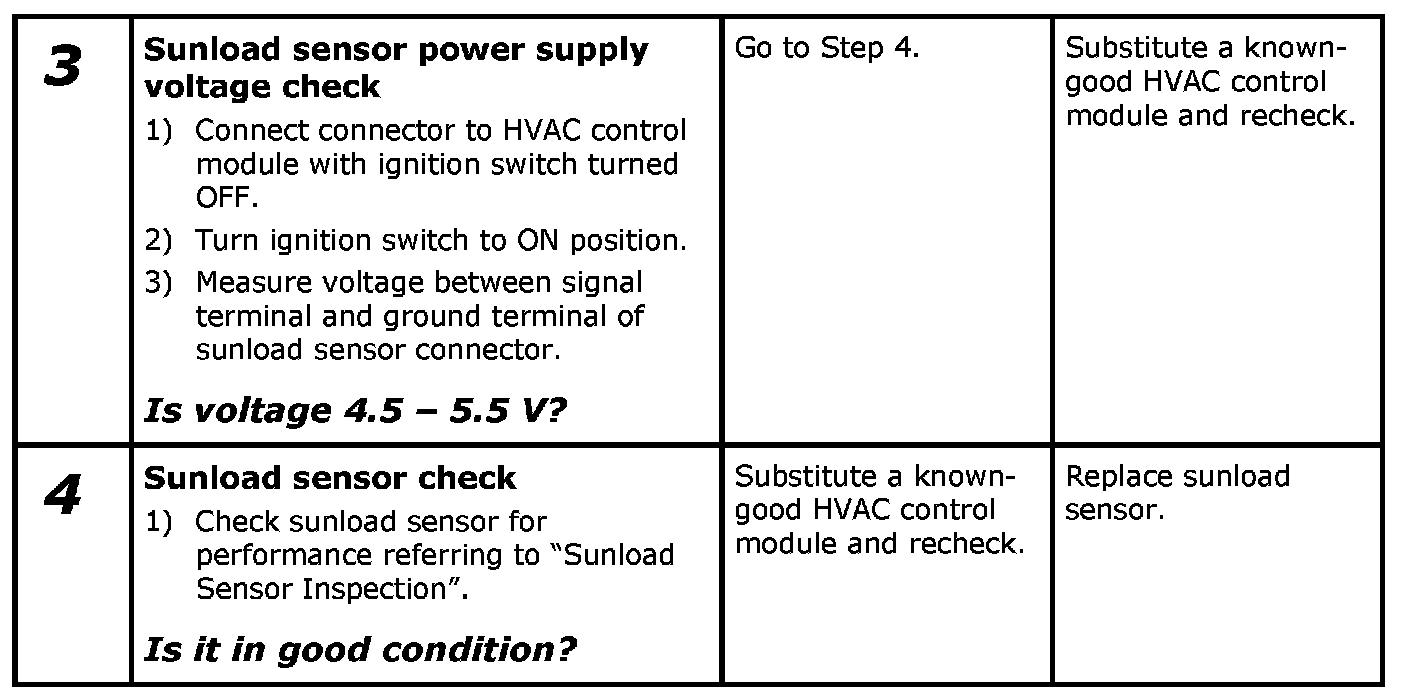

Step 3-4:
