B1502

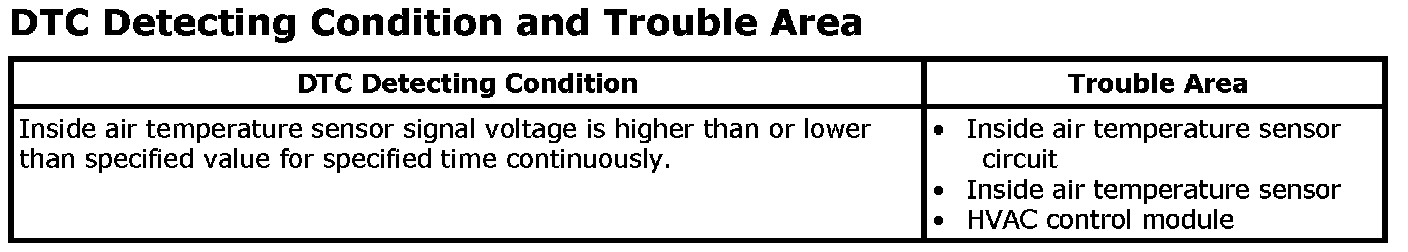

DTC B1502: Inside Air Temperature Sensor Circuit Malfunction

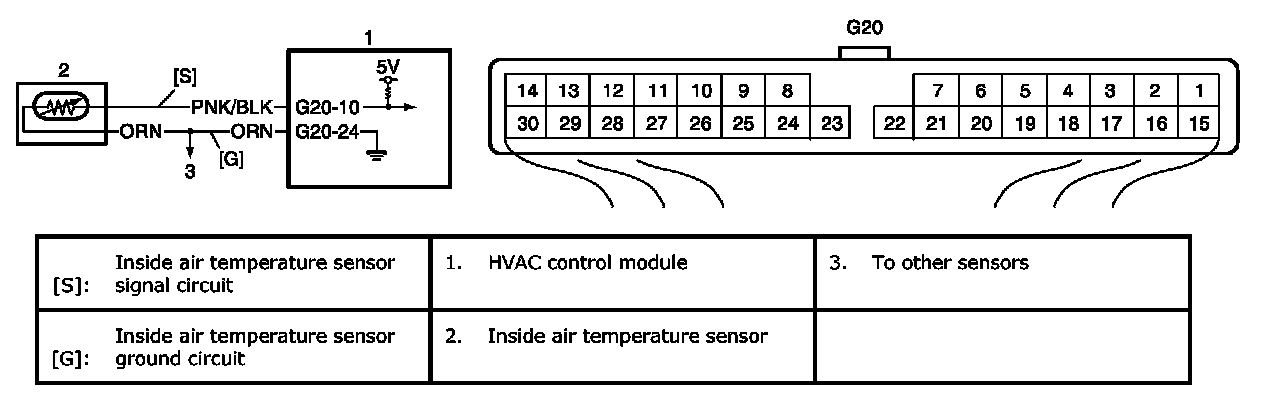

Wiring Diagram

Wiring Diagram:

DTC Troubleshooting

NOTE: When DTC B1503, B1504, B1511 and B1512 are indicated together, it is possible that sensor ground circuit is open.

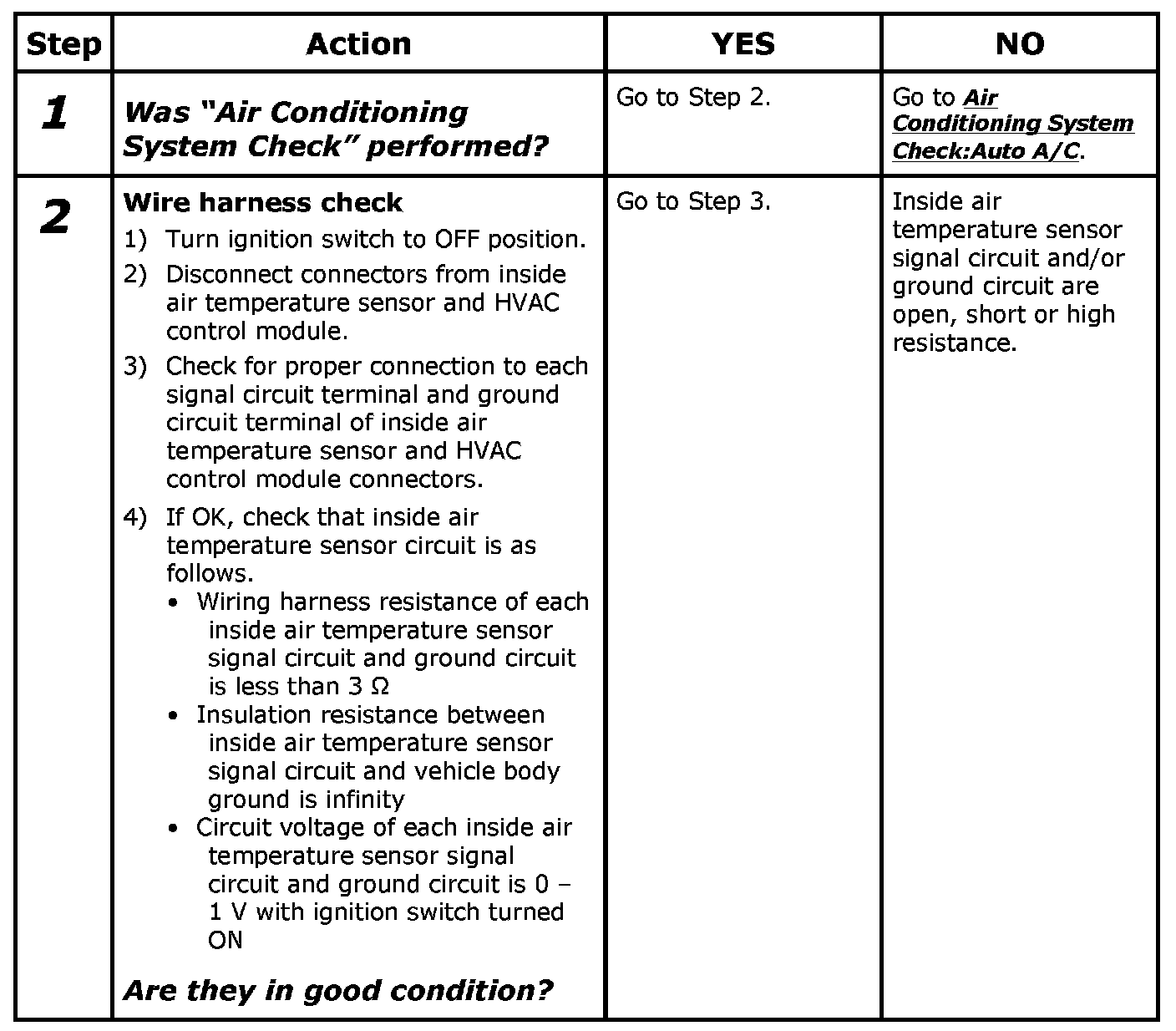

Step 1-2:

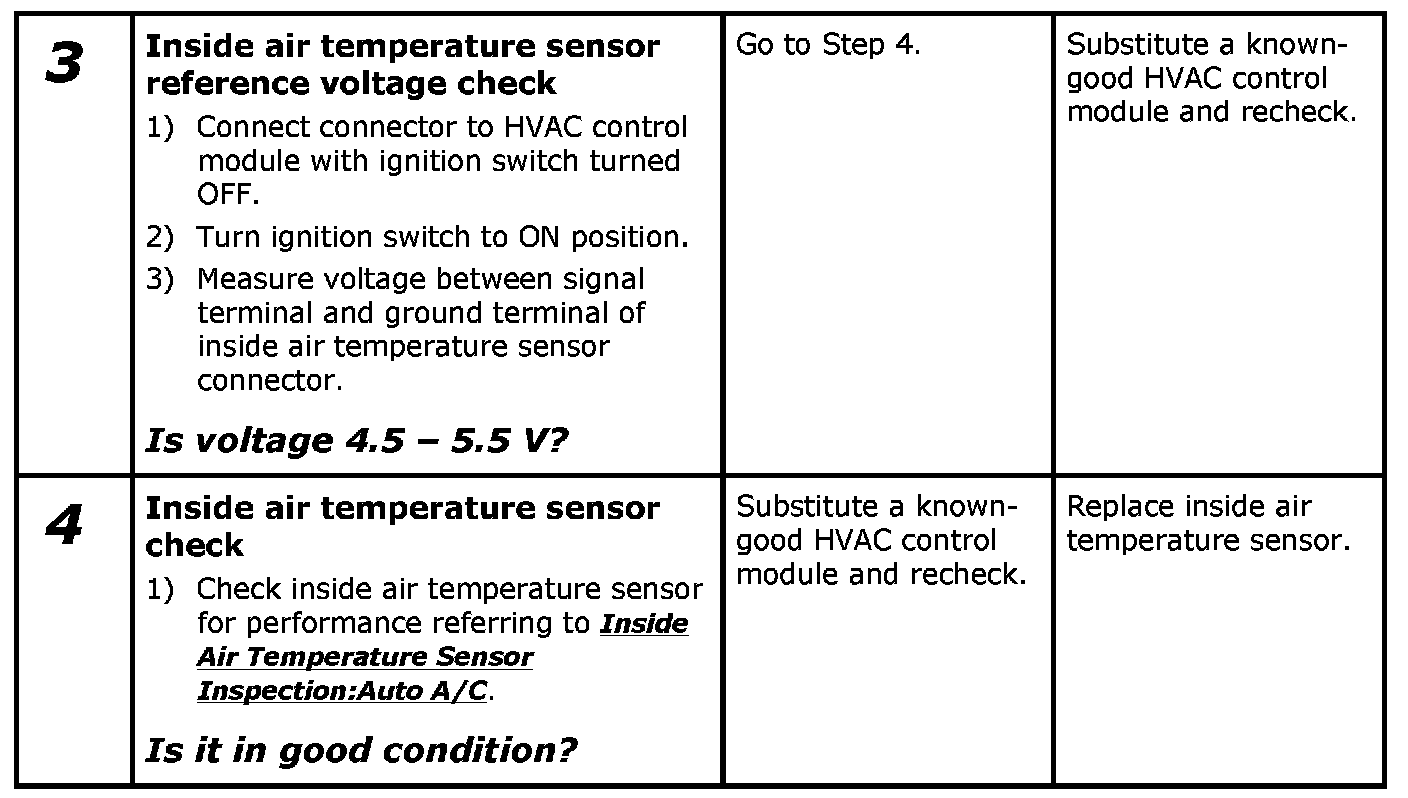

Step 3-4:
