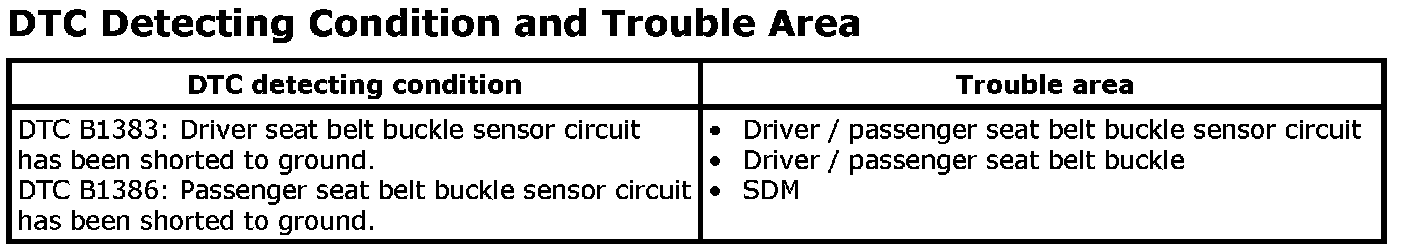

DTC B1383 / B1386: Seat Belt Buckle Sensor Circuit Shorted to Ground

(DTC B1383: Driver Seat Belt Buckle Sensor Circuit Shorted to Ground)
(DTC B1386: Passenger Seat Belt Buckle Sensor Circuit Shorted to Ground)

Wiring Diagram

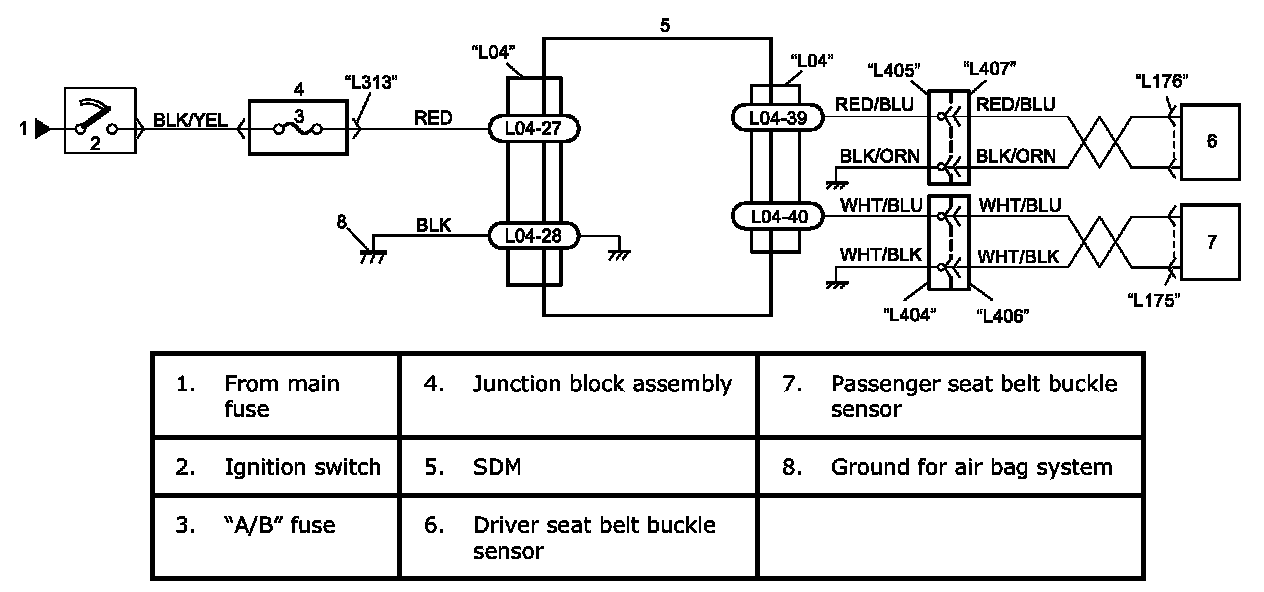

Wiring Diagram:

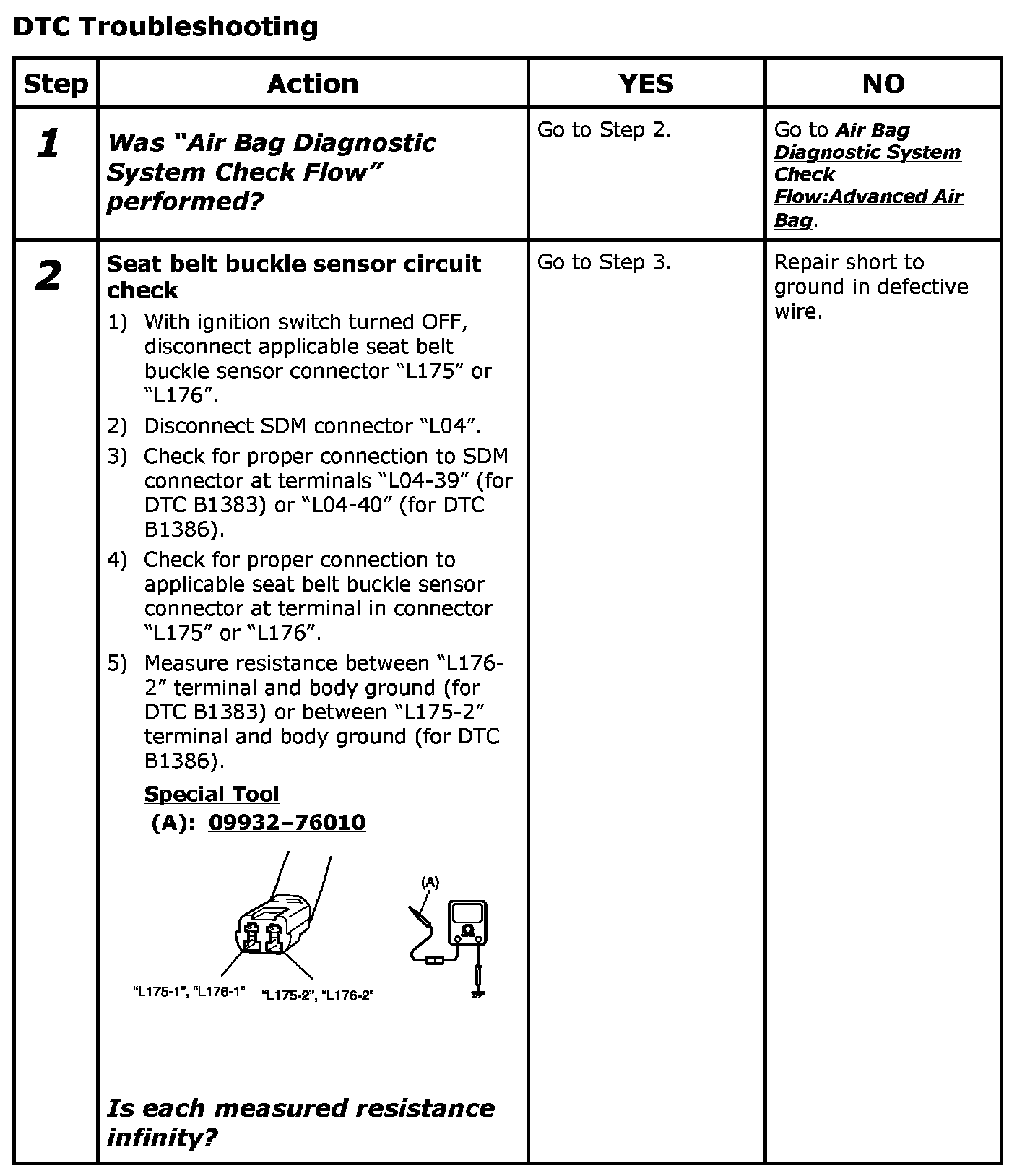

Step 1-2:

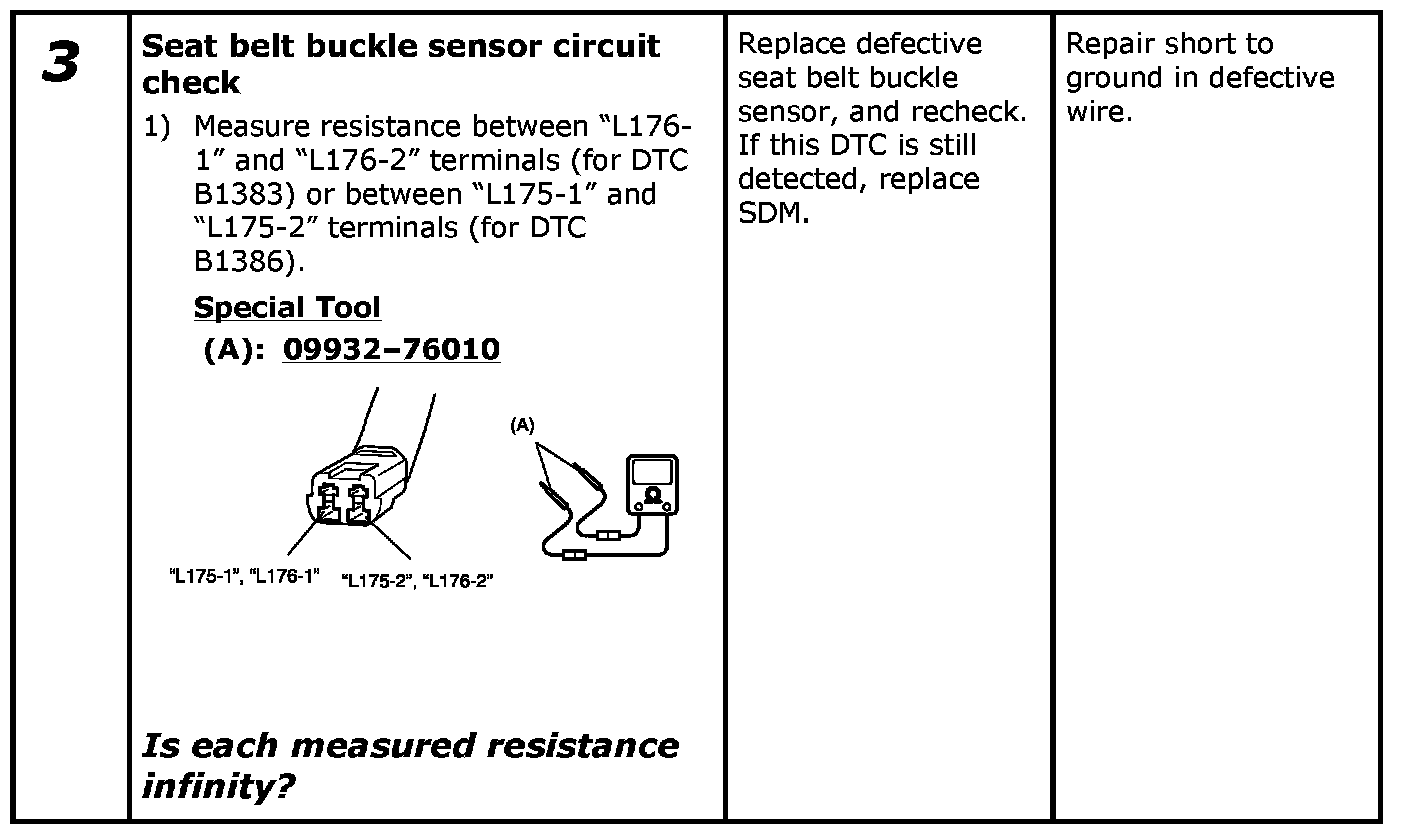

Step 3:

NOTE:
Upon completion of inspection and repair work, perform the following items.
- Reconnect all air bag system components and ensure all components are properly mounted.
- Clear DTCs referring to DTC Clearance:Advanced Air Bag, if any. DTC Clearance
- Repeat Air Bag Diagnostic System Check:Advanced Air Bag Air Bag Diagnostic System Check to confirm that the trouble has been corrected.
