B1373

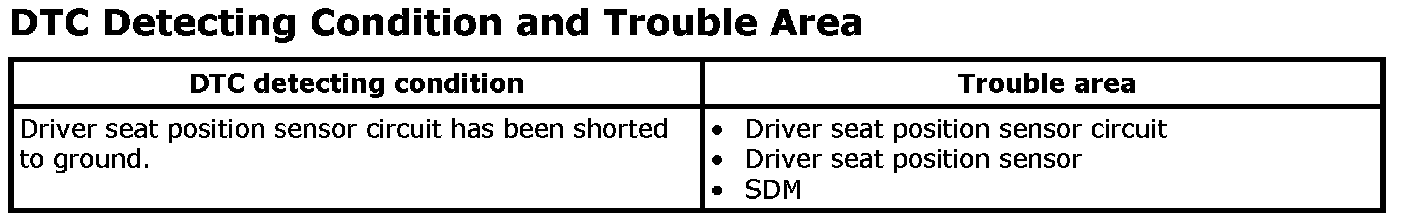

DTC B1373: Driver Seat Position Sensor Circuit Shorted to Ground

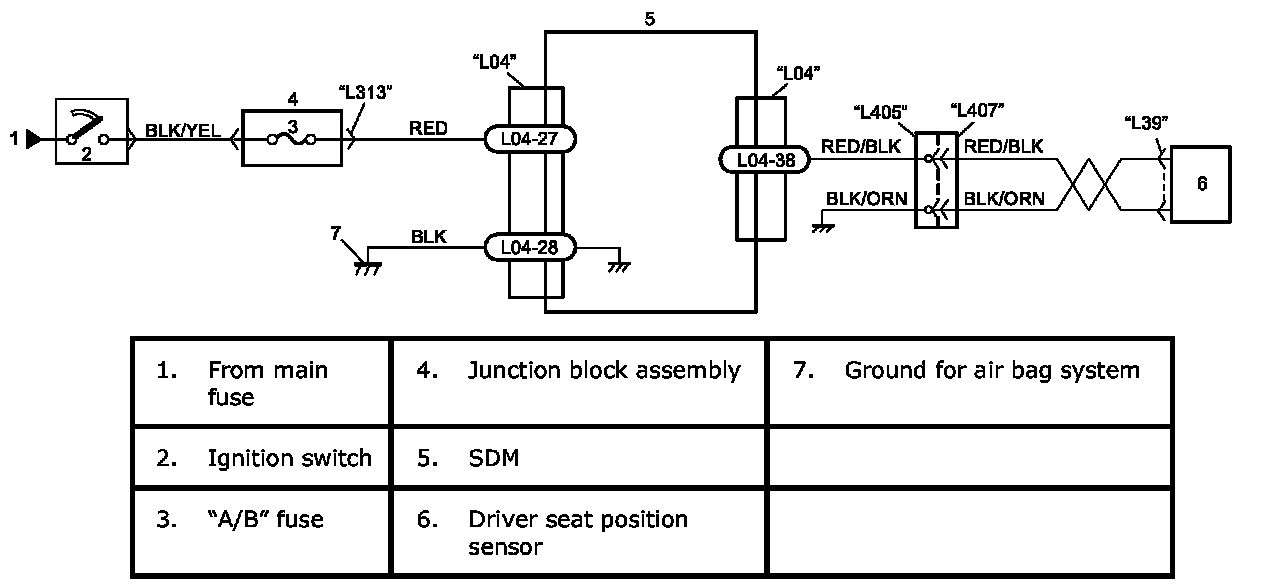

Wiring Diagram

Wiring Diagram:

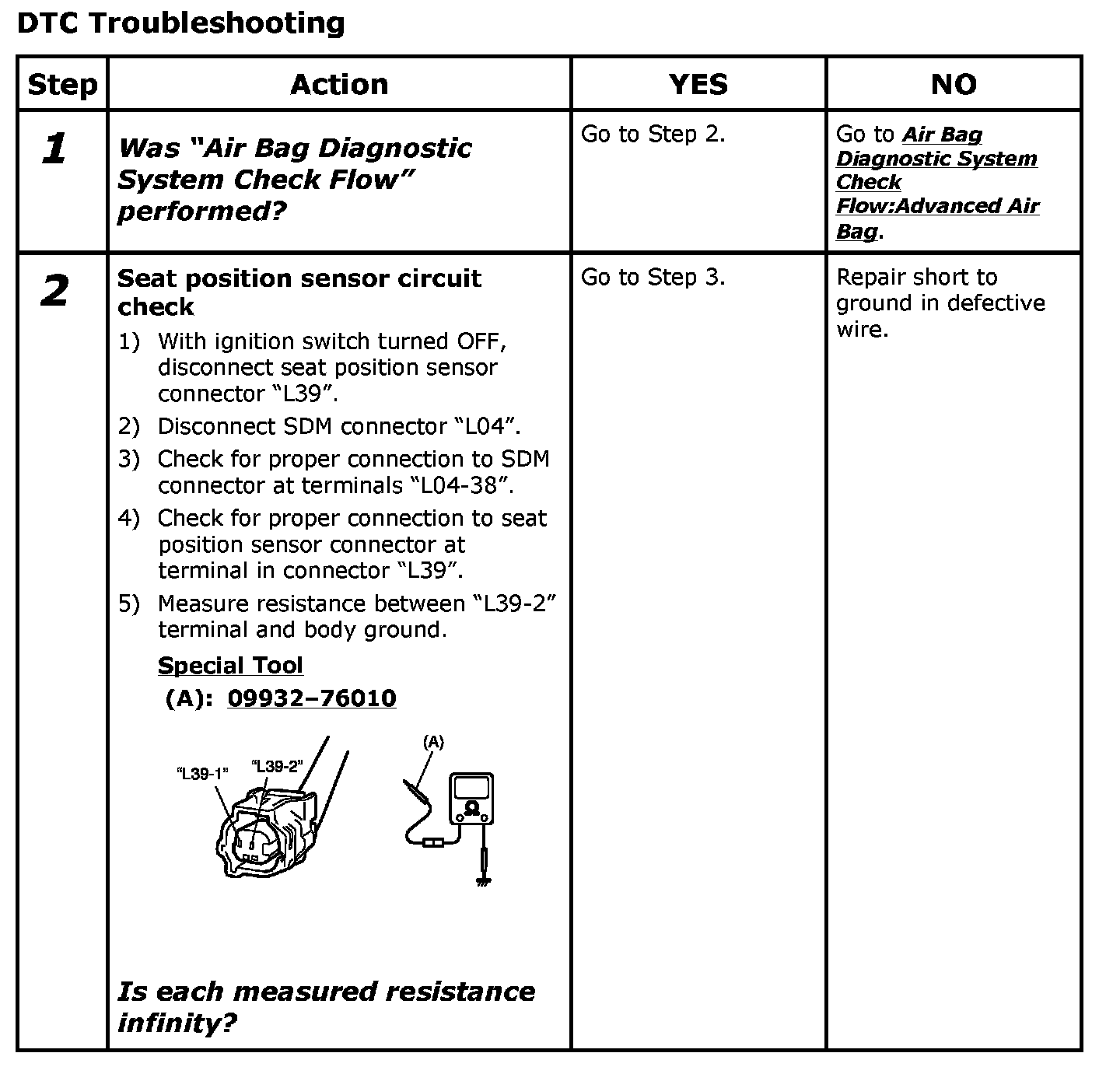

Step 1-2:

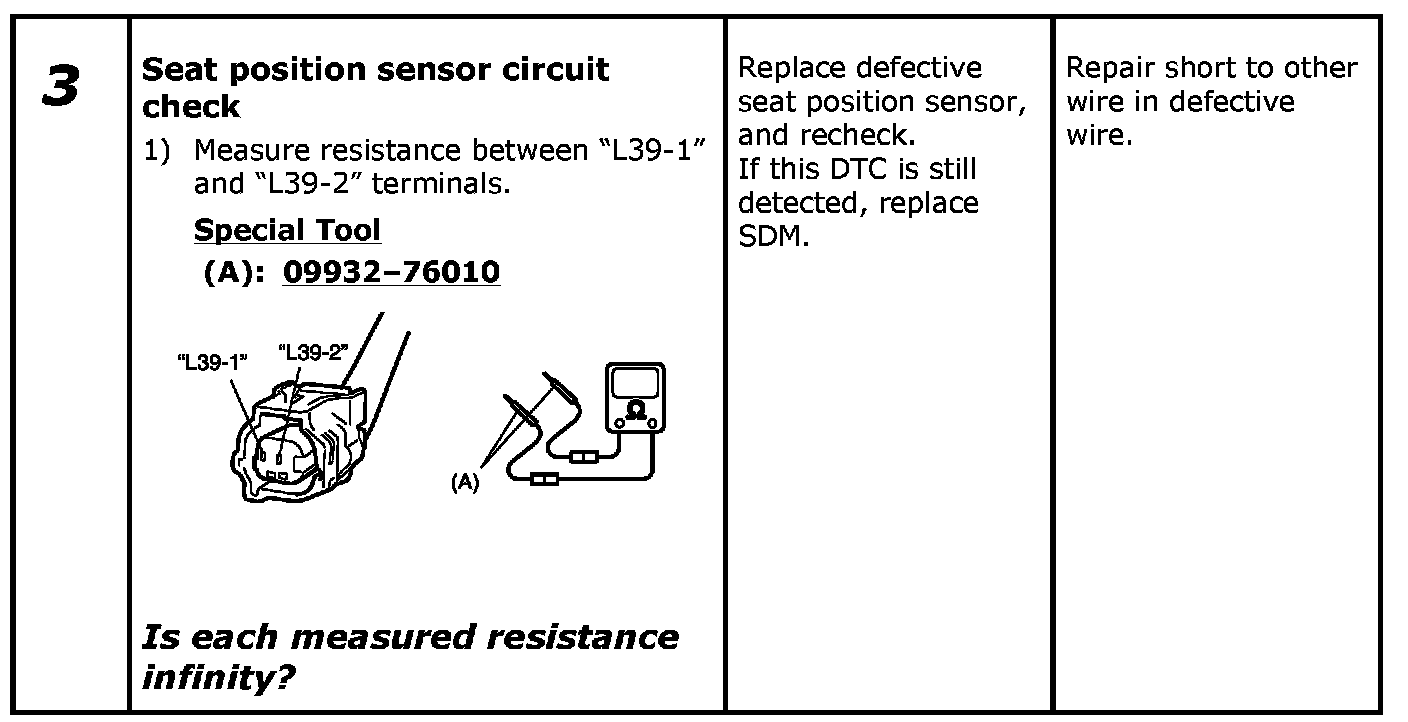

Step 3:

NOTE:
Upon completion of inspection and repair work, perform the following items.
- Reconnect all air bag system components and ensure all components are properly mounted.
- Clear DTCs referring to DTC Clearance:Advanced Air Bag if any. DTC Clearance
- Repeat Air Bag Diagnostic System Check:Advanced Air Bag Air Bag Diagnostic System Check, to confirm that the trouble has been corrected.
