B1364

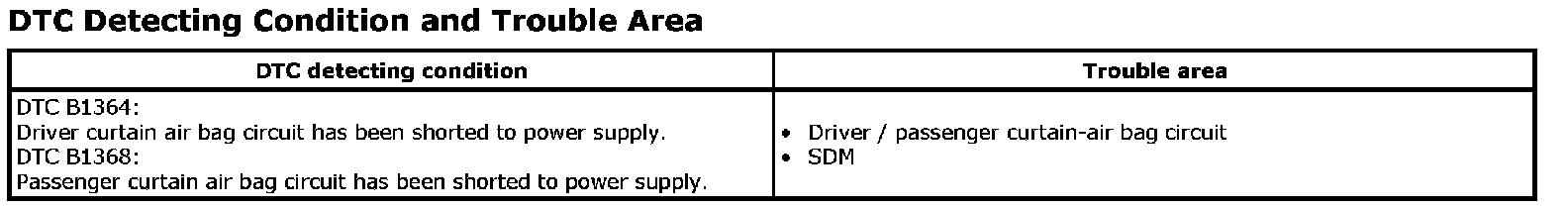

DTC B1364 / B1368: Curtain-Air Bag Circuit Shorted to Power Supply

(DTC B1364: Driver Curtain-Air Bag Circuit Shorted to Power Supply)
(DTC B1368: Passenger Curtain-Air Bag Circuit Shorted to Power Supply)

Wiring Diagram

Wiring Diagram:

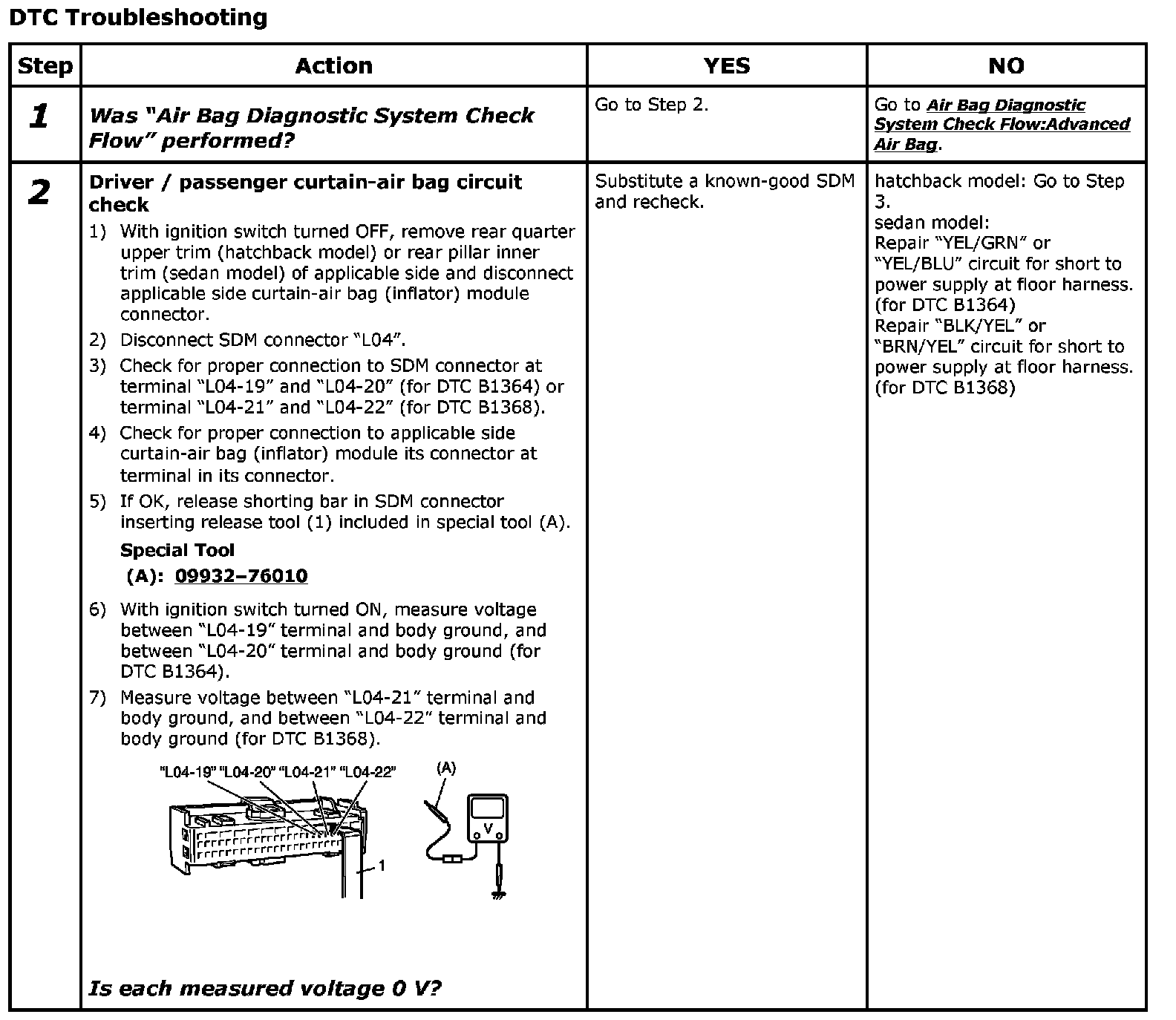

Step 1-2:

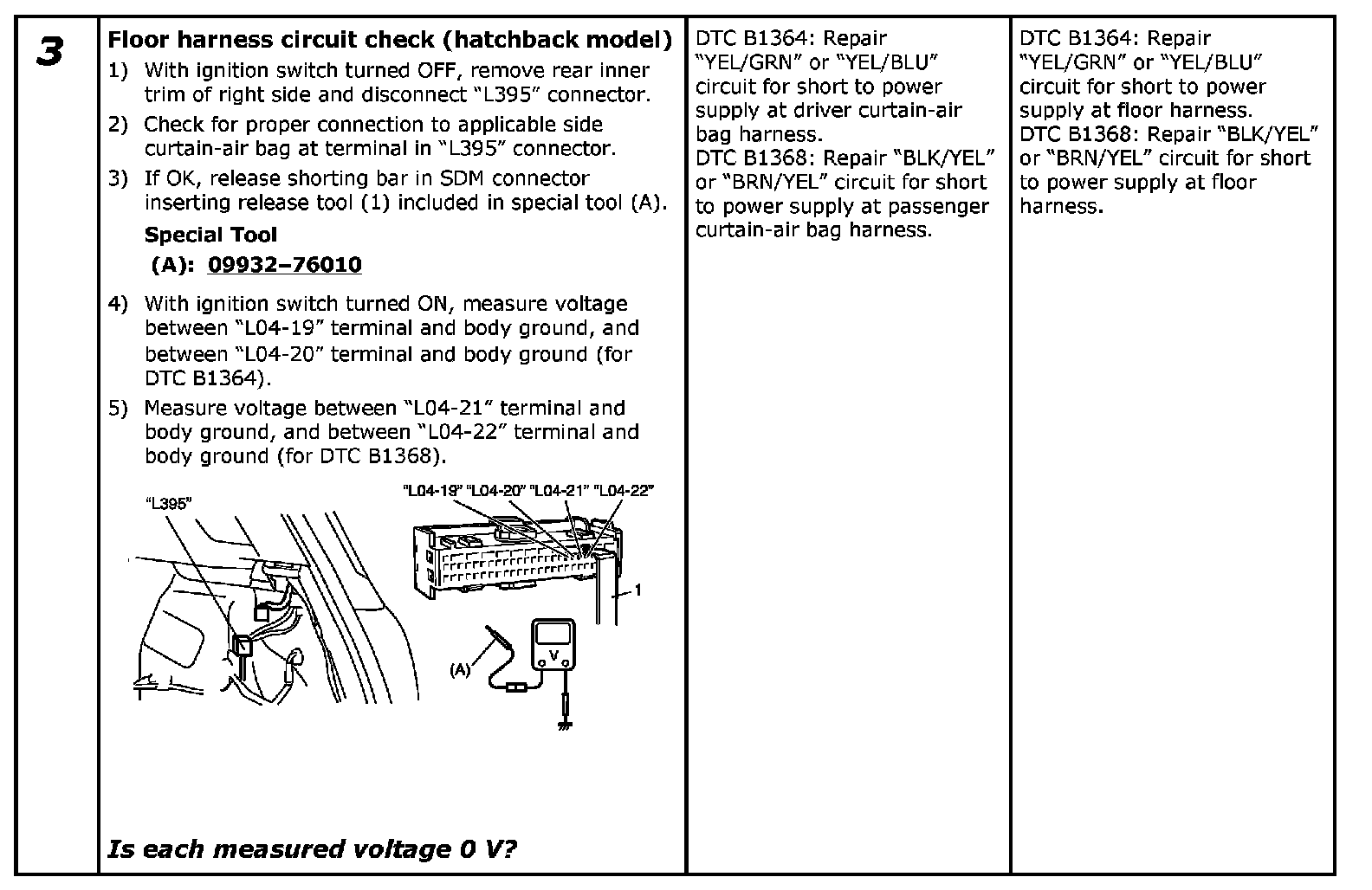

Step 3:

NOTE:
Upon completion of inspection and repair work, perform the following items.
- Reconnect all air bag system components, ensure all components are properly mounted.
- Clear DTCs referring to DTC Clearance:Advanced Air Bag, if any. DTC Clearance
- Repeat Air Bag Diagnostic System Check:Advanced Air Bag Air Bag Diagnostic System Check to confirm that the trouble has been corrected.
