B1362

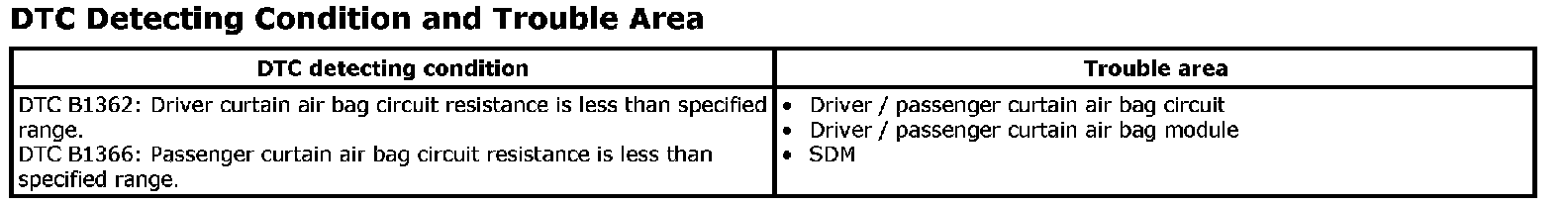

DTC B1362 / B1366: Curtain-Air Bag Circuit Low Resistance

(DTC B1362: Driver Curtain-Air Bag Circuit Low Resistance)
(DTC B1366: Passenger Curtain-Air Bag Circuit Low Resistance)

Wiring Diagram

Wiring Diagram:

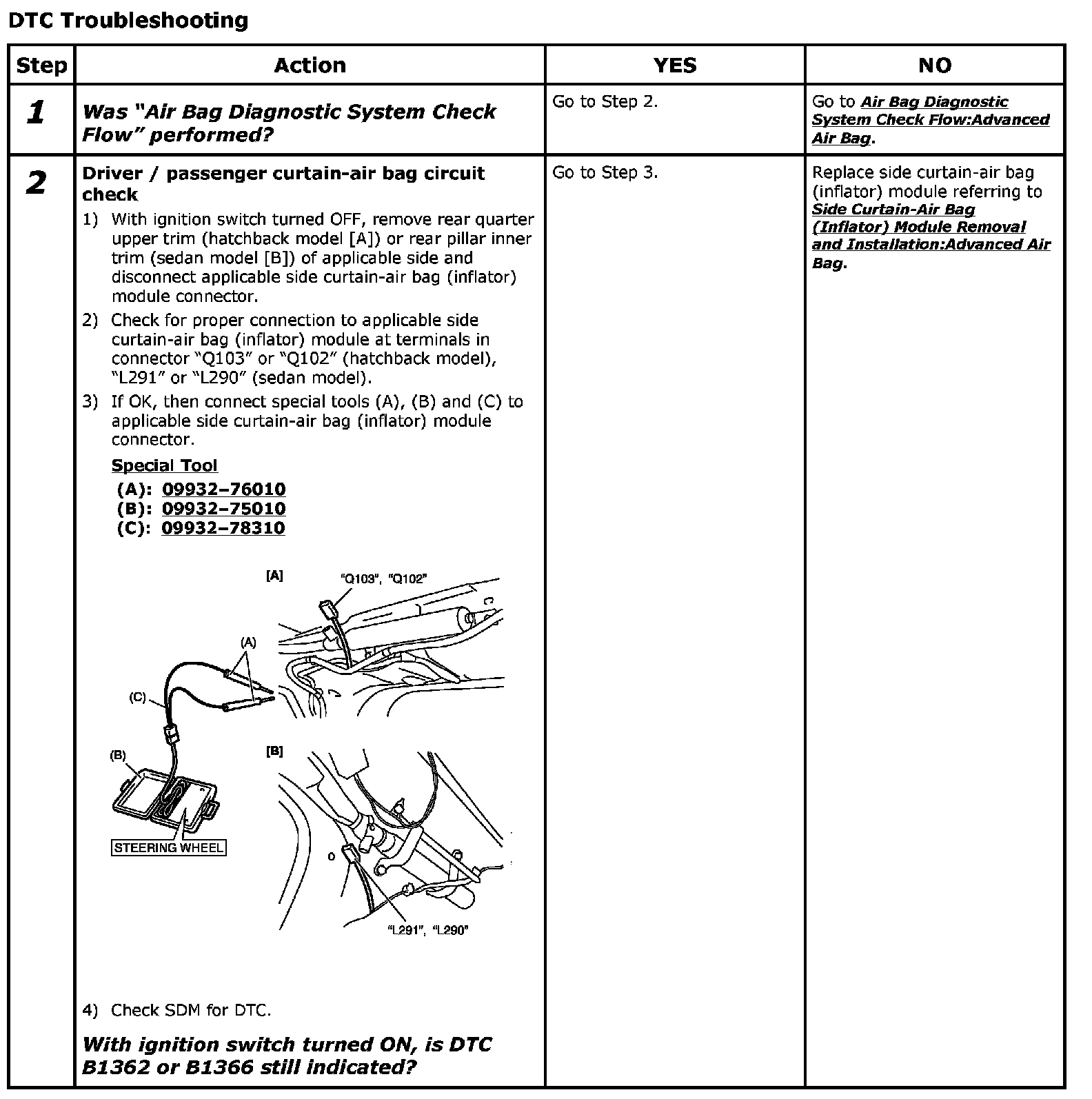

Step 1-2:

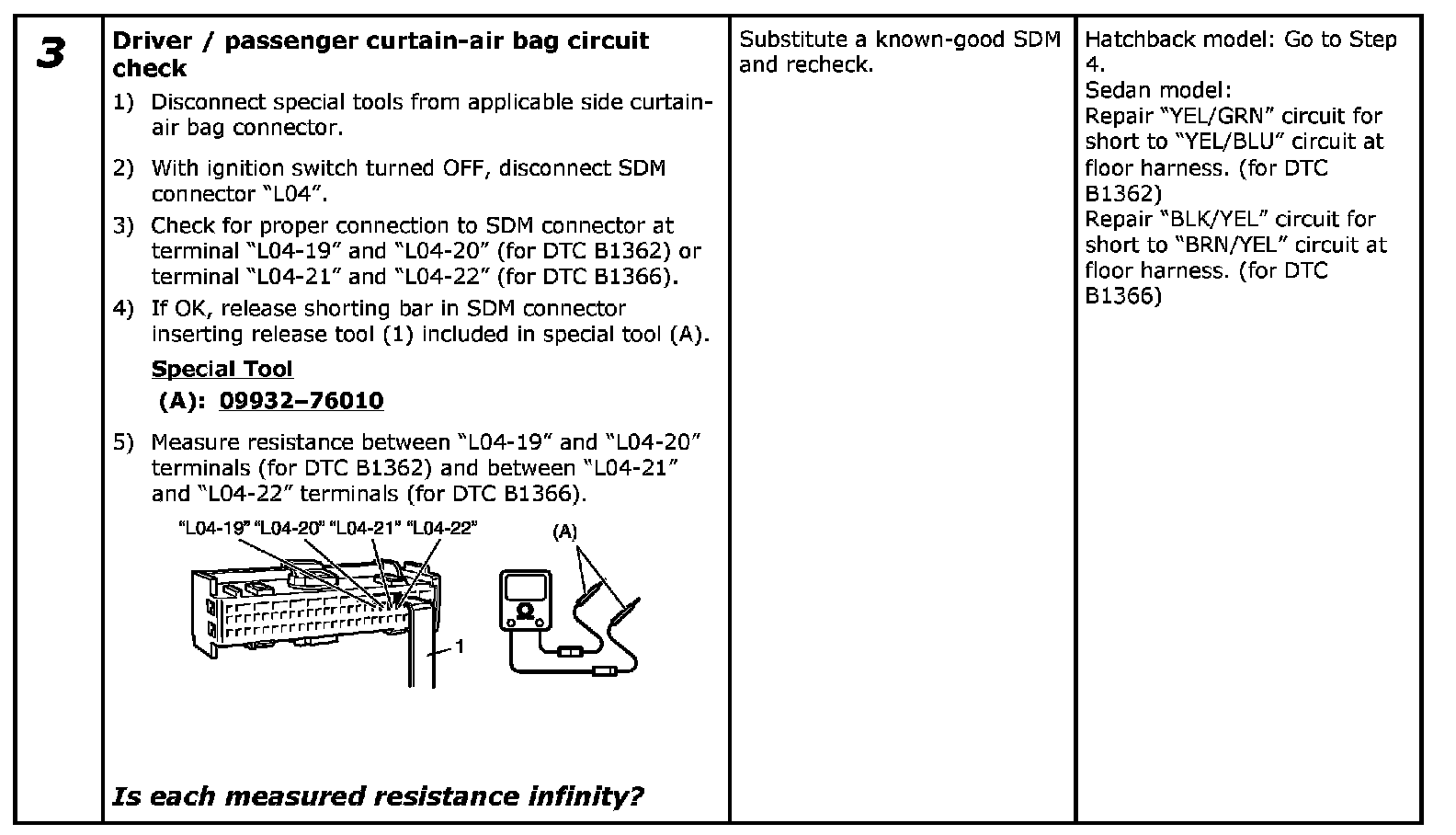

Step 3:

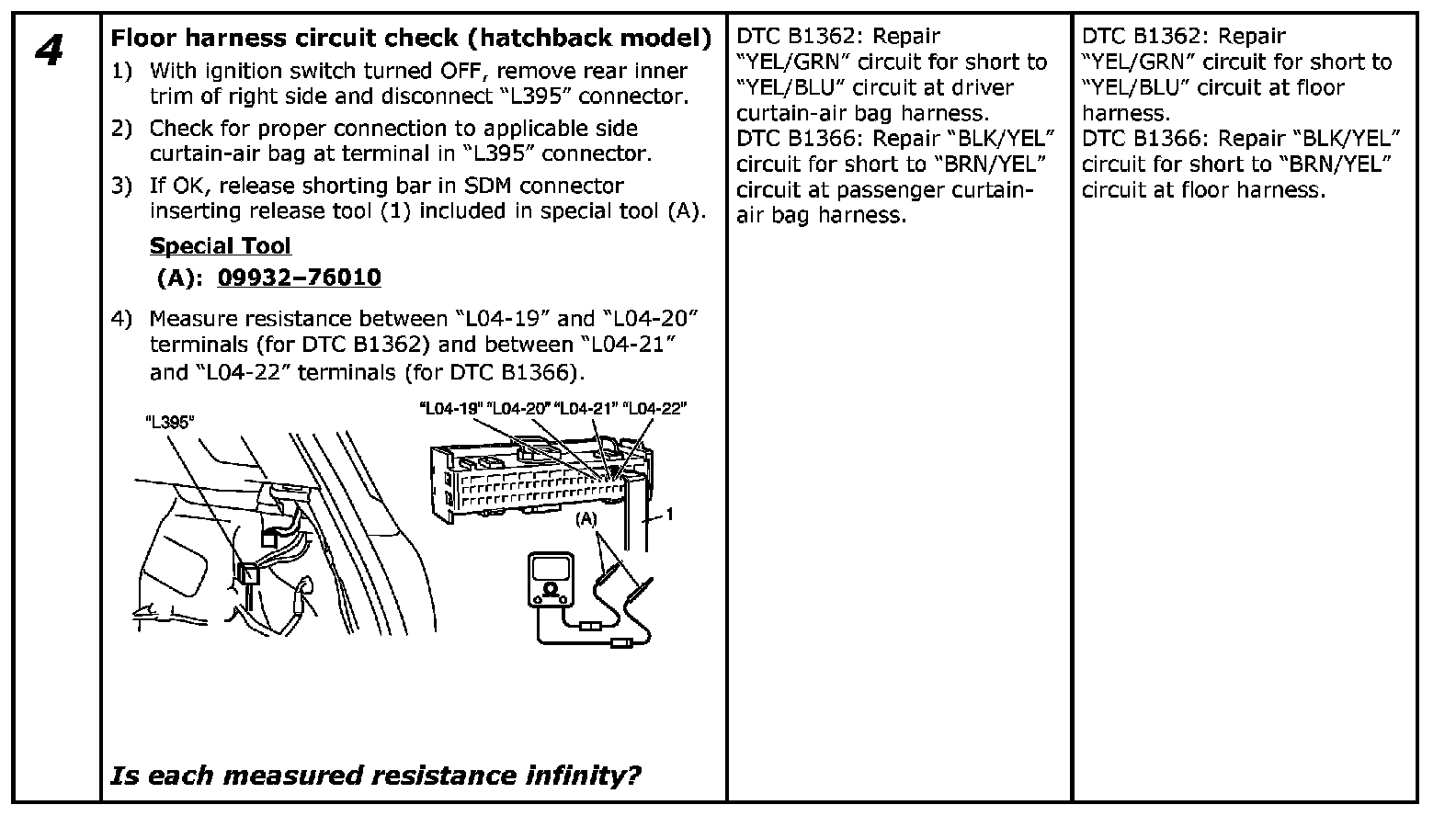

Step 4:

NOTE:
Upon completion of inspection and repair work, perform the following items.
- Reconnect all air bag system components, ensure all components are properly mounted.
- Clear DTCs referring to DTC Clearance:Advanced Air Bag, if any. DTC Clearance
- Repeat Air Bag Diagnostic System Check:Advanced Air Bag Air Bag Diagnostic System Check to confirm that the trouble has been corrected.
