B1316

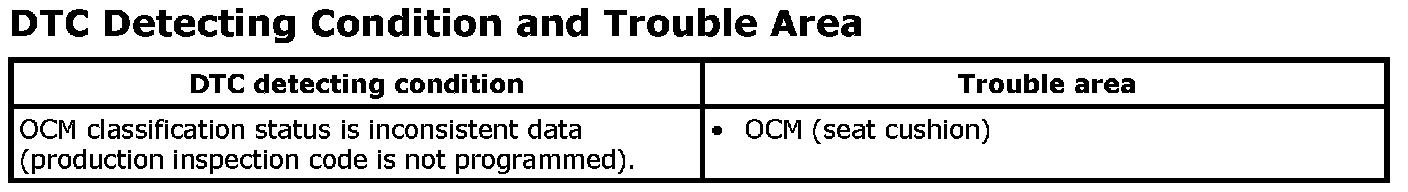

DTC B1316: OCM Classification Status Error






DTC Troubleshooting

1. Turn ignition switch OFF.
2. Replace seat cushion built in OCM with sensor mat referring to Seat Cushion Built in OCM with Sensor Mat Removal and Installation:Advanced Air Bag.

NOTE:
Upon completion of inspection and repair work, perform the following items.
- Reconnect all air bag system components and ensure all components are properly mounted.
- Clear DTCs referring to DTC Clearance:Advanced Air Bag, if any. DTC Clearance
- Repeat Air Bag Diagnostic System Check:Advanced Air Bag Air Bag Diagnostic System Check to confirm that the trouble has been corrected.
