B1142

DTC B1141 / B1142 (No. 1141 / 1142): Outside Air Temperature (Ambient Temp.) Sensor Circuit Malfunction

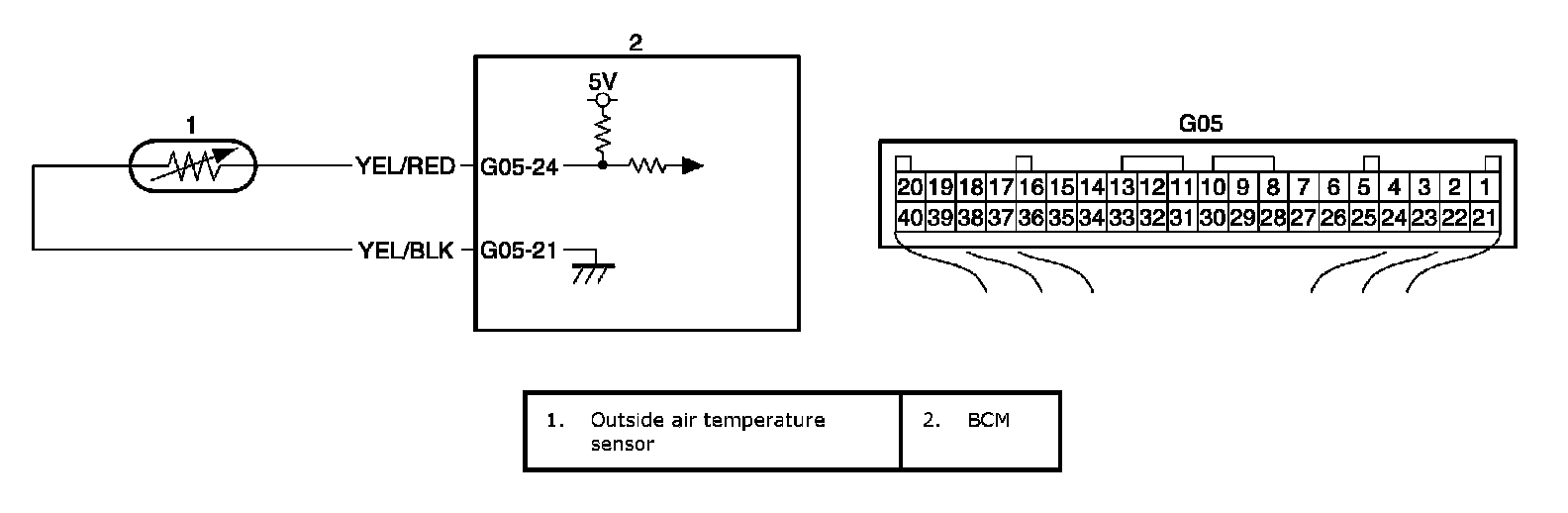

Wiring Diagram

Wiring Diagram:

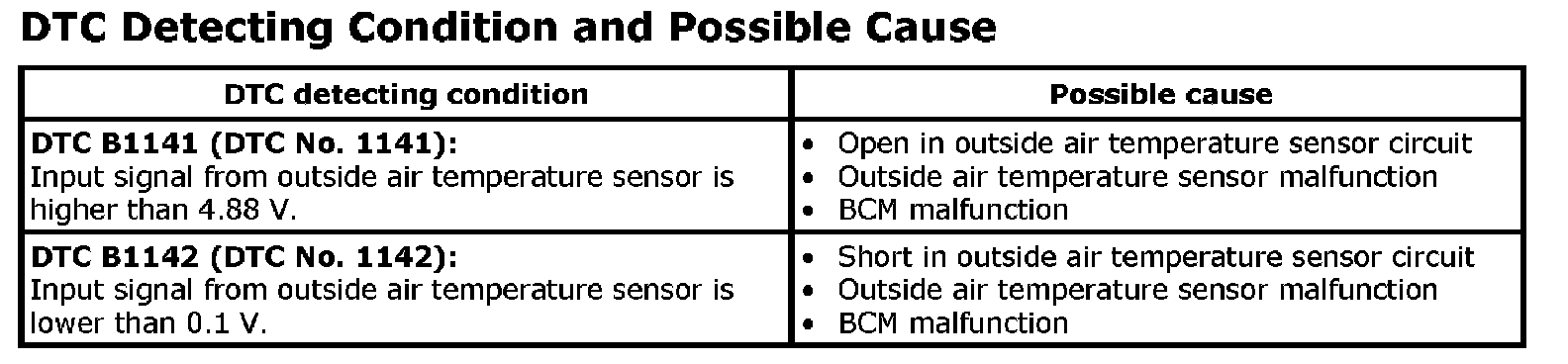

DTC Detecting Condition and Possible Cause






Flow Test Description
Step 1: Check whether malfunction is in outside air temperature sensor.
Step 2: Check outside air temperature sensor circuit.

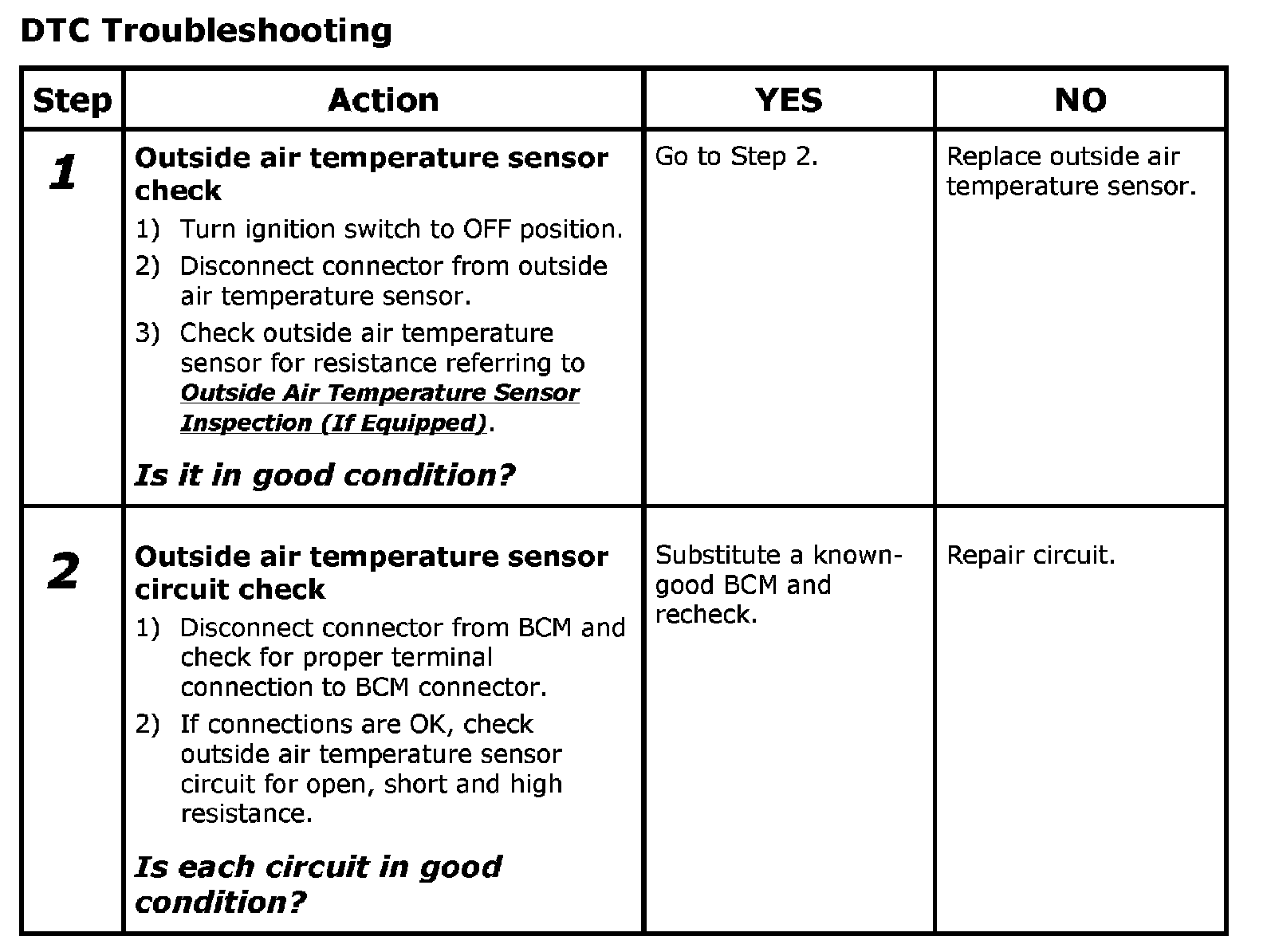

DTC Troubleshooting

step 1-2:
