B1076

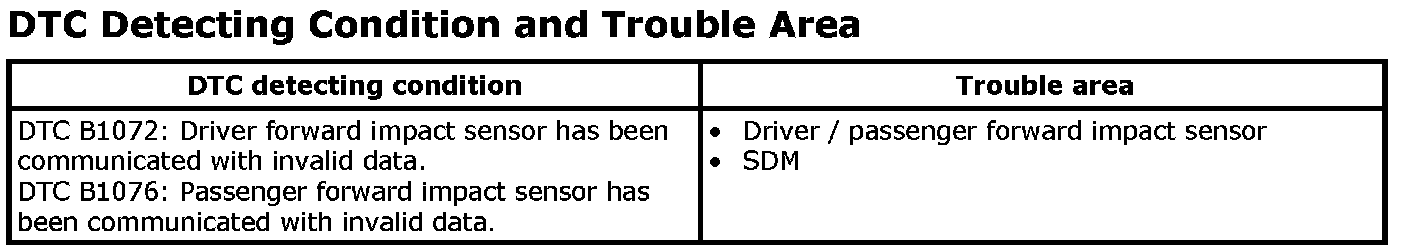

DTC B1072 / B1076: Forward Impact-Sensor Communication DATA Invalid

(DTC B1072: Driver Forward Impact-Sensor Communication DATA Invalid)
(DTC B1076: Passenger Forward Impact-Sensor Communication DATA Invalid)

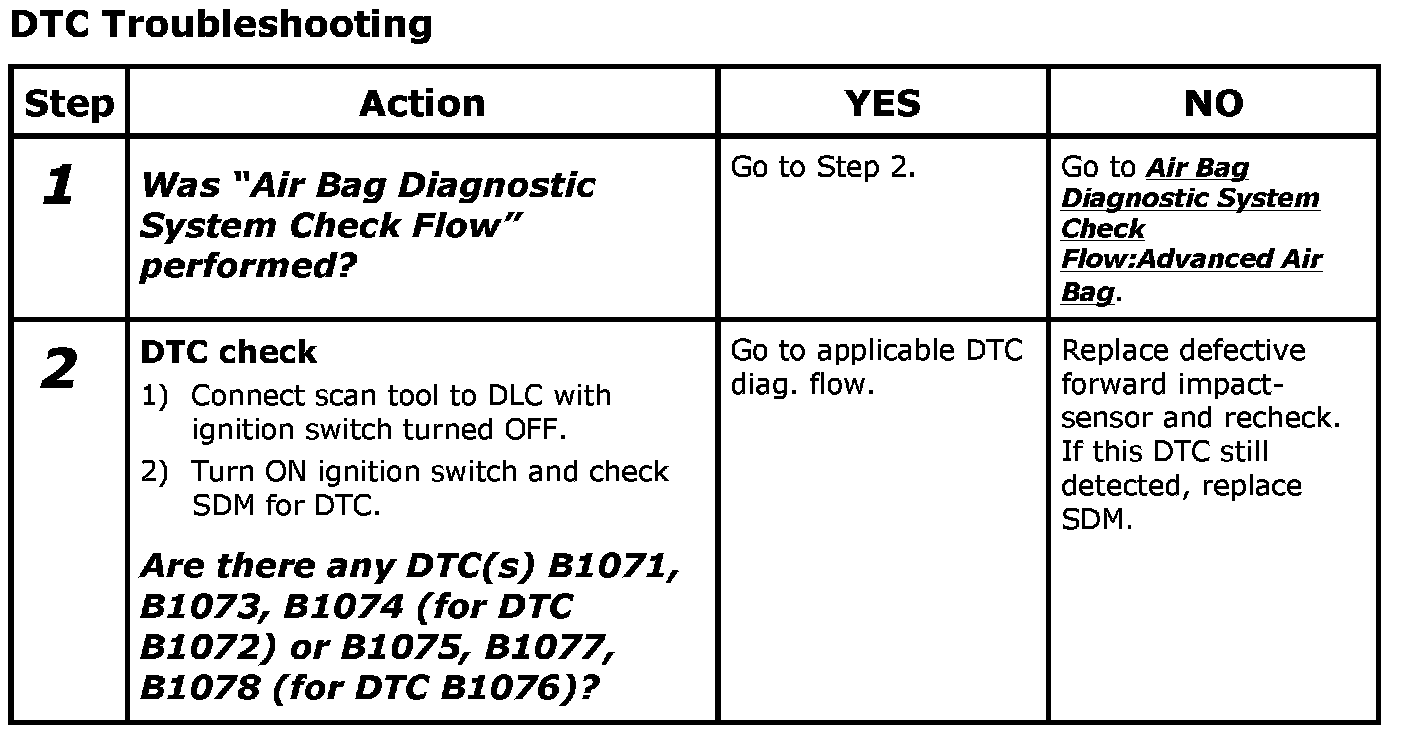

Step 1-2:

NOTE:
Upon completion of inspection and repair work, perform the following items.
- Reconnect all air bag system components and ensure all components are properly mounted.
- Clear DTCs referring to DTC Clearance:Advanced Air Bag, if any. DTC Clearance
- Repeat Air Bag Diagnostic System Check:Advanced Air Bag Air Bag Diagnostic System Check to confirm that the trouble has been corrected.
