B1046

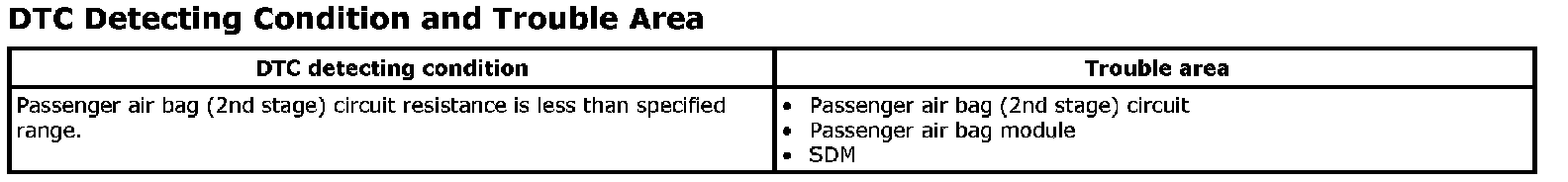

DTC B1046: Passenger Air Bag (2nd Stage) Circuit Low Resistance

Wiring Diagram

Wiring Diagram:

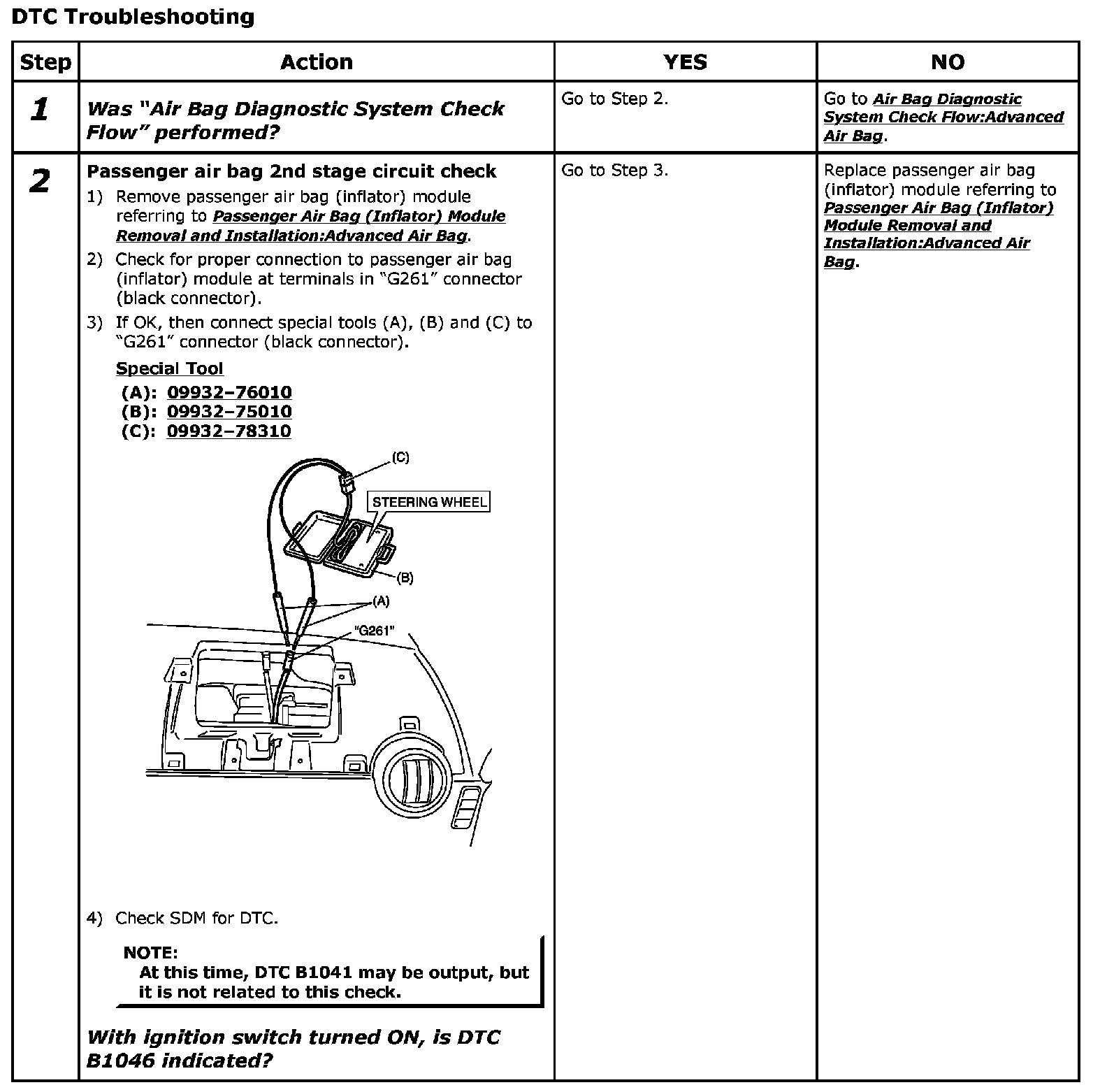

Step 1-2:

Step 3-4:

NOTE:
Upon completion of inspection and repair work, perform the following items.
- Reconnect all air bag system components and ensure all components are properly mounted.
- Clear DTCs referring to DTC Clearance:Advanced Air Bag, if any.DTC Clearance
- Repeat Air Bag Diagnostic System Check:Advanced Air Bag Air Bag Diagnostic System Check to confirm that the trouble has been corrected.
