Advanced Air Bag

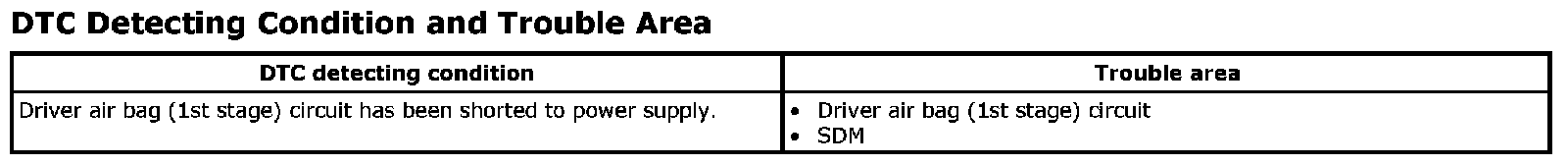

DTC B1034: Driver Air Bag (1st Stage) Circuit Shorted to Power Supply

Wiring Diagram

Wiring Diagram:

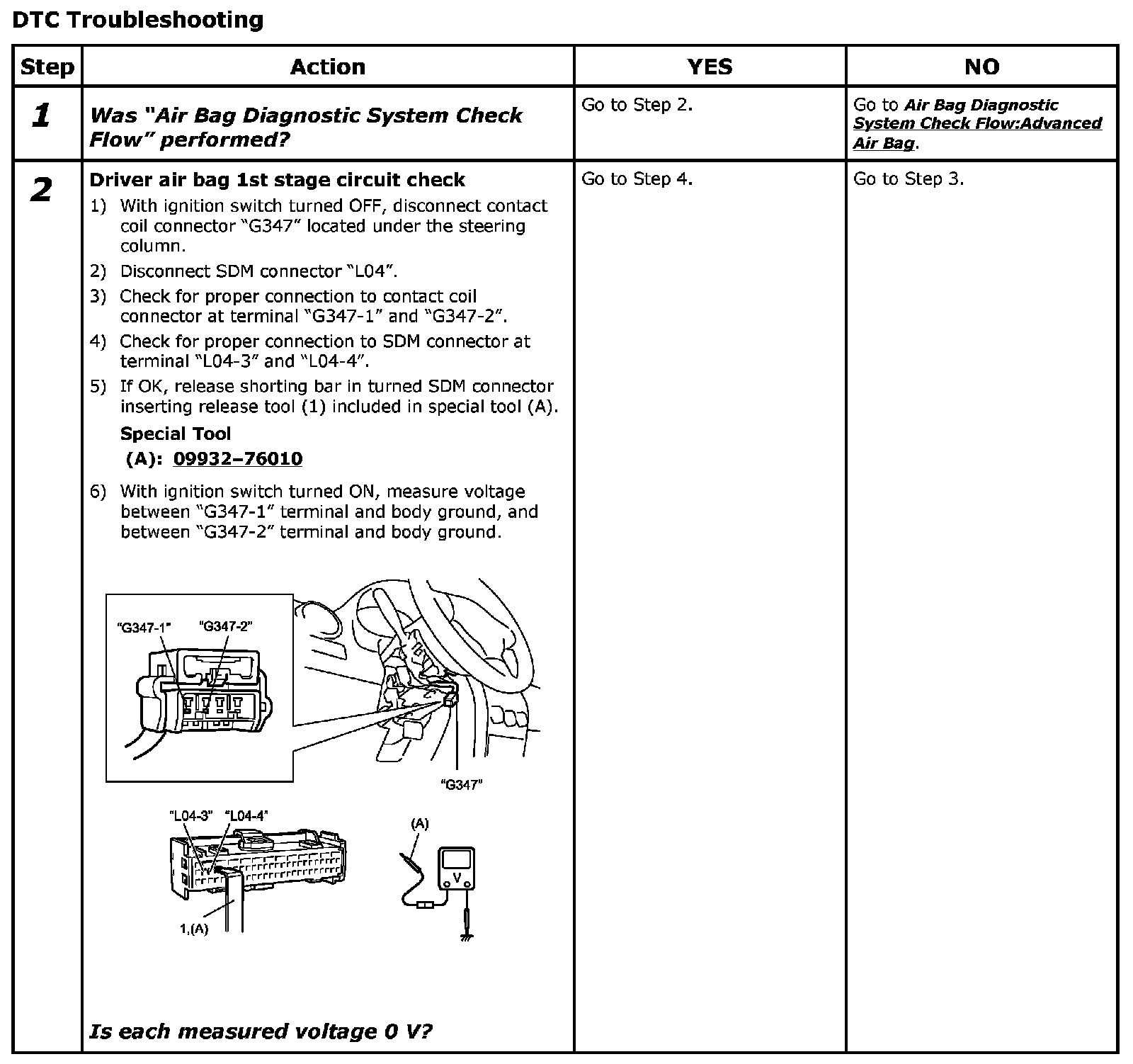

Step 1-2:

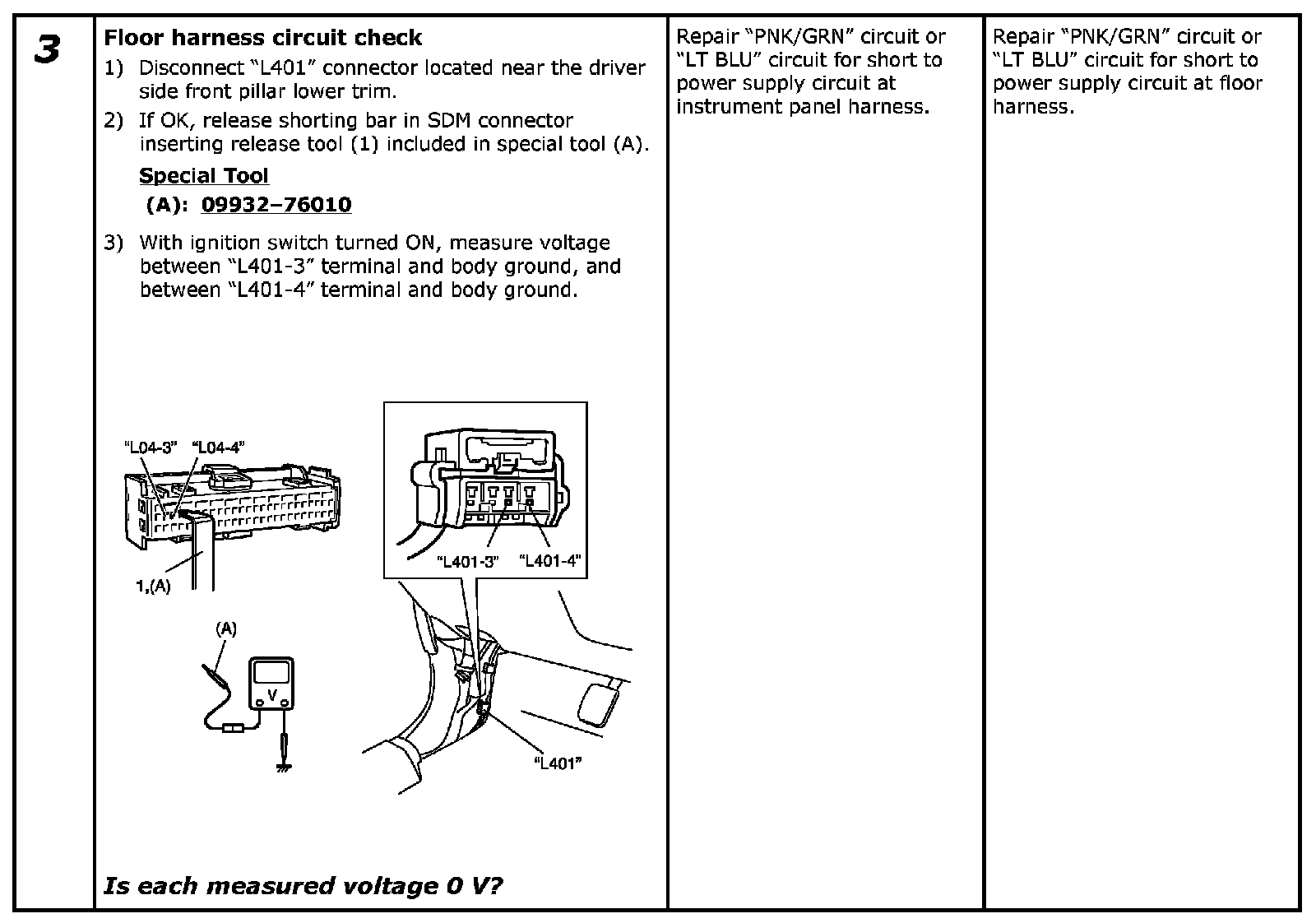

Step 3:

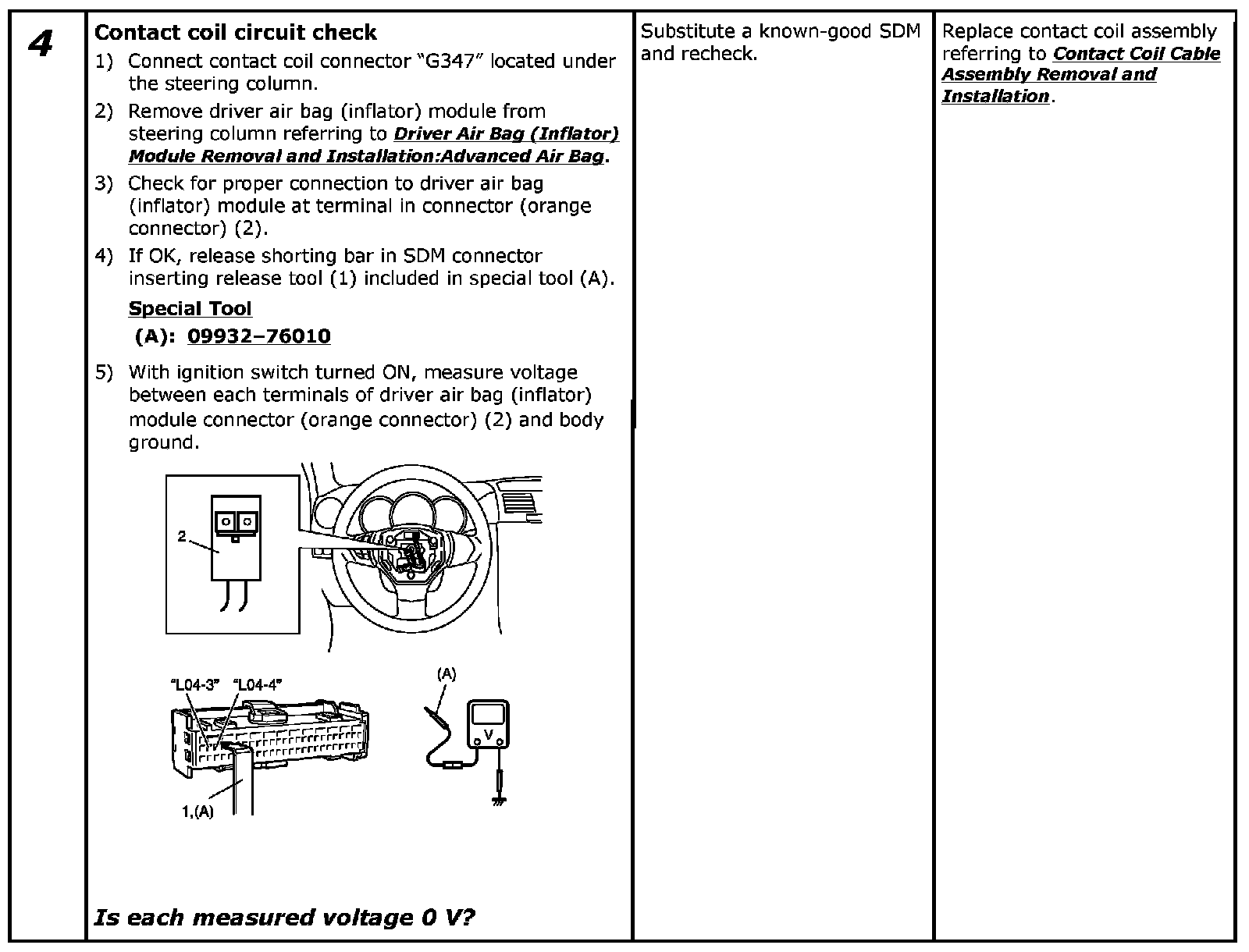

Step 4:

NOTE:
Upon completion of inspection and repair work, perform the following items.
- Reconnect all air bag system components and ensure all components are properly mounted.
- Clear DTCs referring to DTC Clearance:Advanced Air Bag, if any. DTC Clearance
- Repeat Air Bag Diagnostic System Check:Advanced Air Bag� Air Bag Diagnostic System Check to confirm that the trouble has been corrected.
