Except Advanced Air Bag
DTC B1031: Driver Air Bag (1st Stage) Circuit High ResistanceWiring Diagram
Wiring Diagram:

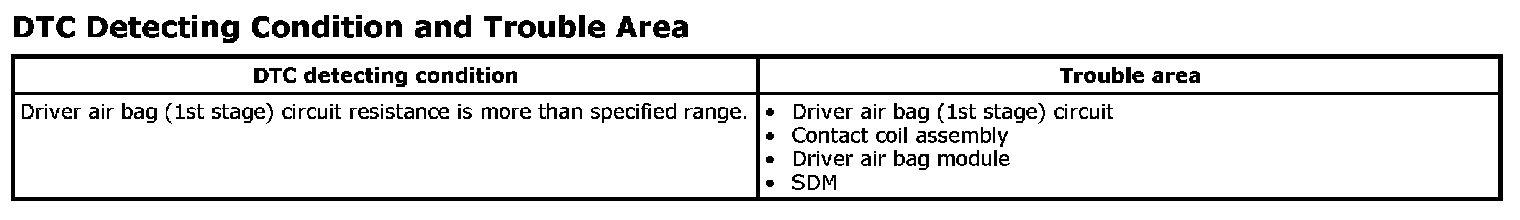

DTC Detecting Condition and Trouble Area

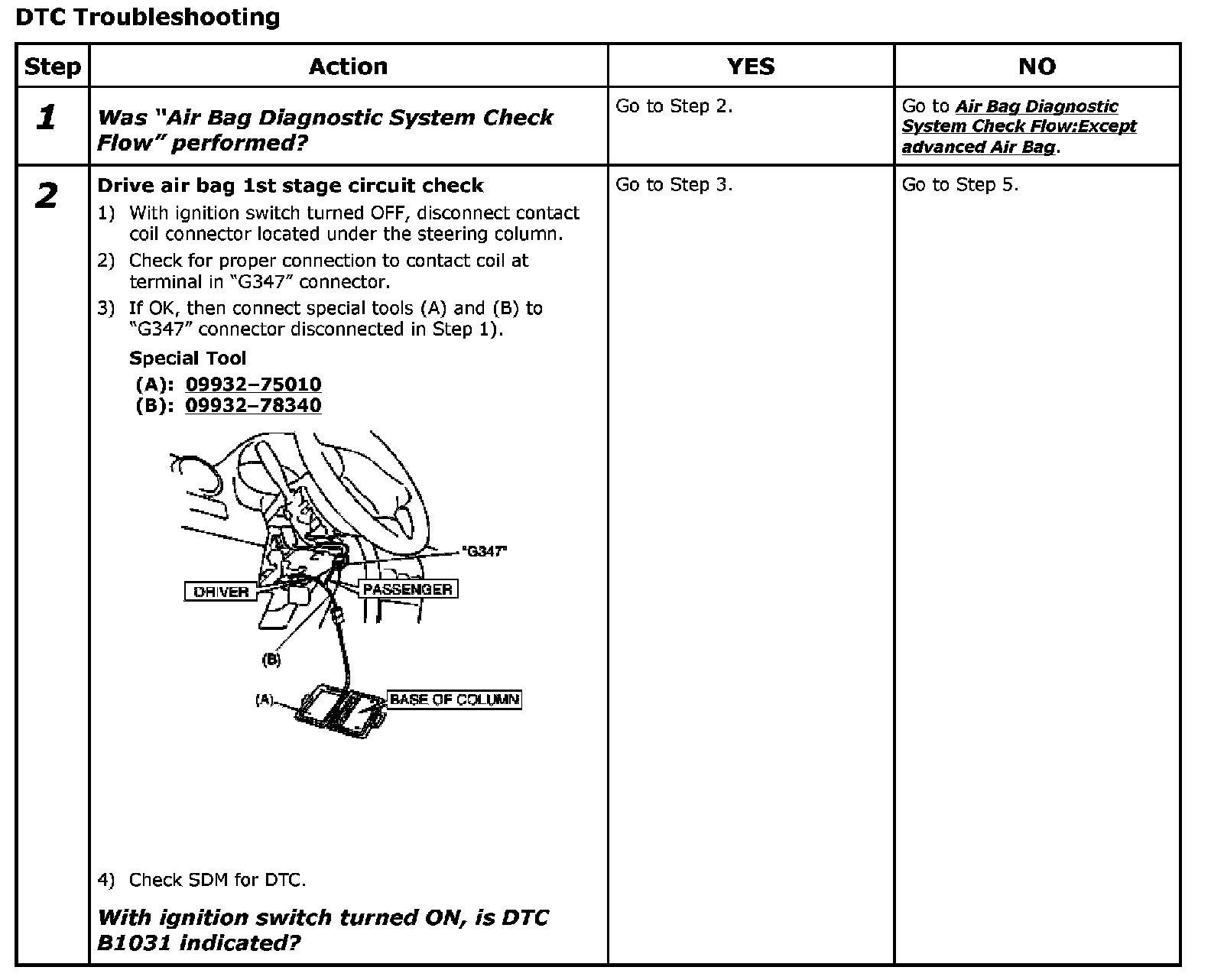

DTC Troubleshooting
Step 1-2:

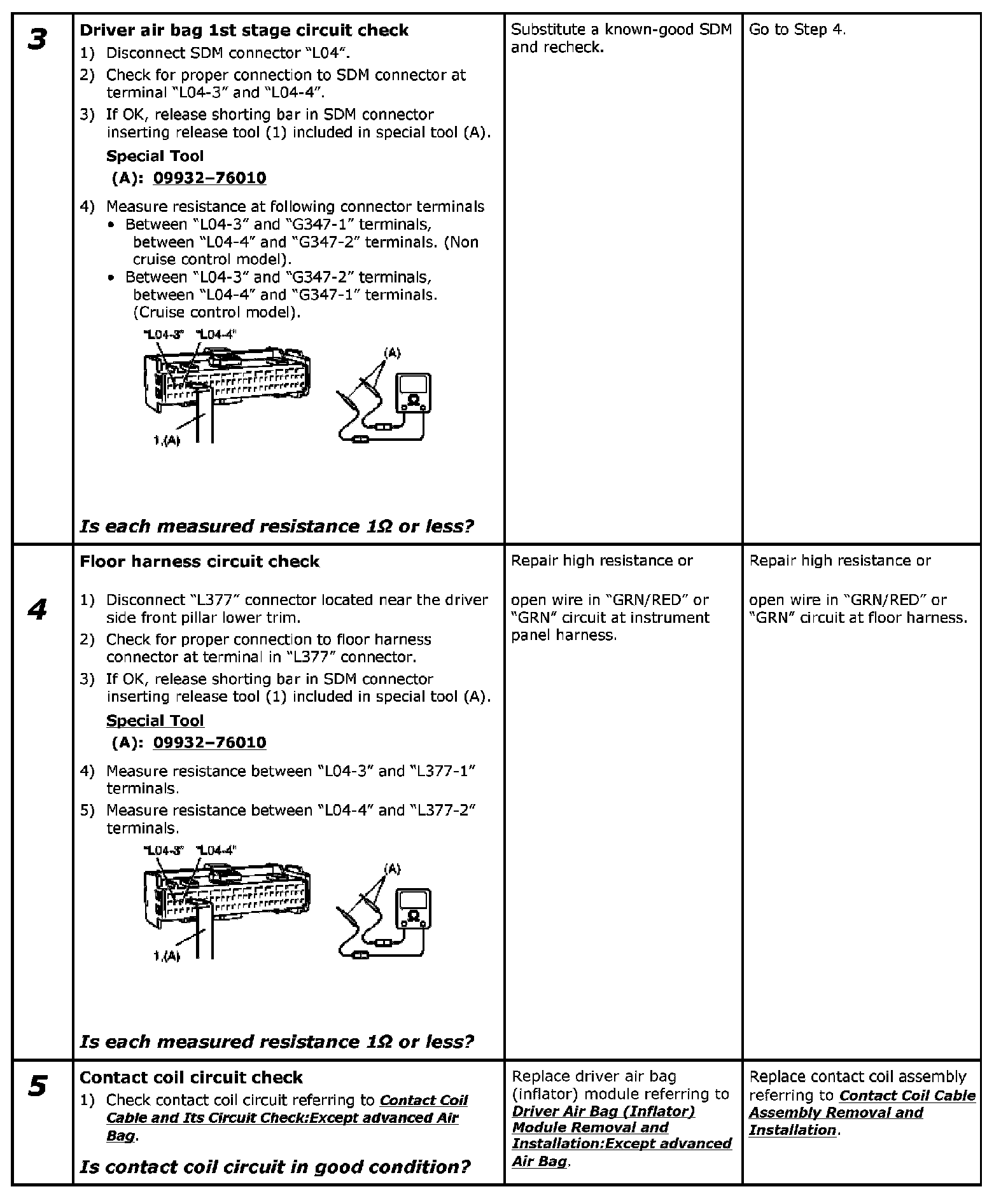

Step 3-5:
NOTE:
Upon completion of inspection and repair work, perform the following items.
- Reconnect all air bag system components and ensure all components are properly mounted.
- Clear DTCs referring to DTC Clearance:Except advanced Air Bag, DTC Clearance if any.
- Repeat Air Bag Diagnostic System Check:Except advanced Air Bag Air Bag Diagnostic System Check to confirm that the trouble has been corrected.
